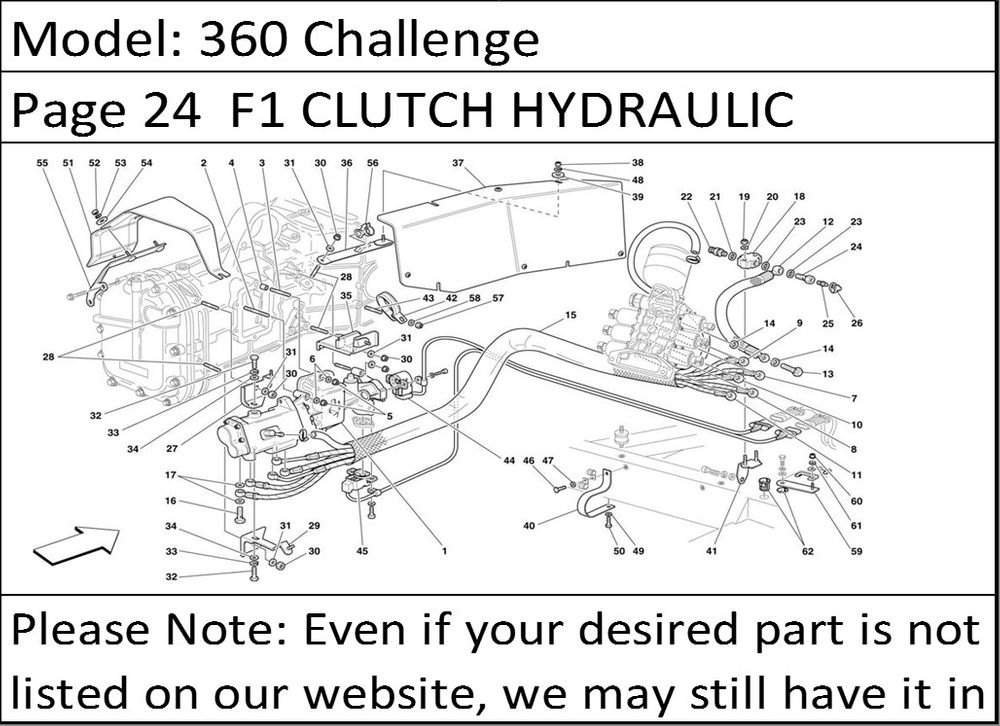

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
- | 181161 | F1 GEARBOX SYSTEM COMPONENTS KIT | 1 |
1 | 181160 | COMPLETE HYDRAULIC ACTUATOR | 1 |
2 | 11501024 | STUD | 4 |
3 | 11500724 | STUD | 2 |
4 | 103038 | CENTERING DOWEL | 2 |
5 | 132877 | NUT | 6 |
6 | 12601279 | WASHER | 6 |
7 | 179340 | PIPE (EV1) | 1 |
8 | 179342 | PIPE (EV2) | 1 |
9 | 179343 | PIPE (EV3) | 1 |
10 | 179344 | PIPE (EV4) | 1 |
11 | 179345 | PIPE (EV5) | 1 |
12 | 179348 | PIPE FROM PUMP TO BLOCK | 1 |
13 | 171454 | UNION | 6 |
14 | 10261060 | GASKET | 12 |
15 | 179346 | PROTECTION SHEATH | 1 |
16 | 171454 | UNION | 5 |
17 | 10261060 | GASKET | 10 |
18 | 175667 | BLOCK | 1 |
19 | 15896214 | NUT | 2 |
20 | 12601279 | WASHER | 2 |
21 | 171755 | WASHER | 1 |
22 | 70001184 | QUICK MALE COUPLING | 1 |
23 | 10261060 | GASKET | 2 |
24 | 171630 | UNION | 1 |
25 | 152954 | BLEEDER SCREW | 1 |
26 | 152955 | PROTECTION BOOT | 1 |
27 | 174257 | UPPER ACTUATOR SUPPORT BRACKET | 1 |
28 | 13516424 | STUD | 5 |
29 | 174260 | LOWER ACTUATOR SUPPORT BRACKET | 1 |
30 | 16100814 | NUT | 5 |
31 | 127496 | WASHER | 5 |
32 | 16043124 | SCREW | 2 |
33 | 127496 | WASHER | 2 |
34 | 10519624 | WASHER | 2 |
35 | 180807 | PIPES SUPPORTING BRACKET | 1 |
36 | 178724 | SHIELD SUPPORTING BRACKET | 1 |
37 | 177384 | SHIELD FOR ACTUATOR PROTECTION | 1 |
38 | 160472 | NUT | 4 |
39 | 12637824 | WASHER | 4 |
40 | 180782 | PIPES SUPPORTING BRACKET | 2 |
41 | 176142 | BLOCK SUPPORT BRACKET | 1 |
42 | 124034 | BRACKET WITH SHEATH | 1 |
43 | 13540724 | STUD | 1 |
44 | 181325 | SELECTION SENSOR | 1 |
45 | 181325 | COUPLING SENSOR | 1 |
46 | 10902424 | SCREW | 2 |
47 | 12601274 | WASHER | 2 |
48 | 127493 | WASHER | 4 |
49 | 12644424 | WASHER | 2 |
50 | 10902224 | SCREW | 2 |
51 | 180744 | SHIELD | 1 |
52 | 15896470 | NUT | 2 |
53 | 127493 | WASHER | 2 |
54 | 12643724 | WASHER | 2 |
55 | 180745 | SHIELD SUPPORTING BRACKET | 1 |
56 | 164565 | FIXING CLIP | 2 |
57 | 102741 | NUT | 1 |
58 | 12643724 | WASHER | 1 |
59 | 181344 | CONNECTORS FIXING BRACKET | 1 |
60 | 113647 | NUT | 1 |
61 | 14496324 | WASHER | 1 |
62 | 65891200 | NUT WITH CAGE | 4 |
