Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

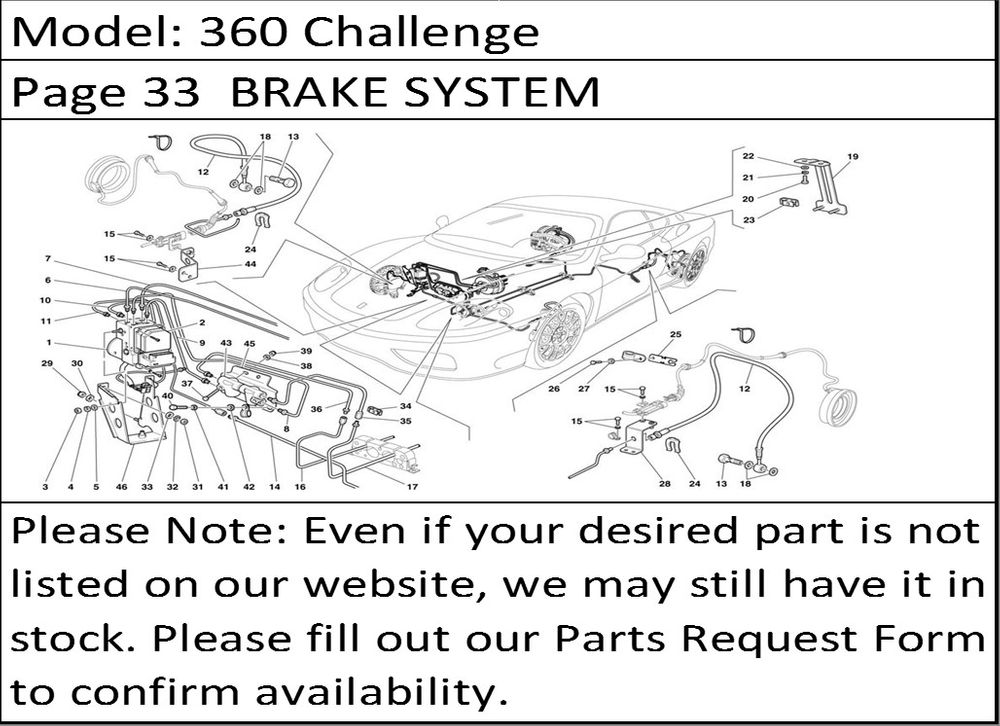

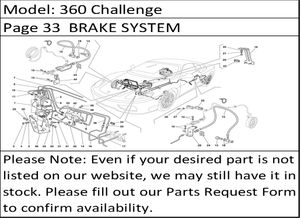

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 168828 | ABS/ASR HYDRAULIC CONTROL STATION | 1 |
| 2 | 185147 | ABS/ASR/EBD ELECTRONIC CONTROL STATION | 1 |
| 3 | 16100814 | NUT | 2 |
| 4 | 127496 | WASHER | 2 |
| 5 | 12638524 | WASHER | 2 |
| 6 | 178427 | BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION | 1 |
| 7 | 178426 | BRAKE PIPE FROM REAR PUMP TO CONTROL STATION | 1 |
| 8 | 182919 | PIPE FROM CONTROL STATION TO L.H. BRAKING REGULATOR | 1 |
| 9 | 182917 | PIPE FROM CONTROL STATION TO R.H. BRAKING REGULATOR | 1 |
| 10 | 178463 | PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE | 1 |
| 11 | 164308 | PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE | 1 |
| 12 | 183100 | BRAKES HOSE | 4 |
| 13 | 113670 | UNION | 4 |
| 14 | 164309 | INTERMEDIATE PIPE | 1 |
| 15 | 11625724 | SCREW WITH WASHER | 8 |
| 16 | 180361 | PIPE TO R.H. REAR HOSE | 1 |
| 17 | 180362 | PIPE TO L.H. REAR HOSE | 1 |
| 18 | 10260160 | GASKET | 8 |
| 19 | 177945 | BRAKES PIPES FIXING BRACKET | 1 |
| 20 | 10902424 | SCREW | 2 |
| 21 | 127494 | WASHER | 2 |
| 22 | 14488624 | WASHER | 2 |
| 23 | 169476 | CLIP | 2 |
| 24 | 116374 | CLIP | 8 |
| 25 | 179236 | SUPPORT FOR CABLE | 2 |
| 26 | 10902024 | SCREW | 2 |
| 27 | 12605371 | WASHER | 2 |
| 28 | 178939 | SUPPORT | 2 |
| 29 | 101139 | NUT | 1 |
| 30 | 12638524 | WASHER | 1 |
| 31 | 16100814 | NUT | 2 |
| 32 | 127496 | WASHER | 2 |
| 33 | 12638524 | WASHER | 2 |
| 34 | 169476 | CLIP | 4 |
| 35 | 182920 | PIPE FROM BRAKING REGULATOR TO L.H. REAR JOINT | 1 |
| 36 | 182918 | PIPE FROM BRAKING REGULATOR TO R.H. REAR JOINT | 1 |
| 37 | 16044224 | SCREW | 2 |
| 38 | 14496524 | WASHER | 2 |
| 39 | 101139 | NUT | 2 |
| 40 | 10902424 | SCREW | 3 |
| 41 | 127494 | WASHER | 3 |
| 42 | 12643724 | WASHER | 3 |
| 43 | 172979 | BRAKING REGULATOR | 2 |
| 44 | 179237 | R.H. SUPPORT | 1 |
| 44 | 179096 | L.H. SUPPORT | 1 |
| 45 | 182549 | BRACKET FOR BRAKING REGULATOR SUPPORTING | 1 |
| 46 | 179412 | CONTROL STATION SUPPORTING BRACKET | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
