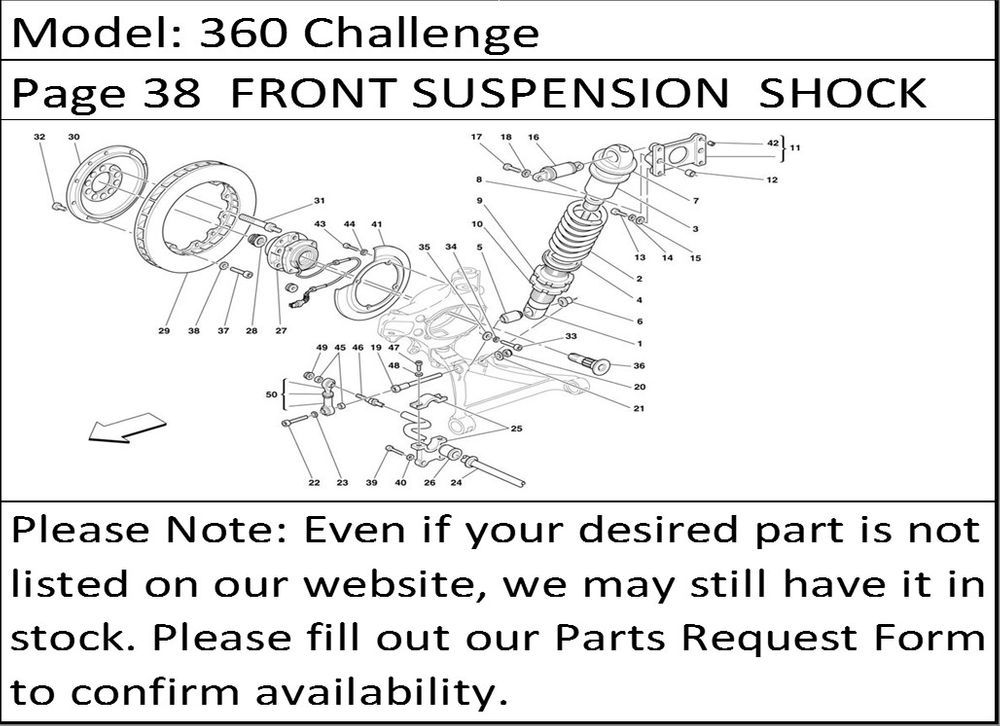

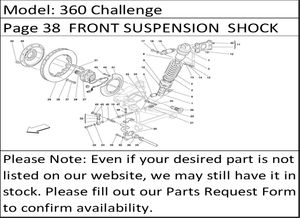

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 181400 | FRONT SHOCK ABSORBER | 2 |
2 | 181419 | SPRING 0,0551 mm/Kg -As an alternative | 2 |
2 | 181420 | SPRING 0,0463 mm/Kg | 2 |
3 | 181409 | UPPER SPACER | 2 |
4 | 181408 | LOWER SPACER | 2 |
5 | 157630 | BALL JOINT | 2 |
6 | 177661 | SPACER | 2 |
7 | 174727 | SPRING RETAINING UPPER SPACER | 2 |
8 | 181404 | SHOCK ABSORBER PAD | 2 |
9 | 181410 | SPACER | 2 |
10 | 181412 | RING NUT | 2 |
11 | 174729 | SHOCK ABSORBER CONNECTION SUPPORT | 2 |
12 | 100013 | CENTERING DOWEL | 4 |
13 | 14306774 | SCREW | 8 |
14 | 127496 | WASHER | 8 |
15 | 14496524 | WASHER | 8 |
16 | 181346 | FLANBLOC | 2 |
17 | 11306934 | SCREW | 4 |
18 | 160092 | WASHER | 4 |
19 | 177660 | SCREW | 2 |
20 | 148020 | NUT | 2 |
21 | 12646921 | WASHER | 2 |
22 | 14307821 | SCREW | 2 |
23 | 160092 | WASHER | 2 |
24 | 179776 | FRONT ANTI-ROLL BAR -Diameter 21 mm -As an alternative | 1 |
24 | 170715 | FRONT ANTI-ROLL BAR -Diameter 19 mm | 1 |
25 | 181467 | ANTI-ROLL BAR SUPPORT | 2 |
26 | 181468 | BAR BUFFER -Diameter 19 mm | 2 |
26 | 181469 | BAR BUFFER -Diameter 21 mm -As an alternative | 2 |
27 | 179070 | HUB COMPLETE BEARING | 2 |
28 | 167259 | NUT | 2 |
29 | 182887 | L.H. FRONT BRAKE DISC | 1 |
29 | 181546 | R.H. FRONT BRAKE DISC | 1 |
30 | 183238 | FIXING DISC CLUTCH | 2 |
31 | 178043 | STUD | 10 |
32 | 183240 | BUSHING | 20 |
33 | 180591 | SCREW | 8 |
34 | 160092 | WASHER | 8 |
35 | 10732414 | WASHER | 8 |
36 | 180542 | BEARING FIXING PIN | 2 |
37 | 183239 | SCREW | 20 |
38 | 183241 | WASHER | 20 |
39 | 16043424 | SCREW | 4 |
40 | 178341 | WASHER | 4 |
41 | 181444 | RING FOR L.H. DISC COOLING | 1 |
41 | 181443 | RING FOR R.H. DISC COOLING | 1 |
42 | 13526170 | THREADED INSERT | 4 |
43 | 14304021 | SCREW | 8 |
44 | 12601174 | WASHER | 8 |
45 | 169092 | SPACER | 4 |
46 | 182505 | PIN | 2 |
47 | 14302821 | SCREW | 4 |
48 | 107618 | WASHER | 4 |
49 | 133216 | NUT | 2 |
50 | 182526 | COMPLETE SMALL LINK | 2 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
