Page 37 OUTSIDE GEARBOX CONTROLS

Click On Diagram To Enlarge

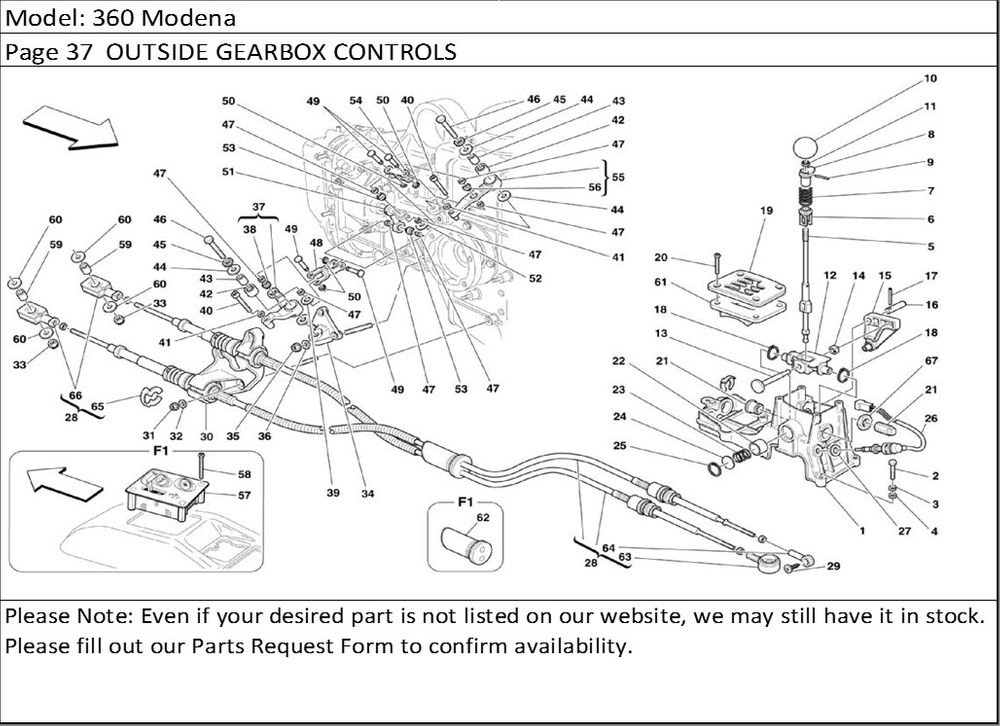

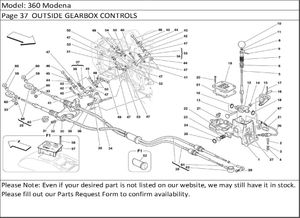

360 Modena Page 37 OUTSIDE GEARBOX CONTROLS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	176418	GEARBOX CONTROL -Not for F1 -Not as spare part replaced by 181751	1
1	181751	GEARBOX CONTROL -Not for F1	1
2	16044024	SCREW -Not for F1	4
3	12601374	WASHER -Not for F1	4
4	14496524	WASHER -Not for F1	4
5	180936	GEARBOX CONTROL LEVER -Not for F1	1
6	174967	BUSHING -Not for F1 - Revised Hill Engineering	1
7	159137	SPRING -Not for F1	1
8	199070	BUSHING -Not for F1	1
9	13896070	PIN -Not for F1	1
10	160480	KNOB -Not for F1	1
11	108010	COUNTER NUT -Not for F1	1
12	176626	FULCRUM -Not for F1	1
13	176425	PIN -Not for F1	1
14	172934	SMALL BLOCK -Not for F1	1
15	176642	LEVER -Not for F1	1
16	176419	PIN -Not for F1	1
17	14160570	PIN -Not for F1	1
18	172918	SAFETY RING -Not for F1	2
19	179844	GEAR SELECTOR -Not for F1	1
20	159357	SCREW -Not for F1	4
21	181753	FRONT BUSHING -Valid for gearbox control 181751	1
21	176904	PLUG -Not for F1 -Valid for gearbox control 176418	2
21	181752	REAR BUSHING -Valid for gearbox control 181751	1
22	177029	PIN -Not for F1	1
23	177027	SIDE SPRING -Not for F1	1
24	177028	SPRING RETAINING DISC -Not for F1	1
25	11058976	FLEXIBLE RING -Not for F1	1
26	115980	PUSH-BUTTON SWITCH -Not for F1	1
27	12601574	WASHER -Not for F1	1
28	182268	COMPLETE GEARBOX CONTROL CABLES -Not for F1 -Valid from Ass. Nr. 35397	1
28	180701	COMPLETE GEARBOX CONTROL CABLES -Not for F1 -Replaces 178220 -Valid till Ass. Nr. 35396	1
29	14567187	BUTTON -Not for F1	1
30	177812	BRACKET FOR CABLE FIXING -Not for F1	1
31	132877	NUT -Not for F1	3
32	14496424	WASHER -Not for F1	3
33	14048115	NUT -Not for F1	2
34	177105	SUPPORT FOR LEVERAGE -Not for F1	1
35	150978	NUT -Not for F1 -Not as spare part -Replaced by 177778	3
35	177778	NUT -Not for F1	3
36	12638524	WASHER -Not for F1	3
37	178840	LEVER -Not for F1 -Valid till Ass. Nr. 35396	1
37	186369	LEVER -Not for F1 -Valid from Ass. Nr. 35397	1
38	109407	BALL JOINT -Not for F1	1
39	178423	THICKNESS -Not for F1	1
40	14305824	SCREW -Not for F1	2
41	14499324	WASHER -Not for F1	2
42	171677	ROLLER BEARING -Not for F1	2
43	174984	BUSHING -Not for F1	2
44	171671	WASHER -Not for F1	4
45	10615674	WASHER -Not for F1	2
46	16044024	SCREW -Not for F1	2
47	171673	SPACER -Not for F1	8
48	174911	FORK -Not for F1	1
49	174974	PIN -Not for F1	4
50	11065676	SEEGER RING -Not for F1 -Not as spare part -Replaced by 11065674	4
50	11065674	SEEGER RING -Not for F1	4
51	184022	CONNECTION -Not for F1 -Not as spare part -Replaced by 184022 -See tab. 35 ref. 6	1
52	178423	THICKNESS -Not for F1	1
53	109407	BALL JOINT -Not for F1	2
54	174912	FORK -Not for F1	1
55	186371	LEVER -Not for F1 -Valid from Ass. Nr. 35397	1
55	178932	LEVER -Not for F1 -Valid till Ass. Nr. 35396	1
56	109407	BALL JOINT -Not for F1	1
57	181068	F1 GEARBOX CONTROL DASHBOARD -Valid for F1 -Valid for GD	1
57	181067	F1 GEARBOX CONTROL DASHBOARD -Valid for F1 -Not for GD	1
58	65404500	SCREW -Valid for F1	4
59	182237	BUSHING -Not for F1	2
60	12643724	WASHER -Not for F1	4
61	176422	SPACER -Not for F1	1
62	180127	CLOSING HOLE PAD -Valid for F1	1
63	187873	R.H. JOINT -Not for F1	1
64	187874	L.H. JOINT -Not for F1	1
65	187875	LOCK RING -Not for F1	2
66	182435	COMPLETE RUBBER JOINT -Not for F1	2
67	182391	NUT -Valid for gearbox control 181751	1
15	10902024	SCREW	8
16	12640677	WASHER	8
17	64529600	SPACER	8
18	65164700	HEADLIGHTS WASHER PUMP -For cars with headlights washer	1
19	65511700	GASKET -For cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -For cars with headlights washer	2
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer	1
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer	1
23	15517201	SCREW -For cars with headlights washer	6
24	65896700	L.H. SUPPORT -For cars with headlights washer	1
24	65896600	R.H. SUPPORT -For cars with headlights washer	1
25	65896400	R.H. PLUG -For cars with headlights washer	1
25	65896500	L.H. PLUG -For cars with headlights washer	1
26	10441590	BRACKET -For cars with headlights washer	4
27	14296191	RIVET -For cars with headlights washer	4
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
29	16043934	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
40	14190190	NUT WITH CAGE	2
41	66120200	INSULATION	1
42	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
42	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
43	155751	CLIP -Valid for USA and CDN	4
44	14084111	NUT -Valid for USA and CDN	8
45	12638124	WASHER -Valid for USA and CDN	8
5	67465400	Description not available
5	67465405	Description not available
5	67465427	Description not available
5	67465431	Description not available
5	67465505	Description not available
