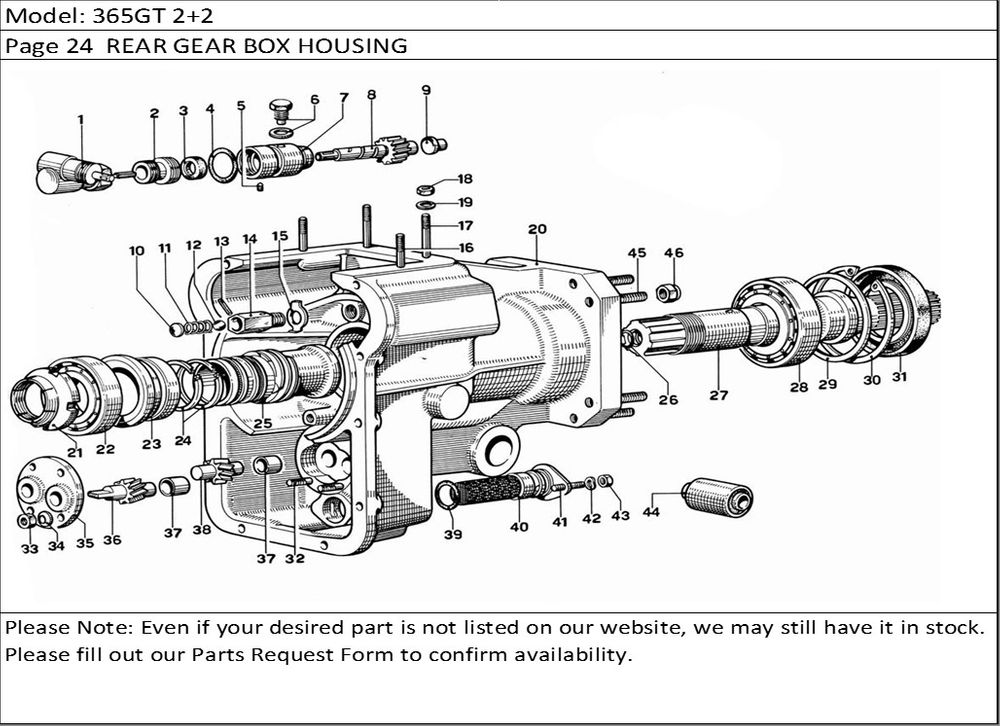

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | R 1/1 50. | Rinvio ad angolo per conta Km. con gomme 200 x 15 V.R.X. | 1 |
| 2 | 520707 | Union | 1 |
| 3 | 10x19x7 | Seal | 1 |
| 4 | 4075 | Sealing Ring | 1 |
| 5 | 94942 | Grano filettato | 1 |
| 6 | 520709 | Bolt | 1 |
| 7 | 520849 | Corpo rinvio | 1 |
| 8 | 521329 | Pignone rapp. 8/34 | 1 |
| 9 | 520708 | Bottone reggispinta | 1 |
| 10 | 94770 | Washer | 1 |
| 11 | 55786 | Spring | 1 |
| 12 | 90.142.011 | Sfera 11/32 per valvola | 1 |
| 13 | 2 x 16 | Pin | 1 |
| 14 | 55785 | Corpo valvola | 1 |
| 15 | 93248 | PLATE | 1 |
| 16 | P1 | THREADED STUD | 1 |
| 17 | P1 | THREADED STUD | 2 |
| 18 | 6x1UNI5588 | Nut | 2 |
| 19 | REO 6 | Washer | 4 |
| 20 | 522664 | Carter posteriore | 4 |
| 21 | 522508 | Locking Ring Nut | 1 |
| 22 | 3 A 32 | Cuscinetto a sfere | 1 |
| 23 | 522665 | CENTERING DOWEL | 1 |
| 24 | 520803 | Seal | 2 |
| 25 | 522668 | I Vite senza fine | 1 |
| 26 | 112 | I Anello tenuta olio | 1 |
| 27 | 522667 | Albero uscita cambio | 1 |
| 28 | 0.20833333 | Cuscinetto a sfere | 1 |
| 29 | 522666 | I Distanziale | 1 |
| 30 | AA80 i | Seal | 1 |
| 31 | 5080 | Seal | 1 |
| 32 | Pi | THREADED STUD | 4 |
| 33 | 5x0,8UNI 5 | Nut | 4 |
| 34 | RC5 | Washer | 4 |
| 35 | 55342 | Cover | 1 |
| 36 | 55459 | DRIVING GEAR | 1 |
| 37 | 52453 | Bush | 2 |
| 38 | 52452 | DRIVEN GEAR | 1 |
| 39 | 4075 | Sealing Ring | 1 |
| 40 | 521224 | Complessivo filtro olio | 1 |
| 41 | P1 | THREADED STUD | 2 |
| 42 | REO 5 | Washer | 2 |
| 43 | 5x0,8UNI 5 | Nut | 2 |
| 44 | 88.114.241 | Silentbloc per tirante | 1 |
| 45 | 95287 | THREADED STUD | 8 |
| 46 | 10 X 1,25 | Nut | 8 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
