Home > Page 39 STEERING COLUMN

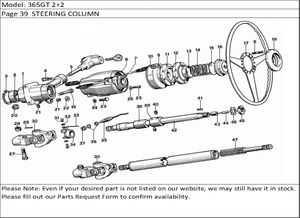

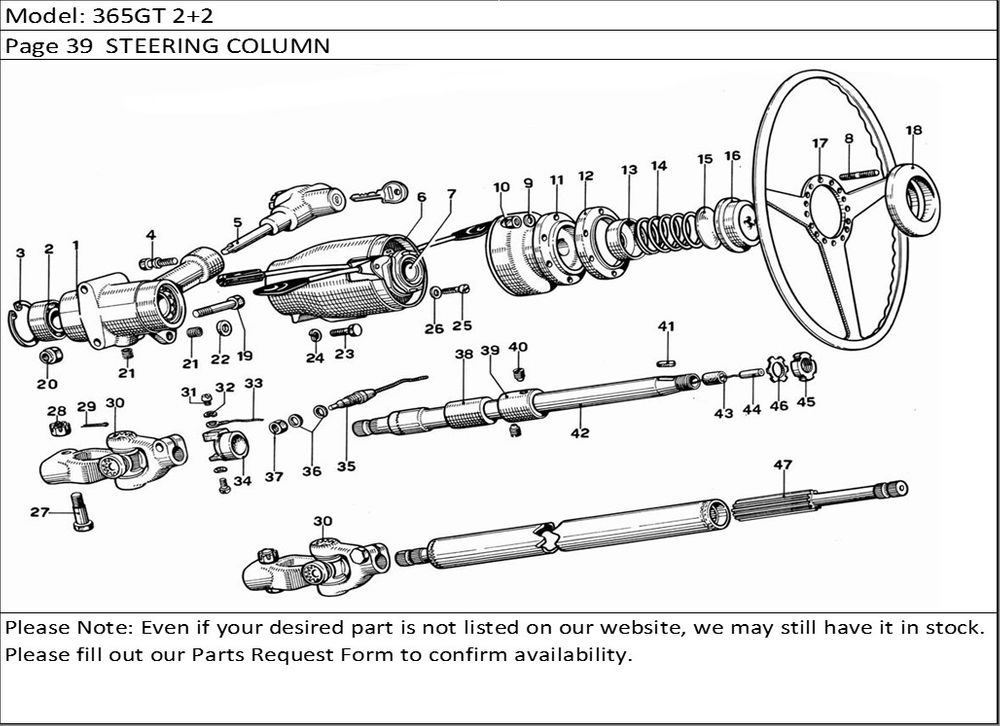

Page 39 STEERING COLUMN

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	740289	Assieme tubo guida	1
1	1454	Complessivo guida	1
1	740273	Support	1
2	2 APPL 25	Cuscinetto per tubo guida	2
3	AA 52 i	Seeger Ring	2
4	A 0664	Bolt	1
5	740276	Corpo antifurto	1
6	740272	Canotto per commutatori	1
7	740293	Complessivo deviosgancio	1
8	PI	Stud	6
9	RC6	Washer	6
10	106 MA	Nut	6
11	740075	Mozzo volante guida	1
12	740120	Spacer	11
13	74176	Scodellino per pulsante	1
14	75051	Spring	1
15	75094	Contatto per avvisatore	1
16	75044	Pulsante con stemma	1
17	740300	Volante guida	1
18	740299	Cover	1
19	8x80UNI573	Bolt	2
20	108 MB	Nut	2
21	6 x 100 x	Bush	2
22	20181	Spessore per canotto	1
24	REG6	Washer	1
25	3 VR5x22	Screw	2
26	RC 5	Washer	2
27	7470030143	Bolt	4
28	770024001	Nut	4
28	6xix20UNI5	Screw	1
29	C 1	Split Pin	4
30	7315.410.1	Giunto a snodo completo di bulloni	2
31	4 x 12	Screw	2
32	REG 4	Washer	2
33	-	Cavo corrente	1
34	75110	Contatto per avvisatore	1
35	CARBONIUM	Carboncino e molla	1
36	94828	Washer	2
37	94829	Nut	1
38	740275	Distanziale sul tubo guida	1
39	740009	Canotto	1
40	94835	Grano per canotto	2
41	94628	KEY	1
42	740274	EstremitA tubo guida	1
43	74190	Ring	1
44	740121	Bush	1
45	74172	Ring Nut	1
46	74174	PLATE	1
47	740290	Pivot	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
