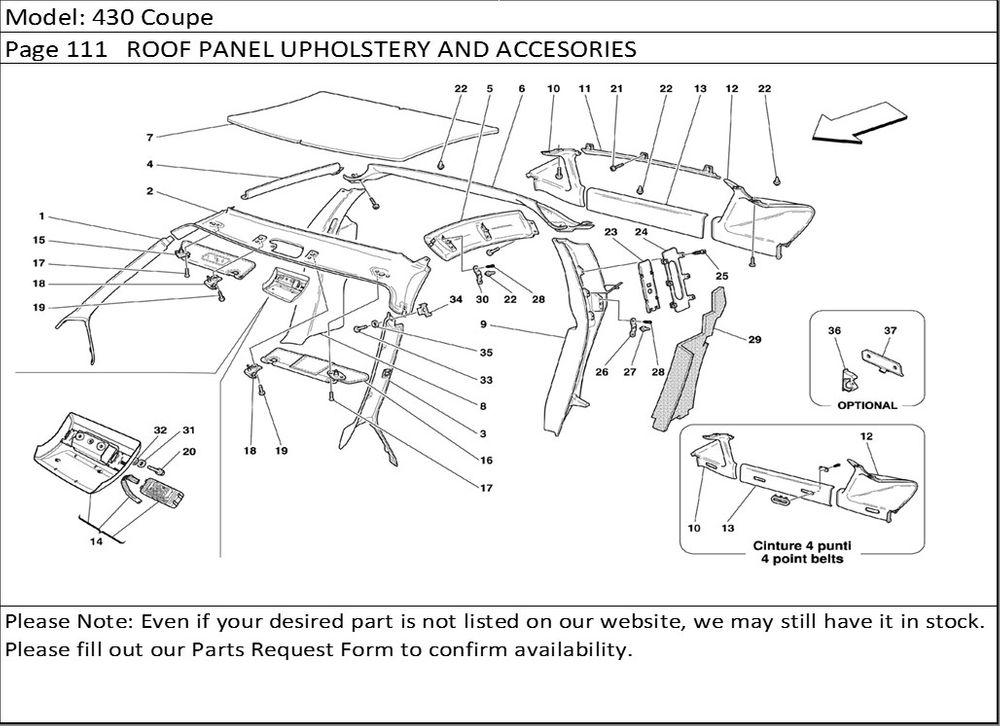

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 678984 | R.H. PILLAR COVER -Not for USA and CDN- | 1 |
| 1 | 690479 | R.H. PILLAR COVER -Valid for USA and CDN- | 1 |
| 2 | 678978 | NDSCREEN UPPER ARM MOLDING -Not for USA and CDN- | 1 |
| 2 | 690478 | NDSCREEN UPPER ARM MOLDING -Valid for USA and CDN- | 1 |
| 3 | 678989 | L.H. PILLAR COVER -Not for USA and CDN- | 1 |
| 3 | 690480 | L.H. PILLAR COVER -Valid for USA and CDN- | 1 |
| 4 | 650725 | R.H. RAIL COVER -Not for USA and CDN- | 1 |
| 4 | 692068 | R.H. RAIL COVER -Valid for USA and CDN- | 1 |
| 5 | 692069 | L.H. RAIL COVER -Valid for USA and CDN- | 1 |
| 5 | 650729 | L.H. RAIL COVER -Not for USA and CDN- | 1 |
| 6 | 655257 | COMPLETE REAR ROOF COVER -Standard- -Not for USA and CDN- | 1 |
| 6 | 688890 | COMPLETE REAR ROOF COVER -Optional- -Clothes hook version- -Not for USA and CDN- | 1 |
| 6 | 692104 | COMPLETE REAR ROOF COVER -Valid for USA and CDN- | 1 |
| 7 | 636993 | UPHOLSTERY -Cloth- -Not as spare part- -Replaced by 674637..- | 1 |
| 7 | 674637 | UPHOLSTERY -Cloth- | 1 |
| 7 | 658955 | UPHOLSTERY -Leather- | 1 |
| 7 | 802492 | UPHOLSTERY -Alcantara- | 1 |
| 8 | 692145 | R.H. CENTRAL PILLAR COVER -Valid for USA and CDN- | 1 |
| 8 | 660967 | R.H. CENTRAL PILLAR COVER -For 4 point belts cars- -Not for USA and CDN- | 1 |
| 8 | 685383 | R.H. CENTRAL PILLAR COVER -For 3 point belts cars- -Not for USA and CDN- | 1 |
| 9 | 685385 | L.H. CENTRAL PILLAR COVER -For 3 point belts cars- -Not for USA and CDN- | 1 |
| 9 | 660973 | L.H. CENTRAL PILLAR COVER -For 4 point belts cars- -Not for USA and CDN- | 1 |
| 9 | 692146 | L.H. CENTRAL PILLAR COVER -Valid for USA and CDN- | 1 |
| 10 | 635809 | R.H. REAR WINDOW COVER -For 3 point belts cars- | 1 |
| 10 | 657225 | R.H. REAR WINDOW COVER -For 4 point belts cars- | 1 |
| 11 | 650733 | REAR OVER-WINDOW CROSSMEMBER | 1 |
| 12 | 657226 | L.H. REAR WINDOW COVER -For 4 point belts cars- | 1 |
| 12 | 635810 | L.H. REAR WINDOW COVER -For 3 point belts cars- | 1 |
| 13 | 635808 | REAR WINDOW LOWER MOULDING -For 3 point belts cars- | 1 |
| 13 | 657220 | REAR WINDOW LOWER MOULDING -For 4 point belts cars- | 1 |
| 14 | 69224500 | DOME LAMP -Valid for AUS and J- -Optional- -Bluetooth- -Valid for cars USA and CDN with Sports Seats and with microphone + Bluetooth Optionals- -Valid for not AUS and J from Ass. Nr. 71072- | 1 |
| 14 | 69224400 | DOME LAMP -Valid for AUS and J- -Standard- -Valid for cars USA and CDN with Sports Seats and without microphone Optionals- | 1 |
| 14 | 69307500 | DOME LAMP -Valid for GB- -Optional- -Bluetooth- -Valid from car Ass. Nr. 61555- | 1 |
| 14 | 68328400 | DOME LAMP -Valid for GB- -Optional- -Bluetooth- -Valid till car Ass. Nr. 61554- | 1 |
| 14 | 69307400 | DOME LAMP -Valid for GB- -Standard- -Valid from car Ass. Nr. 61555- -Valid till Ass. Nr. 71071- | 1 |
| 14 | 68328300 | DOME LAMP -Valid for GB- -Standard- -Valid till car Ass. Nr. 61554- | 1 |
| 14 | 69307300 | DOME LAMP -Not for GD and J- -Optional- -Bluetooth- -Valid from car Ass. Nr. 61555- | 1 |
| 14 | 68271400 | DOME LAMP -Not for GD and J- -Optional- -Bluetooth- -Valid till car Ass. Nr. 61554- | 1 |
| 14 | 69307200 | DOME LAMP-Not for GD and J- -Standard- -Valid from car Ass. Nr. 61555--Valid till Ass. Nr. 71071- | 1 |
| 14 | 68086200 | DOME LAMP-Not for GD and J- -Standard- -Valid till car Ass. Nr. 61554- | 1 |
| 15 | 800877 | R.H. SUN SCREEN -Valid for GD- -Valid from Ass. Nr. 67866- | 1 |
| 15 | 658794 | R.H. SUN SCREEN -Valid for GD- -Valid till Ass. Nr. 67865- | 1 |
| 15 | 800577 | R.H. SUN SCREEN -Not for GD- -Valid from Ass. Nr. 67866- | 1 |
| 15 | 658729 | R.H. SUN SCREEN -Not for GD- -Valid till Ass. Nr. 67865- | 1 |
| 16 | 800878 | L.H. SUN SCREEN -Valid for GD- -Valid from Ass. Nr. 67866- | 1 |
| 16 | 658792 | L.H. SUN SCREEN -Valid for GD- -Valid till Ass. Nr. 67865- | 1 |
| 16 | 800578 | L.H. SUN SCREEN -Not for GD- -Valid from Ass. Nr. 67866- | 1 |
| 16 | 658728 | L.H. SUN SCREEN -Not for GD- -Valid till Ass. Nr. 67865- | 1 |
| 17 | 13309477 | SCREW | 4 |
| 18 | 65151500 | CENTRAL BRACKET | 1 |
| 19 | 13274277 | SCREW -Not as spare part- -Replaced by 13274177- | 2 |
| 19 | 13274177 | SCREW | 2 |
| 20 | 14305424 | SCREW | 2 |
| 21 | 65864100 | SCREW | 3 |
| 22 | 14186880 | RETAINER | 16 |
| 23 | 68534300 | PLATE | 2 |
| 24 | 65069800 | BRACKET | 2 |
| 25 | 15901501 | SCREW | 12 |
| 26 | 66092200 | PLATE | 8 |
| 27 | 66092400 | PLUG | 8 |
| 28 | 16082901 | SCREW | 24 |
| 29 | 65391200 | L.H. INSULATION | 1 |
| 29 | 65391100 | R.H. INSULATION | 1 |
| 30 | 65069900 | PLATE | 4 |
| 31 | 12620474 | SHER -Not as spare part- -Replaced by 12643778- | 2 |
| 32 | 14498804 | SHER -Not as spare part- -Replaced by 12643778- | 2 |
| 32 | 12643778 | SHER -Replaces 12620474 ref.321 and 14498804 ref.32- | 2 |
| 33 | 64830600 | SCREW | 6 |
| 34 | 14648490 | NUT | 6 |
| 35 | 12644477 | SHER | 6 |
| 36 | 67331600 | CLOTHES HOOK -Optional- -Clothes hook version- -Not for USA and CDN- | 2 |
| 37 | 68873200 | BRACKET -Optional- -Clothes hook version- -Not for USA and CDN- | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
