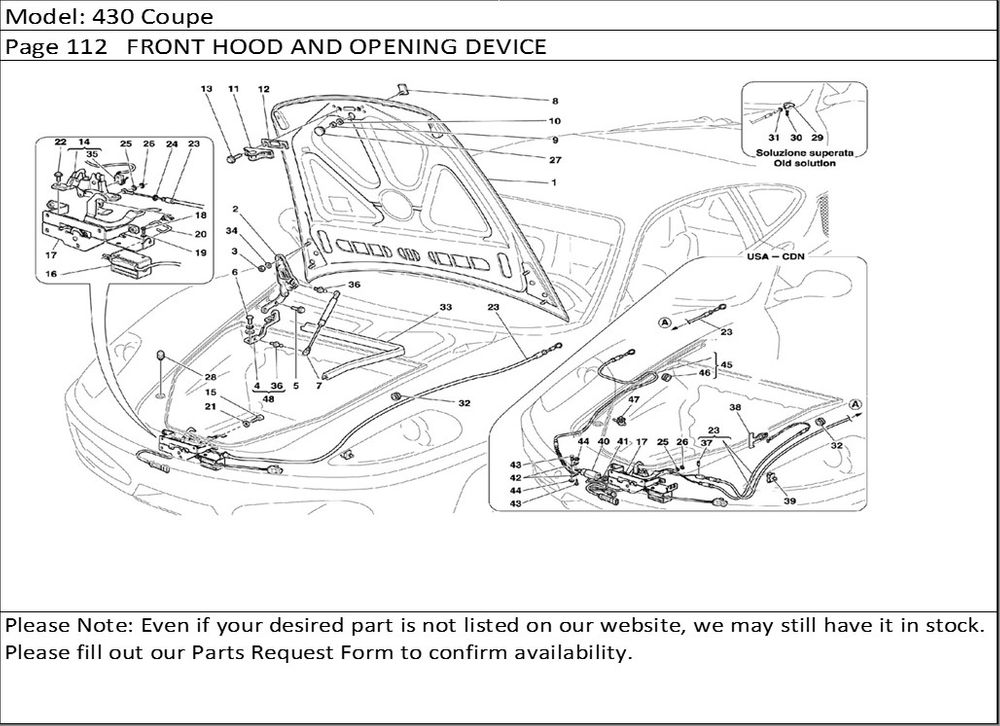

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 80870811 | COMPLETE FRONT HOOD BONNET -Valid till Ass. Nr. 74570- -Valid till stock exhaustion- | 1 |
| 1 | 80870811 | COMPLETE FRONT HOOD BONNET -Valid from Ass. Nr. 74571- -Valid after stock exhaustion of 65313100- | 1 |
| 2 | 65712200 | COMPLETE R.H. HINGE -Valid till Ass. Nr. 74453- | 1 |
| 2 | 80945700 | COMPLETE R.H. HINGE -Valid from Ass. Nr. 74454- | 1 |
| 2 | 65712300 | COMPLETE L.H. HINGE -Valid till Ass. Nr. 74453- | 1 |
| 2 | 80945900 | COMPLETE L.H. HINGE -Valid from Ass. Nr. 74454- | 1 |
| 3 | 13832211 | NUT | 4 |
| 4 | 65710700 | L.H. BRACKET | 1 |
| 4 | 65710600 | R.H. BRACKET | 1 |
| 5 | 16287124 | SCREW | 4 |
| 6 | 16287127 | SCREW | 4 |
| 7 | 67508100 | SHOCK ABSORBER FOR HOOD SUPPORT -Valid till Ass. Nr. 74557- | 2 |
| 7 | 80136300 | SHOCK ABSORBER FOR HOOD SUPPORT -Valid from Ass. Nr. 74558- | 1 |
| 8 | 65394800 | FRONT ORNAMENT | 1 |
| 9 | 169180 | NUT | 1 |
| 10 | 10519378 | WASHER | 1 |
| 11 | 65770100 | STRIKER | 1 |
| 12 | 65772100 | THICKNESS | 1 |
| 13 | 16286027 | SCREW | 2 |
| 14 | 67046200 | COMPLETE INNER DEVICE FOR FRONT HOOD OPENING | 1 |
| 15 | 13027026 | SCREW | 4 |
| 16 | 65757300 | ACTUATOR | 1 |
| 17 | 80807300 | COMPLETE BRACKET -Valid for USA and CDN- -Valid from Ass. Nr. 74672- | 1 |
| 17 | 67364800 | COMPLETE BRACKET -Valid for USA and CDN- -Valid till Ass. Nr. 74671- | 1 |
| 17 | 80804300 | COMPLETE BRACKET -Not for USA and CDN- -Valid from Ass. Nr. 74672- | 1 |
| 17 | 67011600 | COMPLETE BRACKET -Not for USA and CDN- -Valid till Ass. Nr. 74671 - | 1 |
| 18 | 13271814 | SCREW | 2 |
| 19 | 127492 | WASHER | 2 |
| 20 | 65777800 | SMALL ROD | 1 |
| 21 | 11194674 | WASHER | 4 |
| 22 | 16296927 | SCREW | 2 |
| 23 | 65801300 | CABLE FOR FRONT HOOD OPENING -Not for USA and CDN- | 1 |
| 23 | 67404100 | CABLE FOR FRONT HOOD OPENING -Valid for USA and CDN- -Not as spare part- -Replaced by 69328800- | 1 |
| 23 | 69328800 | CABLE FOR FRONT HOOD OPENING -Valid for USA and CDN- | 1 |
| 24 | 11087676 | FLEXIBLE RING | 1 |
| 25 | 14496101 | WASHER | 1 |
| 26 | 11087476 | FLEXIBLE RING | 1 |
| 27 | 14506787 | PLUG | 1 |
| 28 | 65546600 | SMALL BLOCK | 2 |
| 29 | 60710900 | EMERGENCY HANDLE -Not as spare part- | 1 |
| 30 | 60711000 | CLIP -Not as spare part- | 1 |
| 31 | 11087674 | FLEXIBLE RING -Not as spare part- | 1 |
| 32 | 10396180 | CABLE GROMMET | 2 |
| 33 | 65850000 | GASKET FOR TRUNK HOOD | 1 |
| 34 | 12646724 | WASHER | 4 |
| 35 | 67493300 | MICRO-SWITCH | 1 |
| 36 | 65939900 | PIN -Q.ty 2 from Ass. Nr. 74558- | 4 |
| 37 | 60276805 | DOWEL -Valid for USA and CDN- | 1 |
| 38 | 67053000 | HANDLE FOR SAFETY CHILDREN -Valid for USA and CDN- | 1 |
| 39 | 62854300 | FIXING CLIP -Valid for USA and CDN- | 1 |
| 40 | 67365100 | ACTUATOR -Valid for USA and CDN- | 1 |
| 41 | 60538800 | RING NUT -Valid for USA and CDN- | 1 |
| 42 | 67558300 | SMALL LINK -Valid for USA and CDN- | 2 |
| 43 | 67555700 | PIN-Valid for USA and CDN- | 2 |
| 44 | 11087476 | FLEXIBLE RING -Valid for USA and CDN- | 2 |
| 45 | 67405000 | EMERGENCY CABLE -Valid for USA and CDN- | 1 |
| 46 | 10396180 | CABLE GROMMET -Valid for USA and CDN- | 1 |
| 47 | 65897700 | CLIP -Valid for USA and CDN- -Valid till Ass. Nr. 72259- | 1 |
| 47 | 177553 | CLAMP -Valid from Ass. Nr. 72260- | 1 |
| 48 | 69977000 | R.H. BRACKET ASSEMBLY | 1 |
| 48 | 69977100 | L.H. BRACKET ASSEMBLY -Valid till Ass. Nr. 74557- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
