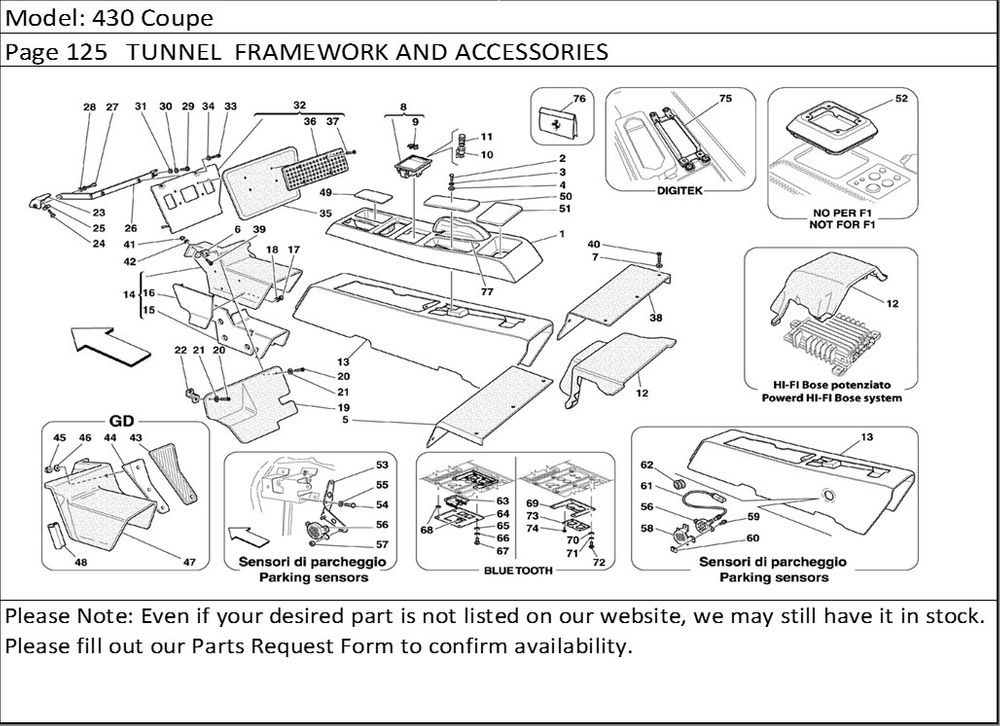

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 680947 | CENTRAL TUNNEL COVER -Not for F1 - -Standard- | 1 |
| 1 | 68663700 | CENTRAL TUNNEL COVER -Valid for F1- -Optional- -Carbon- -Bluetooth- -Valid for GD- -Valid till car Nr.146597- | 1 |
| 1 | 80084900 | CENTRAL TUNNEL COVER -Valid for F1- -Optional- -Carbon- -Valid for GD- -Valid from Ass. Nr. | 1 |
| 1 | 68664100 | CENTRAL TUNNEL COVER -Valid for F1- -Optional- -Carbon- -Valid for GD- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Valid for Jaeger F1 dashboard- -Valid till stock exhaustion- | 1 |
| 1 | 684597 | CENTRAL TUNNEL COVER -Valid for F1 - -Standard- -Valid for GD- | 1 |
| 1 | 68663600 | CENTRAL TUNNEL COVER -Valid for F1 - -Optional- -Carbon- -Bluetooth- -Not for GD- -Valid till car Nr.146597- | 1 |
| 1 | 80084800 | CENTRAL TUNNEL COVER -Valid for F1 - -Optional- -Carbon- -Not for GD- -Valid from Ass. Nr. 66454 (car Nr. 149225)- -Valid for Digitek F1 dashboard- | 1 |
| 1 | 68664000 | CENTRAL TUNNEL COVER -Valid for F1 - -Optional- -Carbon- -Not for GD- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Valid for Jaeger F1 dashboard- -Valid till stock exhaustion- | 1 |
| 1 | 684237 | CENTRAL TUNNEL COVER -Valid for F1 - -Standard- -Not for GD- | 1 |
| 1 | 68663400 | CENTRAL TUNNEL COVER -Not for F1- -Optional- -Carbon- -Bluetooth- -Valid till car Nr. 146597- | 1 |
| 1 | 68663800 | CENTRAL TUNNEL COVER -Not for F1 - -Optional- -Carbon- | 1 |
| 2 | 16043424 | SCREW | 1 |
| 3 | 127496 | WASHER | 1 |
| 4 | 13550301 | WASHER | 1 |
| 5 | 805050 | L.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -Valid for Roll-Bar car- | 1 |
| 5 | 804296 | L.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -No for Roll-Bar cars- | 1 |
| 5 | 681438 | L.H. COVER FOR CONTROL UNIT -Optional- -Valid for Roll-Bar cars- | 1 |
| 5 | 679592 | L.H. COVER FOR CONTROL UNIT -Standard- -Not for Roll-Bar cars- | 1 |
| 6 | 65709200 | BRACKET | 1 |
| 7 | 12611407 | WASHER | 10 |
| 8 | 67505800 | COMPLETE ASH TRAY | 1 |
| 9 | 64460400 | FERRARI-PININFARINA MARK | 1 |
| 10 | 226941 | CIGAR LIGHTER BODY | 1 |
| 10 | 226941 | CIGAR LIGHTER BODY -Not as spare part- -Replaced by 226941- | 1 |
| 10 | 226941 | CIGAR LIGHTER BODY -Not as spare part now- -Replaced by 68913000- | 1 |
| 11 | 226942 | CIGAR LIGHTER -Not as spare part- -Replaced by 226942- | 1 |
| 11 | 226942 | CIGAR LIGHTER | 1 |
| 12 | 680985 | REAR SIDE TUNNEL COVER | 1 |
| 12 | 686036 | REAR SIDE TUNNEL COVER -Valid for amplifier version- -Optional- | 1 |
| 12 | 804087 | REAR SIDE TUNNEL COVER -Valid for powered HI FI Bose system- | 1 |
| 13 | 695975 | LOWER CONSOLE -Parking sensors- -Optional- | 1 |
| 13 | 683964 | LOWER CONSOLE | 1 |
| 14 | 683789 | FRONT SIDE TUNNEL COVER -Valid for GD- -Standard- | 1 |
| 14 | 804876 | FRONT SIDE TUNNEL COVER -Valid for GD- -OPT valid for powered HI FI Bose system- | 1 |
| 14 | 693005 | FRONT SIDE TUNNEL COVER -Valid for GD- -OPT radio amplifier- | 1 |
| 14 | 679635 | FRONT SIDE TUNNEL COVER -Not for GD- -Standard- | 1 |
| 14 | 804818 | FRONT SIDE TUNNEL COVER -Not for GD- -OPT valid for powered HI FI Bose system- | 1 |
| 14 | 688889 | FRONT SIDE TUNNEL COVER -Not for GD- -OPT radio amplifier- | 1 |
| 14 | 686783 | FRONT SIDE TUNNEL COVER -Not for GD- | 1 |
| 15 | 65390900 | FRONT INSULATION TUNNEL -Not for GD- | 1 |
| 16 | 65305300 | ACCELERATOR PEDAL PROTECTION -Not for GD- | 1 |
| 17 | 14051811 | NUT-Not for GD- | 4 |
| 17 | 14051811 | 0 | 4 |
| 18 | 12642801 | 0 | 4 |
| 18 | 12642801 | WASHER-Not for GD- | 4 |
| 19 | 690595 | UNDER PEDAL COVER -Valid for GD- | 1 |
| 19 | 682607 | UNDER PEDAL COVER -Not for GD- | 1 |
| 20 | 13311077 | SCREW | 2 |
| 21 | 12611107 | WASHER | 2 |
| 22 | 65709300 | L.H. UPPER BRACKET | 1 |
| 23 | 65523500 | BRACKET-Not for GD- | 1 |
| 23 | 65538800 | BRACKET -Valid for GD- | 1 |
| 24 | 10902324 | SCREW | 1 |
| 25 | 12640624 | WASHER | 1 |
| 26 | 65538700 | SUPPORT PIPE -Valid for GD- | 1 |
| 26 | 65522900 | SUPPORT PIPE -Not for GD- | 1 |
| 27 | 10902324 | SCREW | 1 |
| 28 | 12640624 | WASHER | 1 |
| 29 | 10902324 | SCREW | 1 |
| 30 | 12601274 | WASHER | 1 |
| 31 | 12644424 | WASHER | 1 |
| 32 | 685361 | COMPLETE FOOT-REST FOR PASSENGER -Valid for GD- | 1 |
| 32 | 673673 | COMPLETE FOOT-REST FOR PASSENGER -Not for GD- | 1 |
| 33 | 13276211 | SCREW | 2 |
| 34 | 12601274 | WASHER | 2 |
| 35 | 68513300 | CARPET -Not for GD- | 1 |
| 35 | 65538100 | CARPET -Valid for GD- | 1 |
| 36 | 66122200 | COVER | 1 |
| 37 | 65847800 | SCREW | 4 |
| 38 | 805049 | R.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -Valid for Roll-Bar car- | 1 |
| 38 | 804295 | R.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -Not for Roll-Bar cars- | 1 |
| 38 | 681436 | R.H. COVER FOR CONTROL UNIT -Optional- -Valid for Roll-Bar cars- | 1 |
| 38 | 679589 | R.H. COVER FOR CONTROL UNIT -Standard- -Not for Roll-Bar cars- | 1 |
| 39 | 13274177 | SCREW | 1 |
| 40 | 69193000 | SCREW-M6x 14- | 2 |
| 40 | 68927900 | SCREW -M6 x 25- | 6 |
| 40 | 68928000 | SCREW -M6 x 60- | 2 |
| 41 | 113647 | NUT | 1 |
| 42 | 12637878 | SHER | 1 |
| 43 | 65918000 | SLAB FOR DRIVER SIDE FOOT REST PLATE -Valid for GD- | 1 |
| 44 | 69058900 | FOOT-REST FOR DRIVER -Valid for GD- | 1 |
| 45 | 14059111 | NUT -Valid for GD- | 3 |
| 46 | 14447001 | WASHER -Valid for GD- | 3 |
| 47 | 693005 | TUNNEL COVER FRONT PART -Valid for GD- | 1 |
| 48 | 67681200 | GASKET -Valid for GD- | 1 |
| 49 | 684239 | FRONT COVER -Valid for F1 - | 1 |
| 50 | 680904 | CENTRAL COVER | 1 |
| 51 | 680901 | REAR COVER | 1 |
| 52 | 67895000 | GEARBOX LEVER OUTER BOOT -Not for F1 - | 1 |
| 53 | 69598800 | BUZZER SUPPORT -Not for GD- -Parking sensors- -Optional- | 1 |
| 53 | 69599400 | BUZZER SUPPORT -Valid for GD- -Parking sensors- -Optional- | 1 |
| 54 | 16285211 | SCREW -Parking sensors- -Optional- | 2 |
| 55 | 12644424 | WASHER -Parking sensors- -Optional- | 2 |
| 56 | 223469 | BUZZER -Parking sensors- -Optional- | 2 |
| 57 | 10794011 | NUT -Parking sensors- -Optional- | 2 |
| 58 | 69596700 | PROTECTION NET -Parking sensors- -Optional- | 1 |
| 59 | 13271872 | SCREW -Parking sensors- -Optional- | 4 |
| 60 | 14370571 | BRACKET -Parking sensors- -Optional- | 4 |
| 61 | 223943 | CABLE -Parking sensors- -Optional- -Valid till car Nr.150216 (Ass. Nr. 67547)- | 1 |
| 62 | 10396480 | CABLE GROMMET -Parking sensors- -Optional- -Valid from car Nr.150217 (Ass. Nr. 67548)- | 1 |
| 63 | 67354100 | CLIP | 1 |
| 64 | 68744600 | PLATE | 1 |
| 65 | 13506624 | WASHER | 4 |
| 66 | 12601074 | WASHER | 4 |
| 67 | 14302924 | SCREW | 4 |
| 68 | 12647604 | WASHER | 2 |
| 69 | 69220700 | PLATE -Valid for USA and CDN- | 1 |
| 70 | 13506624 | WASHER -Valid for USA and CDN- | 2 |
| 71 | 12601074 | WASHER -Valid for USA and CDN- | 2 |
| 72 | 14302924 | SCREW -Valid for USA and CDN- | 2 |
| 73 | 69177300 | PLATE -Valid for USA and CDN- | 1 |
| 74 | 13270216 | SCREW -Valid for USA and CDN- | 6 |
| 75 | 69927500 | BRACKET | 1 |
| 76 | 810604 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Bluetooth- -Valid for GD- | 1 |
| 76 | 810603 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Valid for GD- | 1 |
| 76 | 81060100 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -LEATHER- -Valid for GD- | 1 |
| 76 | 810600 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Bluetooth- -Valid for USA, CDN- | 1 |
| 76 | 810599 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Valid for USA and CDN- | 1 |
| 76 | 81059700 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -LEATHER- -Valid for USA and CDN- | 1 |
| 76 | 810596 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -Carbon version- -Bluetooth- -Not for USA, CDN and GD- | 1 |
| 76 | 810595 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -Carbon version- -Not for USA, CDN and GD- | 1 |
| 76 | 81059300 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -LEATHER- -Not for USA, CDN and GD- | 1 |
| 77 | 680892 | BOOT -Leather- -Valid for carbon tunnel cover- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
