Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

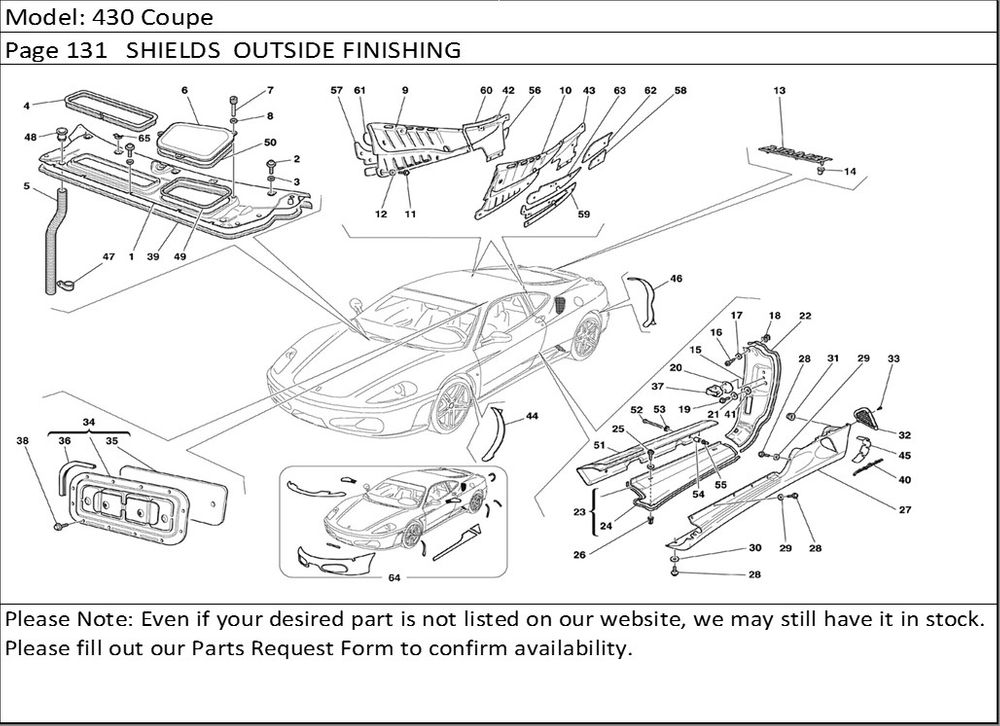

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 65544100 | WINDSHIELD PLATE -Not for GD- | 1 |
| 1 | 65875200 | WINDSHIELD PLATE -Valid for GD- | 1 |
| 2 | 65864100 | SCREW | 11 |
| 3 | 12644477 | WASHER | 11 |
| 4 | 65750900 | GASKET -Not as spare part- -Replaced by 69339200- | 1 |
| 4 | 69339200 | GASKET | 1 |
| 5 | 65992600 | TER EXHAUST TUBE | 2 |
| 6 | 65064300 | OIL TANK COMPARTMENT COVER -Not for GD- | 1 |
| 6 | 65875400 | OIL TANK COMPARTMENT COVER -Valid for GD- | 1 |
| 7 | 65750300 | THREADED PIN | 3 |
| 8 | 14496478 | WASHER | 3 |
| 9 | 68445300 | R.H. FRONT PANEL -Carbon panel- -Replaces 68600800- | 1 |
| 9 | 68600800 | R.H. FRONT PANEL -Carbon panel- -Valid till stock exhaustion- | 1 |
| 9 | 68535100 | R.H. FRONT PANEL -SMC panel- -Replaces 68535000- | 1 |
| 9 | 68535100 | R.H. FRONT PANEL -SMC panel- -Valid till stock exhaustion- | 1 |
| 10 | 68535400 | L.H. FRONT PANEL -SMC panel- -Valid till stock exhaustion- | 1 |
| 10 | 68535400 | L.H. FRONT PANEL -SMC panel- -Replaces 68535300- | 1 |
| 10 | 68445400 | L.H. FRONT PANEL -Carbon panel- -Valid till stock exhaustion- | 1 |
| 10 | 68445400 | L.H. FRONT PANEL -Carbon panel- -Replaces 68600900- | 1 |
| 11 | 216431 | SCREW | 16 |
| 12 | 12624178 | WASHER | 16 |
| 13 | 61025000 | FERRARI MARK | 1 |
| 14 | 60324506 | SAFETY CLIP | 2 |
| 15 | 68650811 | R.H. STRIP COVER -Valid for GD- | 1 |
| 15 | 68647711 | R.H. STRIP COVER -Not for GD- | 1 |
| 15 | 68650911 | L.H. STRIP COVER -Valid for GD- | 1 |
| 15 | 68647811 | L.H. STRIP COVER -Not for GD- | 1 |
| 16 | 15689675 | SCREW | 4 |
| 17 | 12637878 | WASHER | 4 |
| 18 | 14201980 | BLOCK | 4 |
| 19 | 62940900 | SCREW | 2 |
| 20 | 67853600 | SPACER | 2 |
| 21 | 12648978 | WASHER | 2 |
| 22 | 64859000 | RUBBER PROFILE | 2 |
| 23 | 68608700 | R.H. KICK PLATE -Carbon kick plate- | 1 |
| 23 | 68146500 | R.H. KICK PLATE | 1 |
| 23 | 68608800 | L.H. KICK PLATE -Carbon kick plate- | 1 |
| 23 | 68146600 | L.H. KICK PLATE | 1 |
| 24 | 65858500 | RUBBER PROFILE | 2 |
| 25 | 15688875 | SCREW | 4 |
| 26 | 14115480 | BLOCK | 4 |
| 27 | 68020910 | R.H. UNDERDOOR COVERING | 1 |
| 27 | 68021110 | L.H. UNDERDOOR COVERING | 1 |
| 28 | 64830600 | SCREW | 30 |
| 29 | 12643778 | WASHER | 12 |
| 30 | 12640677 | WASHER -Not as spare part- -Replaced by 12640678- | 18 |
| 30 | 12640678 | WASHER | 18 |
| 31 | 13046114 | NUT | 10 |
| 32 | 68021600 | L.H. LOWER AIR INTAKE GRILLE | 1 |
| 32 | 68021500 | R.H. LOWER AIR INTAKE GRILLE | 1 |
| 33 | 15783177 | SCREW | 4 |
| 34 | 68675700 | COMPLETE ENGINE INSPECTION PANEL | 1 |
| 35 | 68359400 | INSULATION | 1 |
| 36 | 65387300 | GASKET | 1 |
| 37 | 68308800 | STRIKER -Not as spare part- -Replaced by 68308800- | 2 |
| 37 | 68308800 | STRIKER | 2 |
| 38 | 16297024 | SCREW | 12 |
| 39 | 65841800 | GASKET -Not as spare part- -Replaced by 69647100- | 1 |
| 39 | 69647100 | GASKET | 1 |
| 40 | 64780500 | PININFARINA ORNAMENT | 2 |
| 41 | 63314400 | WASHER | 2 |
| 42 | 69573800 | R.H. REAR PANEL -Carbon panel- -Valid for GD- | 1 |
| 42 | 68615000 | R.H. REAR PANEL -Carbon panel- -Not for GD- | 1 |
| 42 | 68747500 | R.H. REAR PANEL -SMC panel- -Valid for GD- | 1 |
| 42 | 68035300 | R.H. REAR PANEL -SMC panel- -Not for GD- | 1 |
| 43 | 69573900 | L.H. REAR PANEL -Carbon panel- -Valid for GD- | 1 |
| 43 | 68615100 | L.H. REAR PANEL -Carbon panel- -Not for GD- | 1 |
| 43 | 68747600 | L.H. REAR PANEL -SMC panel- -Valid for GD- | 1 |
| 43 | 68035800 | L.H. REAR PANEL -SMC panel- -Not for GD- | 1 |
| 44 | 65971600 | L.H. UPPER ADHESIVE TRACK CLEARER | 1 |
| 44 | 68646300 | L.H. LOWER ADHESIVE TRACK CLEARER | 1 |
| 44 | 65971500 | R.H. UPPER ADHESIVE TRACK CLEARER | 1 |
| 44 | 68646200 | R.H. LOWER ADHESIVE TRACK CLEARER | 1 |
| 45 | 68646800 | R.H. AIR INTAKE ADHESIVE TRACK CLEARER | 1 |
| 45 | 68647000 | L.H. AIR INTAKE ADHESIVE TRACK CLEARER | 1 |
| 46 | 68646600 | L.H. REAR ADHESIVE TRACK CLEARER | 1 |
| 46 | 68646400 | R.H. REAR ADHESIVE TRACK CLEARER | 1 |
| 47 | 10442190 | BRACKET WITH SHEATH | 2 |
| 48 | 65004900 | TER EXHAUST TUBE | 2 |
| 49 | 64879700 | PLATE GASKET | 1 |
| 50 | 64879800 | GASKET | 1 |
| 51 | 681379 | L.H. CROSSMEMBER COVERING -Optional- -Leather version- | 1 |
| 51 | 68986700 | L.H. CROSSMEMBER COVERING -Optional- -Carbon version- | 1 |
| 51 | 681378 | R.H. CROSSMEMBER COVERING -Optional- -Leather version- | 1 |
| 51 | 68986300 | R.H. CROSSMEMBER COVERING -Optional- -Carbon version- | 1 |
| 52 | 65071800 | SCREW -Optional- | 2 |
| 53 | 65916400 | WASHER -Optional- | 2 |
| 54 | 66093900 | SPACER -Optional- | 2 |
| 55 | 66759600 | THREADED INSERT -Optional- | 2 |
| 56 | 69404900 | R.H. LOWER REAR INSULATION | 1 |
| 57 | 69404100 | R.H. LOWER FRONT INSULATION | 1 |
| 58 | 69405000 | L.H. LOWER REAR INSULATION | 1 |
| 59 | 69404200 | L.H. LOWER FRONT INSULATION | 1 |
| 60 | 69662900 | R.H. UPPER REAR INSULATION | 1 |
| 61 | 69663000 | R.H. UPPER FRONT INSULATION | 1 |
| 62 | 69663100 | L.H. UPPER REAR INSULATION | 1 |
| 63 | 69663200 | L.H. UPPER FRONT INSULATION | 1 |
| 64 | 70001205 | ADHESIVE FILM KIT | 2 |
| 65 | 14648490 | NUT WITH CAGE | 6 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
