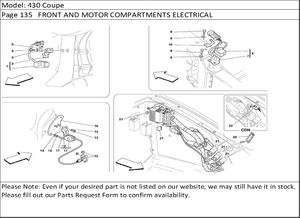

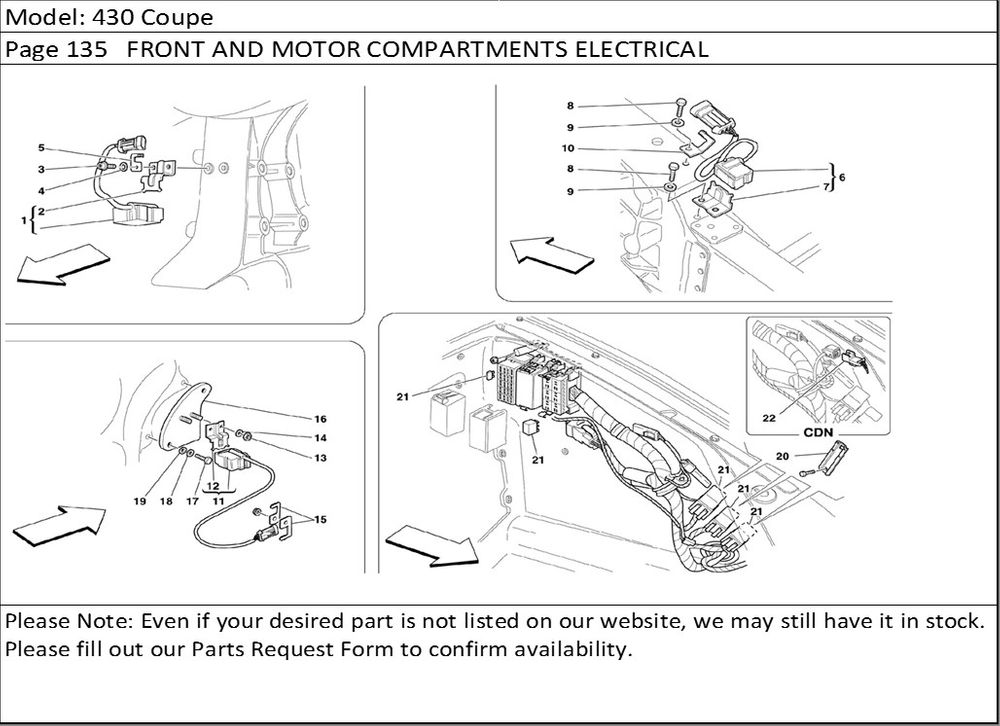

430 Coupe Page 135 FRONT AND MOTOR COMPARTMENTS ELECTRICAL

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	232667	FRONT VERTICAL ACCELERATION SENSOR -Valid till stock exhaustion-	2
1	232667	FRONT VERTICAL ACCELERATION SENSOR	2
2	178247	BRACKET	2
3	10902024	SCREW	4
4	12601274	WASHER	4
5	156198	CLIP	2
6	232672	REAR VERTICAL ACCELERATION SENSOR -Valid till stock exhaustion-	1
6	232672	REAR VERTICAL ACCELERATION SENSOR -Valid after stock exhaustion of 183343-	1
7	178251	BRACKET	1
8	10902024	SCREW	3
9	12601274	WASHER	3
10	162606	CLIP	2
11	232676	FRONT LATERAL ACCELERATION SENSOR -Valid till stock exhaustion-	2
11	232676	FRONT LATERAL ACCELERATION SENSOR -Valid after stock exhaustion of 183957-	2
12	178247	BRACKET	2
13	169180	NUT	4
14	12637824	WASHER	4
15	156198	CLIP	4
16	194973	L.H. BRACKET	1
16	194974	R.H. BRACKET	1
17	16043124	SCREW-M8x14-	2
17	15970324	SCREW-M10x16-	2
18	127496	WASHER	4
19	14496524	WASHER	4
20	155184	BRACKET	1
21	172875	FUSE 5 A.	4
21	172876	FUSE 7,5 A.	3
21	233100	RELAY 50 A. -Valid till stock exhaustion-	2
21	228646	RELAY 50 A. -Valid after stock exhaustion of 194909-	2
21	183275	HEADLIGHTS WASHER TIMER	1
21	172878	FUSE 15 A.	7
21	172880	FUSE 25 A.	1
21	172881	FUSE 30 A.	2
21	227286	MICRO-RELAY 30 A. -Valid after stock exhaustion of 161590-	7
21	161590	MICRO-RELAY 20 A. -Valid till stock exhaustion-	7
21	227286	MICRO-RELAY 30 A. -Valid after stock exhaustion of 172882-	4
21	172882	MICRO-RELAY 30 A. -Valid till stock exhaustion-	4
22	216006	DIURNAL LIGHT JUMPER -Valid for CDN-	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
