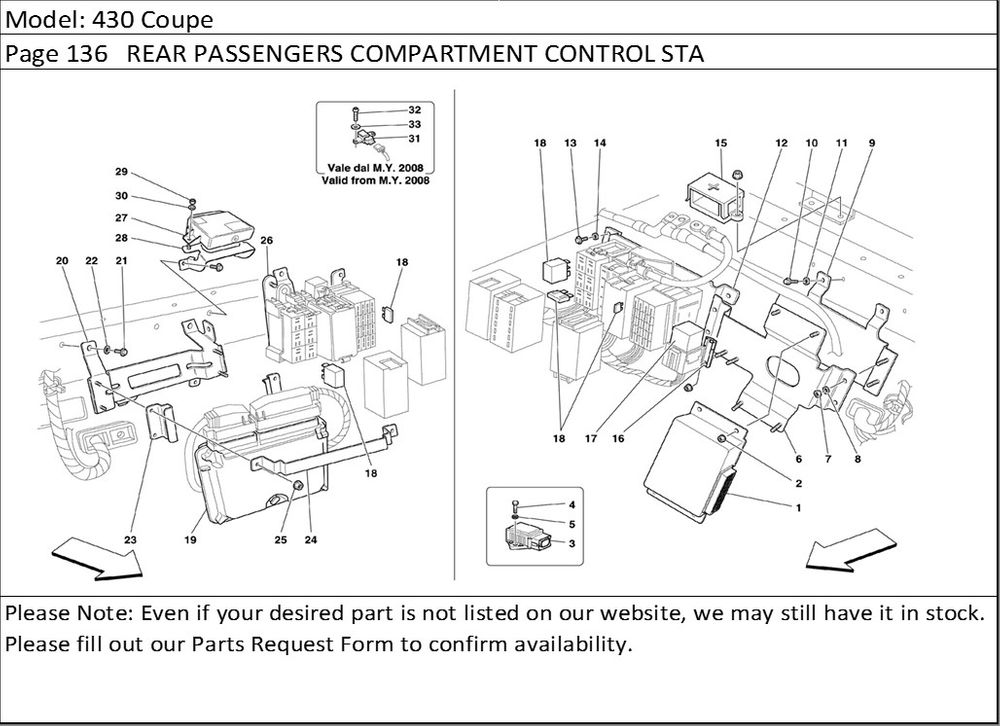

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 199174 | DIFFERENTIAL CONTROL STATION | 1 |
| 2 | 113647 | NUT | 4 |
| 3 | 188172 | VAW SENSOR | 1 |
| 4 | 10902424 | SCREW | 2 |
| 5 | 12601274 | WASHER | 2 |
| 6 | 67505400 | L.H. UPPER BRACKET | 1 |
| 7 | 12575411 | NUT | 4 |
| 8 | 12620474 | WASHER | 4 |
| 9 | 67420900 | L.H. LOWER BRACKET | 1 |
| 10 | 16296924 | SCREW | 3 |
| 11 | 12620474 | WASHER | 3 |
| 12 | 67420800 | L.H. SIDE BRACKET FOR CONTROL UNIT FIXING | 1 |
| 13 | 16296924 | SCREW | 6 |
| 14 | 12620474 | WASHER | 6 |
| 15 | 170114 | TERMINAL BOX -Arrived also with battery positive cable 198700- | 1 |
| 16 | 155184 | BRACKET | 1 |
| 17 | 233100 | RELAY 50 A. -Valid till stock exhaustion- | 2 |
| 17 | 228646 | RELAY 50 A. -Valid after stock exhaustion of 194909- | 2 |
| 18 | 172877 | FUSE 10 A. | 11 |
| 18 | 172878 | FUSE 15 A. | 16 |
| 18 | 172879 | FUSE 20 A. | 2 |
| 18 | 172881 | FUSE 30 A. | 7 |
| 18 | 170093 | FUSE 30 A. | 2 |
| 18 | 170061 | FUSE 50 A. | 1 |
| 18 | 172871 | FUSE 60 A. | 2 |
| 18 | 172876 | FUSE 7,5 A. | 5 |
| 18 | 172875 | FUSE 5 A. | 4 |
| 18 | 227285 | MICRO-RELAY 20/10 A. -Valid after stock exhaustion of 161591 - | 2 |
| 18 | 172882 | MICRO-RELAY 30 A. -Valid till stock exhaustion- | 4 |
| 18 | 227286 | MICRO-RELAY 30 A. -Valid after stock exhaustion of 172882- | 4 |
| 18 | 183662 | RELAY FOR IMMOBILIZER/DIAGNOSIS -Valid till stock exhaustion- | 1 |
| 18 | 227285 | MICRO-RELAY 20/10 A. -Valid after stock exhaustion of 183662- | 1 |
| 18 | 161590 | MICRO-RELAY 20 A. -Valid till stock exhaustion- | 11 |
| 18 | 227286 | MICRO-RELAY 30 A. -Valid after stock exhaustion of 161590- | 11 |
| 18 | 227285 | MICRO-RELAY 20/10 A. -Valid till stock exhaustion- | 2 |
| 19 | 247774 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for GB and J- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 19 | 224668 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Valid for Taiwan- | 1 |
| 19 | 247773 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- -Not for launch control and easy output- | 1 |
| 19 | 227029 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from M.Y. 06- -Valid from gearbox No. 3781- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 19 | 227029 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from M.Y. 06- -Valid from gearbox No. 3781- -Not as spare part- -Replaced by 227029- | 1 |
| 19 | 222813 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from M.Y. 06- -Valid till gearbox No. 3780- | 1 |
| 19 | 217781 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid till M.Y. 06- | 1 |
| 19 | 247772 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN, GD and J- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 19 | 196228 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid till gearbox No. 3269- | 1 |
| 19 | 222812 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid from gearbox No. 3270 till gearbox No. 3780- | 1 |
| 19 | 227028 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid from gearbox No. 3781- -Not as spare part- -Replaced by 227028- | 1 |
| 19 | 227028 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid from gearbox No. 3781- -Valid for Noise kit- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 19 | 230462 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Not for Noise kit- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 20 | 67421000 | R.H. LOWER BRACKET | 1 |
| 21 | 16296924 | SCREW | 4 |
| 22 | 12620474 | WASHER | 4 |
| 23 | 67420500 | UPPER BRACKET | 2 |
| 24 | 68277800 | CONTROL UNIT FIXING BRACKET -Valid for F1- | 1 |
| 25 | 12575411 | NUT | 4 |
| 26 | 67421100 | R.H. BRACKET | 1 |
| 27 | 227934 | PARKING SENSORS CONTROL STATION -Parking sensors- -Optional- | 1 |
| 28 | 68813500 | CONTROL UNIT FIXING BRACKET -Parking sensors- -Optional- | 1 |
| 29 | 113647 | NUT -Parking sensors- -Optional- | 2 |
| 30 | 12601174 | WASHER -Parking sensors- -Optional- | 2 |
| 31 | 206071 | ACCELERATION SENSOR -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 32 | 62940900 | SCREW -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 2 |
| 33 | 12644478 | WASHER -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
