Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

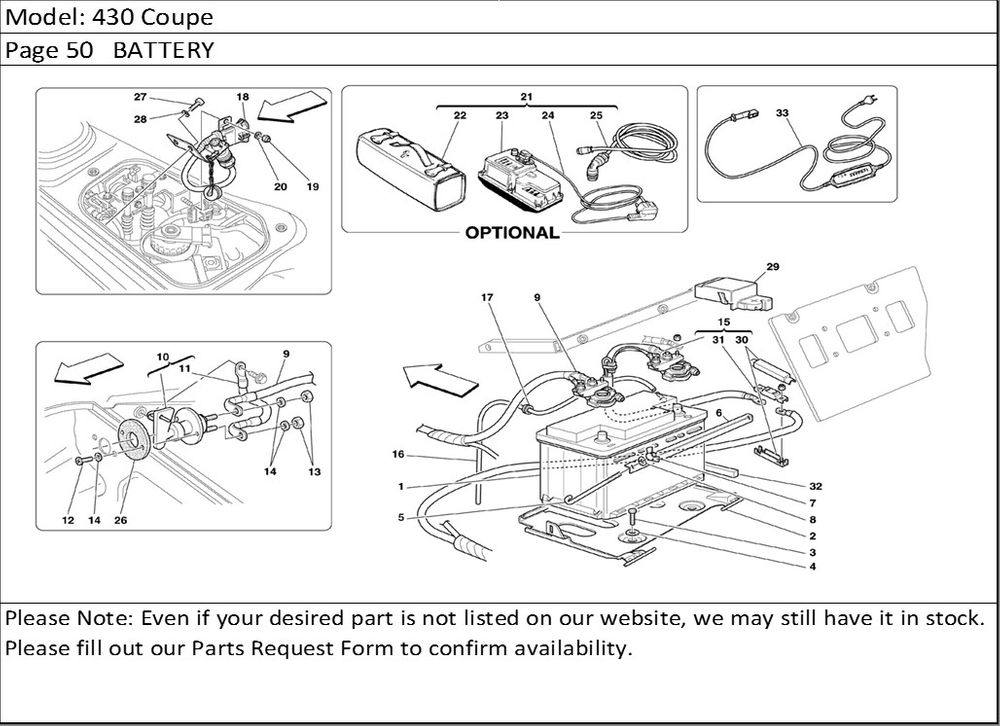

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 168852 | BATTERY 12V TYPE VR760 | 1 |
| 2 | 67943100 | BATTERY BIN | 1 |
| 3 | 10902124 | SCREW | 3 |
| 4 | 12640624 | WASHER | 3 |
| 5 | 68138000 | TIE ROD | 2 |
| 6 | 69836200 | BRACKET -Not as spare part- -Replaced by 69836200- | 1 |
| 6 | 69836200 | BRACKET | 1 |
| 7 | 102741 | NUT | 2 |
| 8 | 14499324 | WASHER | 2 |
| 9 | 240646 | DASHBOARD CONNECTION CABLES -Full optional- -HI FI Bose system- -Not for GD- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 9 | 240644 | DASHBOARD CONNECTION CABLES -Optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71979- | 1 |
| 9 | 218507 | DASHBOARD CONNECTION CABLES -Valid for GD- -Not as spare part- -Replaced by 218507- | 1 |
| 9 | 218507 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid till car Ass. Nr. 61554- | 1 |
| 9 | 220462 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid from car Ass. Nr. 61555- -Valid till Ass.Nr.65448- | 1 |
| 9 | 227585 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Valid from Ass. Nr. 65449- -Valid till Ass.Nr.71567- | 1 |
| 9 | 232682 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr. | 1 |
| 9 | 241955 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr. | 1 |
| 9 | 241956 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -HI FI Bose system- -Valid from | 1 |
| 9 | 228204 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. 65449- -Valid till Ass. Nr. 71567- | 1 |
| 9 | 232683 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. | 1 |
| 9 | 241954 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr.71979- | 1 |
| 9 | 240643 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71979- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 9 | 232677 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 9 | 218503 | DASHBOARD CONNECTION CABLES -Not for GD- -Valid till stock exhaustion- | 1 |
| 9 | 218384 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid till Ass. Nr. 61554- | 1 |
| 9 | 218503 | DASHBOARD CONNECTION CABLES -Full optional- -Not for GD- -Valid till Ass. Nr. 61554- | 1 |
| 9 | 231520 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 61555- -Valid till Ass. Nr. 67217 for USA and CDN- -Valid till stock exhaustion for not USA and CDN- -Valid till Ass. Nr.71567- | 1 |
| 9 | 232674 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 9 | 240642 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 71979- | 1 |
| 9 | 231520 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr.67218 for USA and CDN- -Valid after stock exhaustion of 220460 for not USA e CDN- -Valid till Ass. Nr. 71567- | 1 |
| 9 | 232679 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid for USA and CDN- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 9 | 233837 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid for USA and CDN- -Valid from Ass.Nr.71979- | 1 |
| 9 | 220461 | DASHBOARD CONNECTION CABLES -Full optional- -Not for GD- -Valid from car Ass. Nr. 61555- -Valid till Ass. Nr. 65970- | 1 |
| 9 | 227584 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 65971- -Valid till Ass. Nr. 67217- | 1 |
| 9 | 231519 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 67218- -Valid till Ass. Nr. 71567- | 1 |
| 10 | 240470 | CUT-OUT SWITCH ASSEMBLY | 1 |
| 10 | 240470 | CUT-OUT SWITCH ASSEMBLY -Not as spare part- -Replaced by 240470- | 1 |
| 11 | 196451 | GROUND CABLE | 1 |
| 12 | 13272472 | SCREW | 2 |
| 13 | 10721911 | NUT | 2 |
| 14 | 14496277 | WASHER | 4 |
| 15 | 233463 | COMPLETE BATTERY POSITIVE CABLE -Valid for GD- -Valid after stock exhaustion of 210793- | 1 |
| 15 | 210793 | COMPLETE BATTERY POSITIVE CABLE -Valid for GD- -Valid till stock exhaustion- | 1 |
| 15 | 233462 | COMPLETE BATTERY POSITIVE CABLE -Not for GD- -Valid after stock exhaustion of 198700- | 1 |
| 15 | 233462 | COMPLETE BATTERY POSITIVE CABLE -Not for GD- -Valid till stock exhaustion- | 1 |
| 16 | 181056 | BATTERY VENT PIPE | 1 |
| 17 | 10396280 | CABLE BUSHING | 1 |
| 18 | 200857 | BATTERY CHARGING CONNECTION CABLE -Optional- | 1 |
| 19 | 102741 | NUT -Optional- | 1 |
| 20 | 10519424 | WASHER -Optional- | 1 |
| 21 | 178682 | BATTERY CHARGER KIT -Optional- | 1 |
| 22 | 65699200 | BATTERY BAG CASE -Optional- | 1 |
| 23 | 177791 | BATTERY CHARGER -230V- -Optional- | 1 |
| 24 | 177794 | ER SUPPLY CABLE -Optional- | 1 |
| 25 | 178676 | CABLE WITH CONNECTOR -Optional- | 1 |
| 26 | 198207 | GASKET | 1 |
| 27 | 10902224 | SCREW | 1 |
| 28 | 12644424 | WASHER | 1 |
| 29 | 185418 | PROTECTION COVER | 1 |
| 30 | 198703 | MEGA FUSE SUPPORT | 1 |
| 31 | 198704 | MEGA FUSE | 1 |
| 32 | 217351 | GASKET | 1 |
| 33 | 231503 | BATTERY CHARGER KIT -Not for USA, CDN, GB, J- -Optional- | 1 |
| 33 | 260121 | BATTERY CHARGER KIT -Valid for USA and CDN- -Optional- | 1 |
| 33 | 231506 | BATTERY CHARGER KIT -Valid for GB- -Optional- | 1 |
| 33 | 236798 | BATTERY CHARGER KIT -Valid for J- -Optional- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
