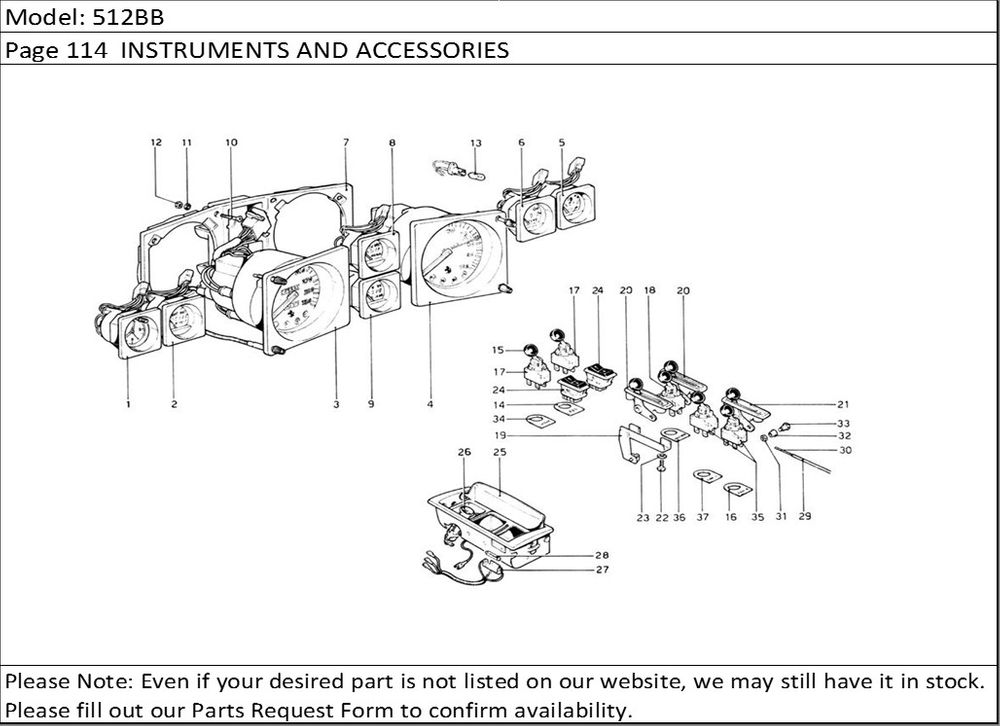

512BB Page 114 INSTRUMENTS AND ACCESSORIES

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	50105204	Orologio elettronico	1
2	50104900	Termometro olioNon vale per GD	1
2	50105501	Termometro olioVale per GD	1
3	50105808	ContachilometriNon vale per GB-EIRE	1
3	50106103	ContamigliaVale per GB-EIRE	1
4	50340009	Contagiri	1
5	50105105	Indicatore livello carburanteNon vale per GD	1
5	50105600	Indicatore livello carburanteVale per GD	1
6	50321702	Amperometro	1
7	50215201	Pannello portastrumentiNon vale per GD	1
7	50215300	Pannello portastrumentiVale per GD	1
8	50215409	Termometro acqua	1
9	50215508	Manometro olio	1
10	10342301	Vite	6
11	10615270	Rondella elastica	6
12	10794011	Dado	6
13	20083309	Lampada	1
14	50316306	Targhetta ? FOG ?Non vale per B	1
14	50322601	Targhetta ? RF ?Vale per B	1
15	50017201	Pomello	7
16	50316108	Targhetta ? FAN/R ?	1
17	60053709	Interruttore starter e fendinebbia	2
18	60053600	Interruttore emergenza	1
19	50319600	Ponticello fiss. levetta defroster Dx	2
19	40136905	Ponticello fiss. levetta defroster Sx	1
20	50127406	Levetta comando defroster	2
21	50319508	Levetta comando rubinetto	1
22	50209402	Vite	6
23	12638101	Rondella	6
24	30073407	Interruttore alzacristalli	2
25	50049402	Posacenere	2
26	50065606	Accendisigari	2
27	50117209	Plafoniera per posacenere	2
28	20163002	Lampada	2
29	50101005	Guaina per cavo	1
30	50101203	Cavo comando rubinetto acqua	1
31	10794011	Dado	1
32	20046900	Boccola	1
33	20091609	Vite	1
34	50316405	Targhetta ? CHOKE ?	1
35	50322007	Interruttori ventilatori	2
36	50316009	Targhetta ? HAZARD ?	1
37	50316207	Targhetta ? FAN/L ?	1
29	820340	RH THREE POINT SEAT BELT -Not for GD-	1
29	829594	RH THREE POINT SEAT BELT -Applicable for GD-	1
30	82447100	SCREW	2
31	65408700	NUT	2
32	82140000	SCREW	8
33	66327100	SCREW	8
34	83491700	BELT GUIDE SCREW COVER -Applicable for USA and CDN-	2
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
