Home > Page 19 SECONDARY AIR PUMP

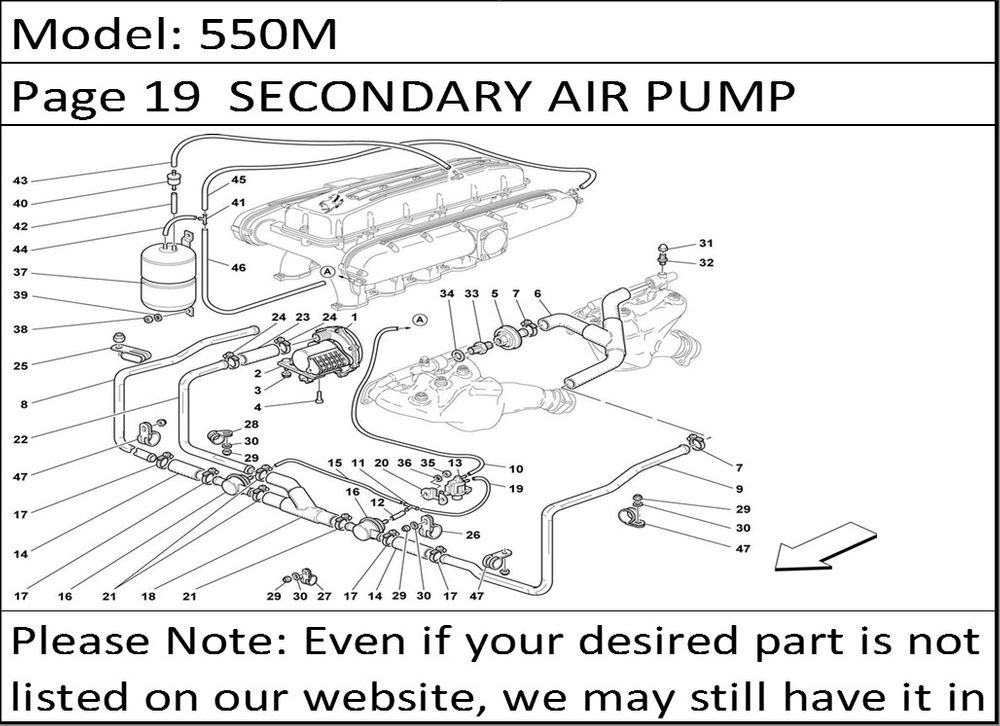

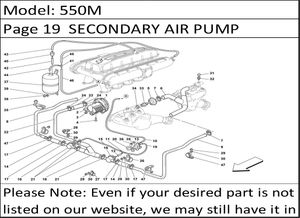

Page 19 SECONDARY AIR PUMP

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	165903	ELECTRIC AIR PUMP WITH BRACKET	1
2	149111	BRACKET	1
3	15896214	NUT	3
4	14306724	SCREW	1
5	148494	SECONDARY AIR VALVE	4
6	154873	CONNECTION PIPE	2
7	161490	SCREW COLLAR	6
8	155103	R.H. PIPE	1
9	168369	L.H. PIPE	1
10	117170	PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER -Valid from Ass. Nr. 22938	1
10	115665	PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER -Valid till Ass. Nr. 22937	1
11	121793	3-WAY UNION	1
12	121831	PIPE FROM UNION TO L.H. CUT-OFF VALVE	1
13	159177	SOLENOID VALVE	1
14	165446	RUBBER PIPE	2
15	115412	PIPE FROM R.H. CUT-OFF VALVE TO UNION	1
16	147390	CUT-OFF VALVE	2
17	12180290	SCREW COLLAR	4
18	154871	CONNECTION SLEEVE	1
19	159539	PIPE FROM UNION TO SOLENOID VALVE	1
20	145472	SMALL PLATE	1
21	13000490	SCREW COLLAR	3
22	168368	PIPE	1
23	155116	SLEEVE	1
24	12180290	SCREW COLLAR	4
25	61712500	BRACKET WITH SHEATH	1
26	10441990	BRACKET WITH SHEATH	2
27	10441490	BRACKET WITH SHEATH	1
28	10441990	BRACKET WITH SHEATH	2
29	102948	NUT	6
30	14499324	WASHER	6
31	150595	CAP NUT	4
32	152630	UNION	4
33	152631	UNION	2
34	10257460	GASKET	4
35	169180	NUT	2
36	14496324	WASHER	2
37	175374	DEPRESSION ACCUMULATION TANK	1
38	102741	NUT	2
39	12646601	WASHER	2
40	62507200	NONRETURN VALVE	1
41	121793	3-WAY UNION	1
42	121831	PIPE FROM UNION TO L.H. CUT-OFF VALVE	1
43	124347	RUBBER HOSE FROM R.H. SUCTION MANIFOLD TO VALVE	1
44	121831	PIPE FROM UNION TO L.H. CUT-OFF VALVE	1
45	122761	RUBBER PIPE FROM UNION TO SOLENOID VALVE	1
46	168432	RUBBER PIPE FROM UNION TO SOLENOID VALVE -Not for GD	1
46	124032	RUBBER PIPE FROM UNION TO SOLENOID VALVE -Valid for GD	1
47	10441790	BRACKET WITH SHEATH	3
29	820340	RH THREE POINT SEAT BELT -Not for GD-	1
29	829594	RH THREE POINT SEAT BELT -Applicable for GD-	1
30	82447100	SCREW	2
31	65408700	NUT	2
32	82140000	SCREW	8
33	66327100	SCREW	8
34	83491700	BELT GUIDE SCREW COVER -Applicable for USA and CDN-	2
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
