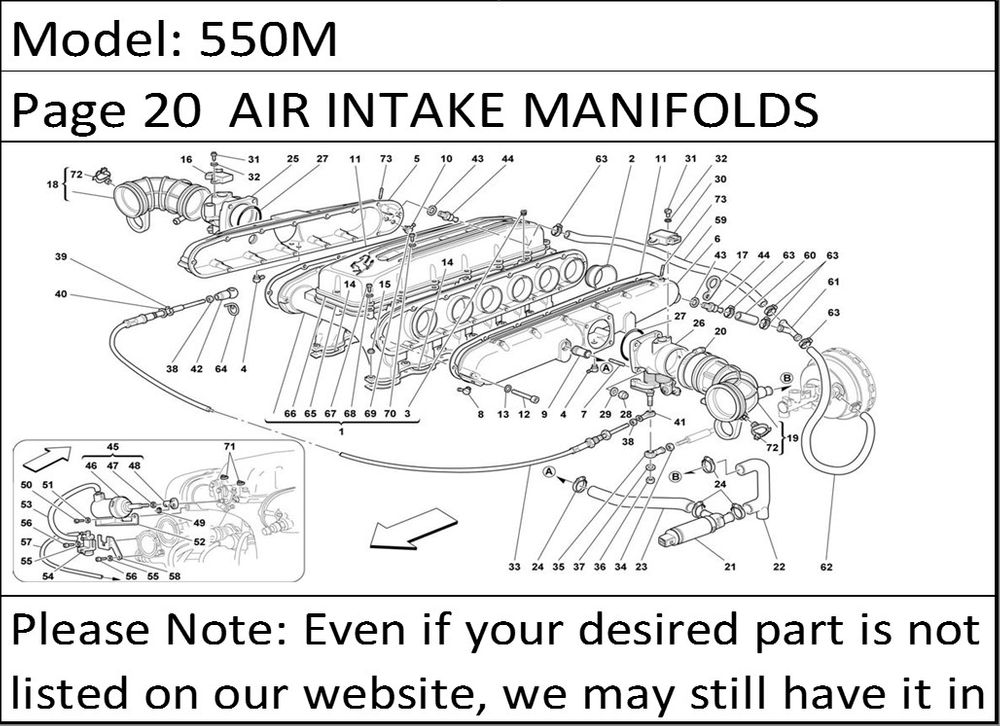

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 183032 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32102 GS and from car Ass. Nr. 321 | 1 |
| - | 183031 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32102 GS and from car Ass. Nr. 3210 | 1 |
| - | 183051 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32056 -Valid for USA M.Y. 99 and CD | 1 |
| - | 183052 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32056 -Valid for USA M.Y. 99 and C | 1 |
| - | 183053 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32057 -Valid for USA M.Y. 99 and CD | 1 |
| - | 177538 | COMPLETE SUCTION MANIFOLD WITH ACTUATOR -Valid from engine Nr. 49834 | 1 |
| - | 183054 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32057 -Valid for USA M.Y. 99 and C | 1 |
| - | 171619 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32101 GS and till car Ass. Nr. 3210 | 1 |
| - | 171620 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32101 GS and till car Ass. Nr. 321 | 1 |
| 1 | 162768 | SUCTION MANIFOLD -Valid till engine Nr. 49833 -Not as spare part -With complete suction manifolds | 1 |
| 1 | 177539 | SUCTION MANIFOLD -Valid from engine Nr. 49834 -Not as spare part -With complete suction manifolds | 1 |
| 2 | 168161 | END MANIFOLD | 12 |
| 3 | 13525570 | THREADED INSERT | 6 |
| 4 | 174818 | UNION -Valid for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 4 | 128016 | UNION -Not for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 7 | 13541324 | STUD | 8 |
| 8 | 128016 | UNION -Not for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 9 | 143286 | UNION | 2 |
| 10 | 128016 | UNION -Not for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 11 | 154562 | GASKET | 2 |
| 12 | 156828 | SCREW | 28 |
| 13 | 12601274 | WASHER | 28 |
| 14 | 225462 | GASKET | 2 |
| 15 | 159601 | NUT | 24 |
| 16 | 172750 | POTENTIOMETER FOR R.H. THROTTLE VALVE | 1 |
| 17 | 154754 | BRACKET | 1 |
| 18 | 180140 | R.H. SLEEVE -Valid from engine Nr. 52416 | 1 |
| 18 | 159830 | R.H. SLEEVE -Valid till engine Nr. 52415 | 1 |
| 19 | 159831 | L.H. SLEEVE -Valid till engine Nr. 52415 | 1 |
| 19 | 180141 | L.H. SLEEVE -Valid from engine Nr. 52416 | 1 |
| 20 | 13001190 | SCREEW COLLAR | 2 |
| 21 | 142432 | REGULATOR FOR IDLE ADJUSTMENT | 2 |
| 22 | 159120 | PIPE FROM REGULATOR TO SLEEVE | 2 |
| 23 | 171759 | PIPE FROM REGULATOR TO PLENUM CHAMBER | 2 |
| 24 | 12180290 | SCREW COLLAR | 8 |
| 25 | 171006 | COMPLETE R.H. THROTTLE HOLDER -Not for GD | 1 |
| 25 | 174463 | COMPLETE R.H. THROTTLE HOLDER -Valid for GD | 1 |
| 26 | 171007 | COMPLETE L.H. THROTTLE HOLDER -Not for GD | 1 |
| 26 | 171203 | COMPLETE L.H. THROTTLE HOLDER -Valid for GD | 1 |
| 27 | 142934 | O.R. GASKET | 2 |
| 28 | 101239 | NUT | 8 |
| 29 | 14496424 | WASHER | 8 |
| 30 | 158170 | POTENTIOMETER FOR L.H. THROTTLE VALVE | 1 |
| 31 | 10444521 | SCREW | 4 |
| 32 | 12601074 | WASHER | 4 |
| 33 | 178200 | PUSH-PULL CABLE | 1 |
| 34 | 15896470 | NUT | 2 |
| 35 | 111530 | BALL JOINT | 1 |
| 36 | 113647 | NUT | 1 |
| 37 | 14496324 | WASHER | 1 |
| 38 | 15896470 | NUT | 2 |
| 39 | 16160976 | FLEXIBLE RING | 1 |
| 40 | 12638624 | WASHER | 1 |
| 41 | 111530 | BALL JOINT | 1 |
| 42 | 173999 | BALL JOINT | 1 |
| 43 | 10298460 | GASKET | 2 |
| 44 | 147978 | NONRETURN VALVE | 2 |
| 45 | 168275 | COMPLETE ACTUATOR | 1 |
| 46 | 168275 | ACTUATOR | 1 |
| 47 | 173601 | NUT | 1 |
| 48 | 173596 | BALL JOINT | 1 |
| 49 | 173598 | SEEGER RING | 1 |
| 50 | 173599 | SCREW | 2 |
| 51 | 173600 | WASHER | 2 |
| 52 | 173595 | SUPPORT | 1 |
| 53 | 168248 | RUBBER PIPE | 1 |
| 54 | 159177 | SOLENOID VALVE | 1 |
| 55 | 12601274 | WASHER | 28 |
| 56 | 14305224 | SCREW | 2 |
| 57 | 122761 | RUBBER PIPE FROM UNION TO SOLENOID VALVE | 1 |
| 58 | 168246 | SMALL PLATE | 1 |
| 59 | 173841 | RUBBER PIPE FROM R.H. VALVE TO UNION | 1 |
| 60 | 111023 | RUBBER PIPE FROM L.H. VALVE TO UNION | 1 |
| 61 | 100881 | UNION | 1 |
| 62 | 173842 | RUBBER PIPE FROM UNION TO BRAKE BOOSTER -Valid for GD | 1 |
| 62 | 168386 | RUBBER PIPE FROM UNION TO BRAKE BOOSTER -Not for GD | 1 |
| 63 | 13000390 | SCREW COLLAR | 5 |
| 64 | 174001 | CLIP | 1 |
| 65 | 162904 | GASKET | 1 |
| 66 | 162903 | COVER | 1 |
| 67 | 14305424 | SCREW | 16 |
| 68 | 12601274 | WASHER | 28 |
| 69 | 163774 | SCREW | 5 |
| 70 | 12601174 | WASHER | 5 |
| 71 | 178441 | SEAL RING | 2 |
| 72 | 180139 | CLIP -Valid from engine Nr. 52416 | 6 |
| 73 | 11500024 | STUD -Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 GD and from car Ass. Nr. 32057 M. | 2 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
