Page 10 FUEL TANK INSULATION AND PROTECTION

Click On Diagram To Enlarge

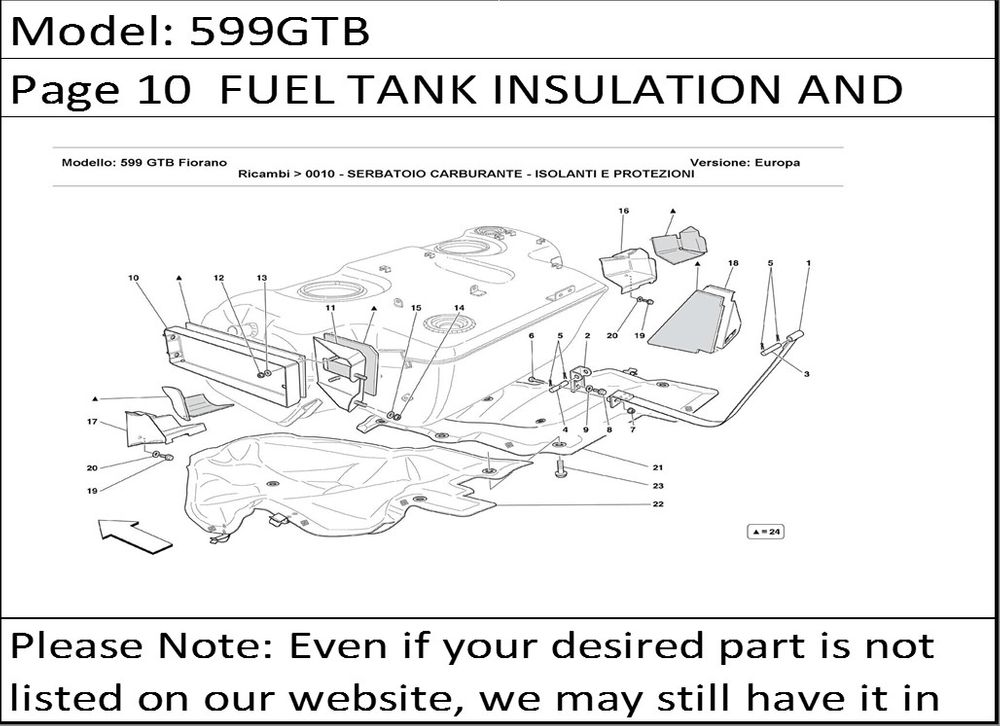

599GTB Page 10 FUEL TANK INSULATION AND PROTECTION

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	217903	FUEL TANK FASTENER	2
2	217904	LOWER BRACKET	2
3	210136	UPPER PIN	2
4	217902	LOWER PIN	2
5	194996	FUEL TANK FASTENER	2
6	223883	SCREW	2
7	14058619	NUT	2
8	16288434	SCREW	4
9	12646824	WASHER	4
10	222034	L.H. SIDE RETAINING	1
10	222035	R.H. SIDE RETAINING	1
11	222038	L.H. REGISTER	1
11	222042	R.H. REGISTER	1
12	133989	NUT	4
13	127496	WASHER	4
14	14058519	NUT	4
15	12646824	WASHER	4
16	222037	R.H. FRONT RETAINING	1
17	222036	L.H. FRONT RETAINING	1
18	220222	REAR RETAINING	1
19	16287024	SCREW	8
20	12625224	WASHER	8
21	224513	R.H. PANEL	1
22	224514	L.H. PANEL	1
23	16286124	SCREW	7
24	228482	RUBBER THICKNESS KIT	1
29	820340	RH THREE POINT SEAT BELT -Not for GD-	1
29	829594	RH THREE POINT SEAT BELT -Applicable for GD-	1
30	82447100	SCREW	2
31	65408700	NUT	2
32	82140000	SCREW	8
33	66327100	SCREW	8
34	83491700	BELT GUIDE SCREW COVER -Applicable for USA and CDN-	2
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
