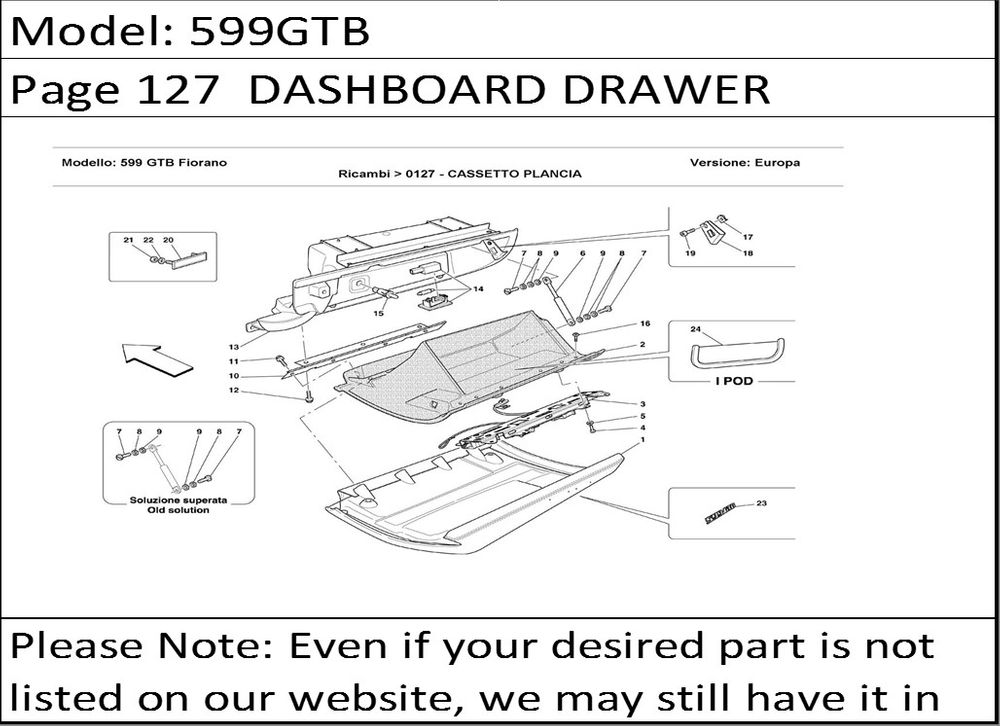

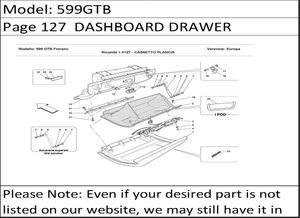

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 697116 | SHUTTER ASSEMBLY-Not for USA, CDN and RHD- | 1 |
1 | 691584 | SHUTTER ASSEMBLY-Valid for USA and CDN- | 1 |
1 | 693721 | SHUTTER ASSEMBLY-Valid for RHD- | 1 |
1 | 699580 | SHUTTER ASSEMBLY-Valid for J- | 1 |
2 | 69950600 | DOOR FRAME-Standard--Not for RHD--Not as spare part--Replaced by 69950600- | 1 |
2 | 69950600 | DOOR FRAME-Standard--Not for RHD- | 1 |
2 | 69951400 | DOOR FRAME-Standard--Valid for RHD--Not as spare part--Replaced by 69951400- | 1 |
2 | 69951400 | DOOR FRAME-Standard--Valid for RHD- | 1 |
2 | 69950800 | DOOR FRAME-I POD presetting version--Not for RHD--Not as spare part--Replaced by 69950800- | 1 |
2 | 69950800 | DOOR FRAME-I POD presetting version--Not for RHD- | 1 |
2 | 69951600 | DOOR FRAME-I POD presetting version--Valid for RHD--Not as spare part--Replaced by 69951600- | 1 |
2 | 69951600 | DOOR FRAME-I POD presetting version--Valid for RHD- | 1 |
3 | 191572 | SHUTTER LOCK | 1 |
4 | 13273977 | SCREW | 5 |
5 | 12637878 | WASHER | 5 |
6 | 65847700 | CLOVE BOX STABILUS | 1 |
7 | 65686200 | SCREW | 2 |
8 | 65686300 | WASHER-Q.ty 2 in the old solution- | 4 |
9 | 13579106 | WASHER-Not as spare part--Replaced by 13579178- | 2 |
9 | 13579178 | WASHER | 2 |
10 | 66854600 | COMPLETE HINGE | 1 |
11 | 16285014 | SCREW | 4 |
12 | 16284914 | SCREW | 3 |
13 | 69950500 | COMPLETE DRAWER CONTAINER-Not for RHD--Not as spare part--Replaced by 69950600- | 1 |
13 | 69950500 | COMPLETE DRAWER CONTAINER-Not for RHD- | 1 |
13 | 69951300 | COMPLETE DRAWER CONTAINER-Valid for RHD--Not as spare part--Replaced by 69951300- | 1 |
13 | 69951300 | COMPLETE DRAWER CONTAINER-Valid for RHD- | 1 |
14 | 188250 | DOME LAMP | 1 |
15 | 188266 | PUSH BUTTON | 1 |
16 | 64460500 | SCREW | 6 |
17 | 14370874 | BRACKET | 2 |
18 | 67332500 | R.H. STRIKER | 1 |
18 | 67332600 | L.H. STRIKER | 1 |
19 | 13026121 | SCREW | 2 |
20 | 69863000 | CUSTOMER PLATE-Not for J- | 1 |
20 | 69960500 | CUSTOMER PLATE-Valid for J- | 1 |
21 | 16101711 | NUT | 2 |
22 | 14496105 | WASHER | 2 |
23 | 69850000 | 599GTB ORNAMENT-Not for J- | 1 |
23 | 69958500 | 599 ORNAMENT-Valid for J- | 1 |
24 | 69858000 | I POD SUPPORTIG POCKET-I POD presetting version--Not for RHD- | 1 |
24 | 69861100 | I POD SUPPORTIG POCKET-I POD presetting version--Valid for RHD- | 1 |
29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
30 | 82447100 | SCREW | 2 |
31 | 65408700 | NUT | 2 |
32 | 82140000 | SCREW | 8 |
33 | 66327100 | SCREW | 8 |
34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
29 | 10902424 | SCREW | 2 |
30 | 116413 | WASHER | 2 |
31 | 63234200 | SCREW | 2 |
32 | 12646801 | WASHER | 2 |
33 | 185378 | CLIP | 3 |
34 | 183672 | BULB -For gas lamps | 2 |
35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
36 | 65705400 | BRACKET -For gas lamps | 2 |
37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
38 | 155751 | CLIP -Valid for USA and CDN | 4 |
39 | 14084111 | NUT -Valid for USA and CDN | 8 |
40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
41 | 66120200 | INSULATION | 1 |
42 | 14190190 | NUT WITH CAGE | 2 |
43 | 64529600 | SPACER | 8 |
4 | 66325702 | Description not available | |
4 | 67259102 | Description not available | |
4 | 66325725 | Description not available | |
4 | 67259127 | Description not available | |
