Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

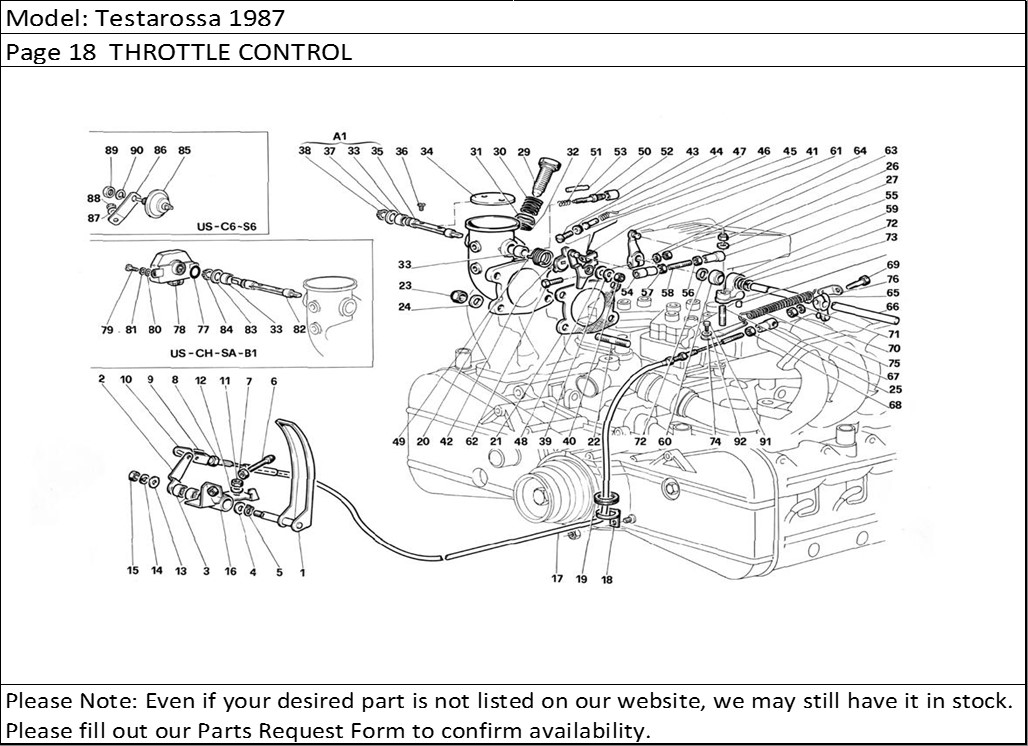

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 115393 | Accelerator pedal | 1 |
2 | 122184 | Lever | 1 |
3 | 101677 | Roller cage | 2 |
4 | 108576 | Shim | 1 |
5 | 11066076 | Seeger ring | 1 |
6 | 105232 | Adjusting screw | 1 |
7 | 16102311 | Nut | 2 |
8 | 10725911 | Locknut | 1 |
9 | 100655 | Fork | 1 |
10 | 100656 | Pin with strap | 1 |
11 | 16100811 | Nut | 2 |
12 | 106852 | Washer | 2 |
13 | 10519601 | Spacer | 1 |
14 | 106852 | Washer | 1 |
15 | 16100811 | Nut | 1 |
16 | 115396 | Accelerator pedal support | 1 |
17 | 123190 | Cable On exhaustion use no. 127445 | 1 |
18 | 124220 | Cable supporting bracket | 1 |
19 | 10396680 | Wire carrier | 1 |
20 | 122892 | RH throttle body, completeFor US | 1 |
20 | 122893 | LH throttle body, completeFor A1 | 1 |
20 | 123017 | LH throttle body, completeFor US | 1 |
20 | 127139 | RH throttle body, completeFor B1 - CH - SA | 1 |
20 | 122891 | RH throttle body, completeFor A1 | 1 |
20 | 127140 | LH throttle body, completeFor B1 - CH - SA | 1 |
21 | 121123 | Gasket | 2 |
22 | 13541121 | Stud | 8 |
23 | 12575411 | Nut | 8 |
24 | 12601271 | Washer | 8 |
25 | 13543421 | Stud | 2 |
26 | 16104411 | Nut | 2 |
27 | 12601371 | Washer | 2 |
29 | 125716 | Dowel | 2 |
29 | 119308 | Air adjusting screw | 2 |
30 | 113571 | Spring | 2 |
31 | 115204 | Cap | 2 |
32 | 114919 | Grommet | 2 |
33 | 118128 | Bushing (Not supplied) | 4 |
34 | 113563 | Throttle (Not supplied) | 2 |
35 | 122894 | Throttle shaft (Not supplied) | 2 |
36 | 115361 | Screw | 4 |
37 | 128944 | Spring washer | 2 |
38 | 11065976 | Seeger ring | 2 |
39 | 113566 | Lock washer | 2 |
40 | 122897 | Nut | 2 |
41 | 122906 | L.H. throttle control lever | 1 |
41 | 122903 | R.H. throttle control lever | 1 |
42 | 122902 | R.H. driven lever | 1 |
42 | 122905 | L.H. driven lever | 1 |
43 | 122909 | Screw | 2 |
44 | 122910 | Nut | 2 |
45 | 122913 | Pin | 2 |
46 | 122914 | Spring | 2 |
47 | 122915 | Cotter pin | 2 |
48 | 122900 | Spacer | 2 |
49 | 122912 | R.H. throttle return spring | 1 |
49 | 122911 | L.H. throttle return spring | 1 |
50 | 114366 | Adjusting screw | 2 |
51 | 107824 | Spring | 2 |
52 | 111182 | Protection cup | 2 |
53 | 114367 | Check pin | 2 |
54 | 105617 | HeadR.H. thread | 2 |
55 | 105619 | HeadL.H. thread | 2 |
56 | 105586 | NutL.H. thread | 2 |
57 | 15896411 | NutR.H. thread | 2 |
58 | 121091 | Tie rod | 2 |
59 | 121053 | Support for accelerator control rod | 2 |
60 | 107620 | Bail joint | 2 |
61 | 121081 | R.H. lever on accelerator control rod | 1 |
61 | 126029 | L.H. lever on accelerator control rod | 1 |
62 | 125506 | Screw | 2 |
63 | 16100811 | Nut | 2 |
64 | 106852 | Washer | 2 |
65 | 121475 | Lever for cable accelerator | 1 |
66 | 121474 | Relay shaft | 1 |
67 | 105617 | Head R.H. thread | 1 |
68 | 15896411 | Nut | 1 |
69 | 16043821 | Screw | 1 |
70 | 16100811 | Nut | 1 |
71 | 106852 | Washer | 1 |
72 | 121477 | Spacer | 2 |
73 | 11066076 | Seeger ringFor A1 | 1 |
74 | 102952 | Fixing spring plate | 1 |
74 | 122818 | Fixing spring plate For B1 - US - CH - SA | 1 |
75 | 102951 | Spring for lever | 1 |
76 | 125044 | Fixing spring plate | 1 |
77 | 116736 | Seal ring | 1 |
78 | 121517 | Microswitch For US - CH - S6 | 1 |
78 | 131403 | MicroswitchFor B1 - S7 | 1 |
79 | 10444521 | Screw | 2 |
80 | 10519201 | Washer | 2 |
81 | 106848 | Washer | 2 |
82 | 122895 | L.H. throttle shaft | 1 |
83 | 121835 | L.H. spring washer | 1 |
84 | 104182 | L.H. seeger ring | 1 |
85 | 121748 | Differential pressure switch | 1 |
86 | 125845 | Bracket | 1 |
87 | 106850 | Washer | 1 |
88 | 10725911 | Nut | 1 |
89 | 10791211 | Nut | 1 |
90 | 106854 | Washer | 1 |
91 | 10979411 | Screw | 1 |
92 | 12601271 | Washer | 1 |
