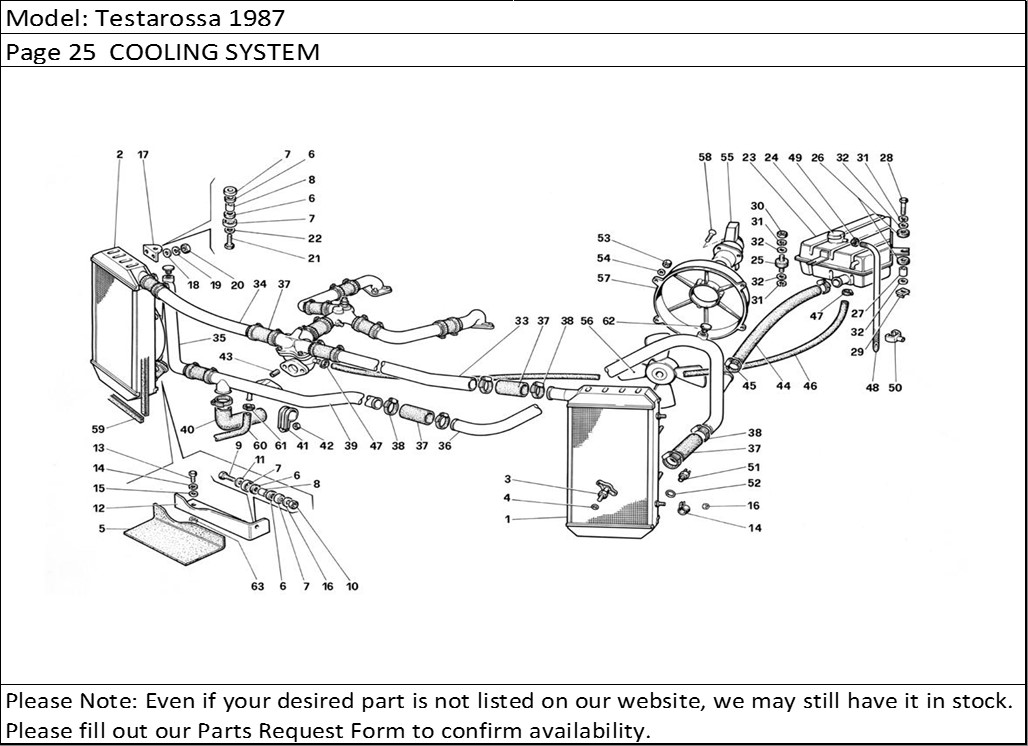

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 122966 | L.H. radiator | 1 |
2 | 122967 | R.H. radiator | 1 |
3 | 101488 | Water drain cock | 2 |
4 | 101496 | Gasket | 2 |
5 | 118184 | Rubber shim | 2 |
6 | 107978 | Pad for radiator fitting | 8 |
7 | 107979 | Cup | 8 |
8 | 107980 | Spacer | 4 |
9 | 16043921 | Screw | 2 |
10 | 16104411 | Nut | 2 |
11 | 10519601 | Washer | 2 |
12 | 116976 | L.H. lower bracket | 1 |
12 | 116977 | R.H. lower bracket | 1 |
13 | 10902221 | Screw | 4 |
14 | 10441890 | Clamp | 2 |
15 | 12643701 | Washer | 4 |
16 | 12574211 | Nut | 2 |
17 | 122968 | Upper bracket, movable | 2 |
18 | 12643701 | Flat washer | 4 |
19 | 106850 | Spring washer | 4 |
20 | 15896211 | Nut | 4 |
21 | 16135921 | Screw | 2 |
22 | 106852 | Washer | 2 |
23 | 124264 | Reservoir for radiator | 1 |
24 | 101499 | Reservoir cap | 1 |
25 | 102947 | Vibration-damping support | 1 |
26 | 103549 | Vibration-damping bushing | 2 |
27 | 103550 | Spacer | 2 |
28 | 10902621 | Screw | 2 |
29 | 60659100 | Caged nut | 2 |
30 | 15896211 | Nut | 2 |
31 | 106850 | Spring washer | 4 |
32 | 12643701 | Flat washer | 6 |
33 | 124279 | Pipe to L.H. radiator | 1 |
34 | 124278 | Pipe to R.H. radiator | 1 |
35 | 125025 | Pipe from R.H. radiator to pump | 1 |
36 | 129924 | Pipe from L.H. radtetor to pumpWith pipe PN 129925 | 1 |
36 | 125026 | Pipe from L.H. radiator to pumpWith pipe no. 124280 | 1 |
37 | 122969 | Sleeve | 10 |
38 | 12174090 | Clamp | 18 |
39 | 124280 | Intermediate pipe Until exhausted | 1 |
39 | 129925 | Intermediate pipe After exhaustion PN 124280 | 1 |
40 | 122944 | Sleeve | 1 |
41 | 106195 | Pipe supporting clamp | 4 |
42 | 12574211 | Nut | 4 |
43 | 13525470 | Heli-coil | 2 |
44 | 125088 | Feeder hose | 1 |
45 | 12179990 | Clamp | 2 |
46 | 127218 | Breather hose | 1 |
47 | 12179590 | Clamp | 2 |
48 | 126291 | Breather hose on reservoir cap | 1 |
49 | 13423379 | Clamp | 1 |
50 | 61130500 | Hose supporting bracket | 2 |
51 | 101507 | Thermocontact | 1 |
52 | 101508 | Gasket | 1 |
53 | 12575411 | Nut | 8 |
54 | 12643701 | Flat washer | 8 |
55 | 125936 | Electric fan motorFor A1 - U6 - S6 - C6 | 2 |
55 | 131410 | Electric fan motorFor B1 - U7 - C7 - S7 | 1 |
56 | 126937 | 4 - blade fan | 2 |
57 | 125938 | Conveyor | 2 |
58 | 123298 | Screw | 6 |
59 | 125010 | Self-adhesive gasket | 2 |
60 | 124029 | Hose from water valve to engine | 1 |
61 | 12179990 | Clamp | 1 |
62 | 127557 | Drain screw | 2 |
