Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

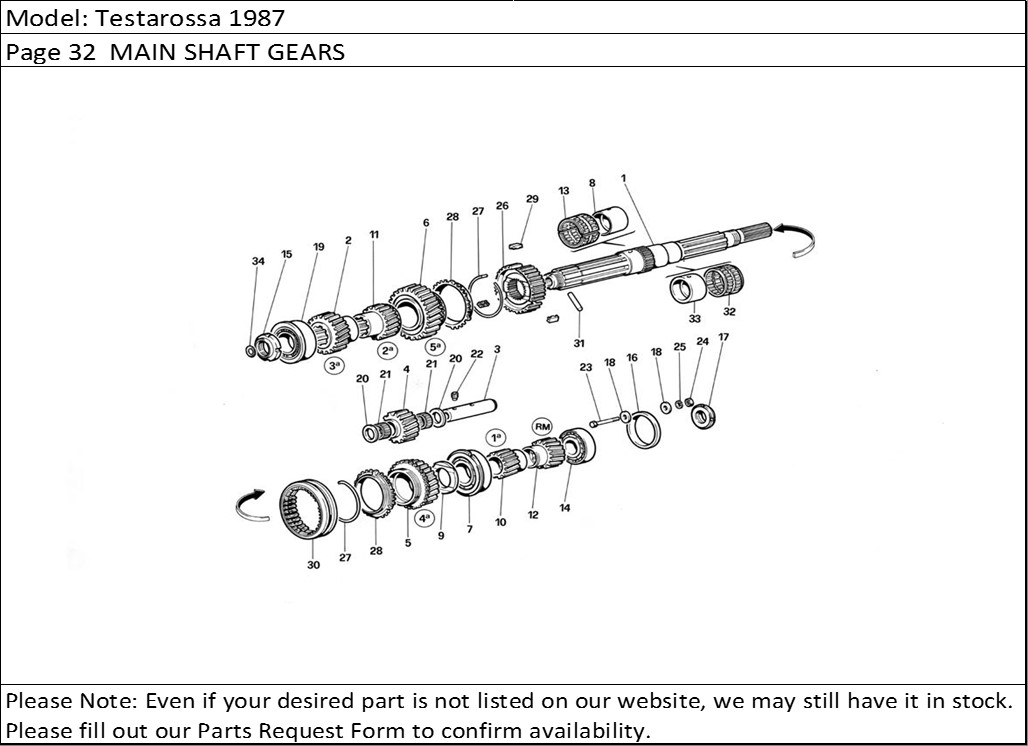

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 109716 | Main shaftModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
1 | 109716 | Main shaftModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
2 | 123120 | 3rd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
2 | 123120 | 3rd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
3 | 109768 | Pin for reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
3 | 109768 | Pin for reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
4 | 119804 | Reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
4 | 119804 | Reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
5 | 123127 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
5 | 123127 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included.Until gearbox no. 1466 | 1 |
5 | 132146 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting from gearbox no. 1467 | 1 |
5 | 132146 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
6 | 132154 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
6 | 123128 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
6 | 132154 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting gearbox no. 1467 | 1 |
6 | 123128 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Until gearbox no. 1466 | 1 |
7 | 103030 | Center roller bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
7 | 103030 | Center roller bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
8 | 107499 | 5th speed straight raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
8 | 107499 | 5th speed straight raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
9 | 110173 | SpacerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
9 | 110173 | SpacerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
10 | 119792 | 1st speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
10 | 119792 | 1st speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
11 | 119793 | 2nd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
11 | 119793 | 2nd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
12 | 119797 | Reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
12 | 119797 | Reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
13 | 109002 | Double row roller cage for 5th gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
13 | 109002 | Double row roller cage for 5th gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
14 | 126234 | Bearing axle sideModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. To exhaustion use no. 103990 | 1 |
14 | 126234 | Bearing axle sideModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
15 | 104713 | Front ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
15 | 104713 | Front ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
16 | 105765 | Bearing stop ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
16 | 105765 | Bearing stop ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
17 | 105764 | Rear ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
17 | 105764 | Rear ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
18 | 104731 | Bearing lock washerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
18 | 104731 | Bearing lock washerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
19 | 103042 | Front bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
19 | 103042 | Front bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
20 | 100703 | ShimModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
20 | 100703 | ShimModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
21 | 104734 | Roller cage for reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
21 | 104734 | Roller cage for reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
22 | 103035 | Grub screwModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
22 | 103035 | Grub screwModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
23 | 10903221 | BoltModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
23 | 10903221 | BoltModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
24 | 15896221 | NutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
24 | 15896221 | NutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
25 | 106850 | WasherModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
25 | 106850 | WasherModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
26 | 106046 | Syncronizer bodyModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
26 | 106046 | Syncronizer bodyModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
27 | 108363 | Spring ring for insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
27 | 108363 | Spring ring for insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
28 | 131799 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
28 | 106048 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
28 | 106048 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Until gearbox no. 1466 | 2 |
28 | 131799 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting from gearbox no. 1467 | 1 |
29 | 126201 | Synchronizer insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 3 |
29 | 126201 | Synchronizer insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 3 |
30 | 131801 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting from gearbox no. 1467 | 1 |
30 | 106051 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Until gearbox no. 1466 | 1 |
30 | 106051 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
30 | 131801 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
31 | 109725 | Paralell pinModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
31 | 109725 | Paralell pinModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
32 | 107525 | 4th speed roller cageModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
32 | 107525 | 4th speed roller cageModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
33 | 107524 | 4th speed roller raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
33 | 107524 | 4th speed roller raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
34 | 109724 | Seal ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
34 | 109724 | Seal ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
