Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

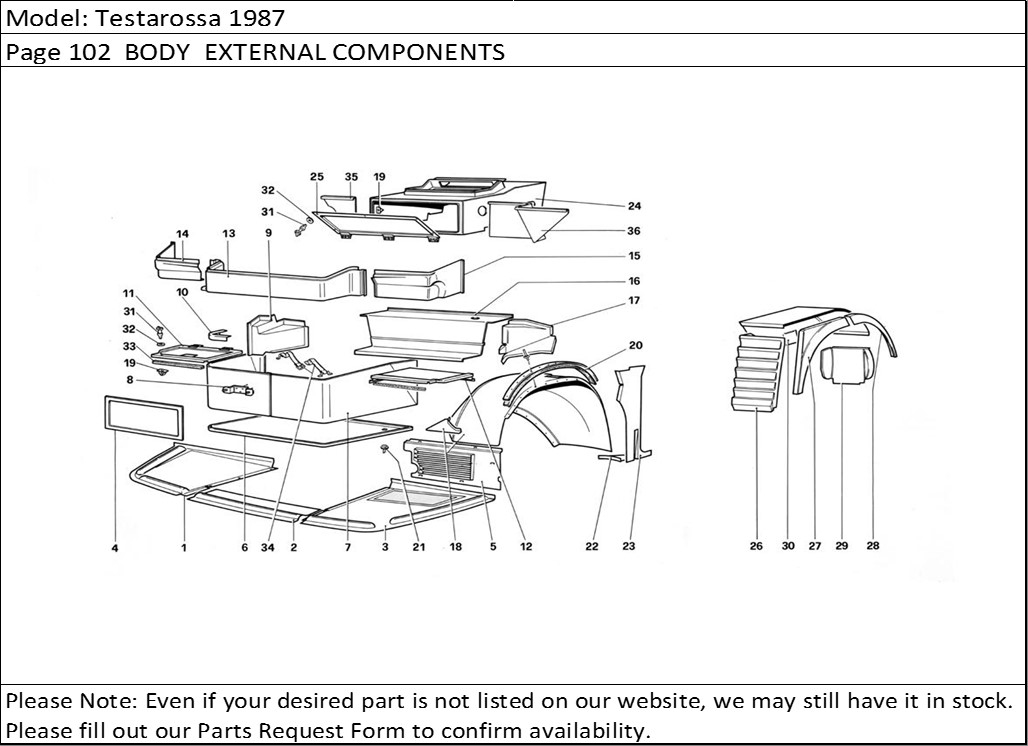

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 61478600 | Right front bottom plate | 1 |
2 | 61478700 | Central front bottom plate | 1 |
3 | 61478800 | Left front bottom plate | 1 |
4 | 61478900 | RH wheelarch front shieldpanel | 1 |
5 | 61479000 | Shieldpanel for condenser | 1 |
6 | 61479100 | Trunk bottom plate | 1 |
7 | 61479200 | Central movable lower shieldpanel | 1 |
8 | 61479300 | Horn support bracket | 1 |
9 | 61479500 | Left angle piece for wheel house | 1 |
9 | 61479400 | Right angle piece for wheel house | 1 |
10 | 61479600 | Right support for luggage compartment | 1 |
10 | 61479700 | Left support for luggage compartment | 1 |
11 | 61479800 | Battery compartment lid | 1 |
12 | 61479900 | Condenser compartment lid | 1 |
13 | 61480000 | Central movable shieldpanel | 1 |
14 | 61480100 | Right movable shieldpanel | 1 |
15 | 61480200 | Left movable shieldpanel | 1 |
16 | 61480300 | Rear shieldpanel | 1 |
17 | 61480400 | Left front panel | 1 |
17 | 61480500 | Right front panel | 1 |
18 | 61480600 | Wheelhouse, front left | 1 |
18 | 61480700 | Wheelhouse, front right | 1 |
19 | 61529200 | Clip | 6 |
20 | 61481000 | Wheelhouse gasket | 2 |
21 | 60731300 | Plug | 2 |
22 | 61481300 | Left cover | 1 |
22 | 61481200 | Right cover | 1 |
23 | 61481500 | Left door inner pillar | 1 |
23 | 61481400 | Right door inner pillra | 1 |
24 | 61481600 | Air condition case | 1 |
25 | 61481700 | Electric board cover | 1 |
26 | 61481800 | Front section of rear right wheelhouse | 1 |
26 | 61481900 | Front section of rear left wheelhouse | 1 |
27 | 61482100 | Front side section of rear left wheelhouse | 1 |
27 | 61482000 | Front side section of rear right wheelhouse | 1 |
28 | 61482200 | Rear side section of rear left wheelhouse | 1 |
28 | 61482300 | Rear side section of rear left wheelhouse | 1 |
29 | 61482400 | Rear section of rear right wheelhouse | 1 |
29 | 61482500 | Rear section of rear left wheelhouse | 1 |
30 | 61482600 | Upper section of rear right wheelhouse | 1 |
30 | 61482700 | Upper section of rear left wheelhouse | 1 |
31 | 61530300 | Pin securing battery and condenser compartment lid | 6 |
32 | 61529400 | Pin gasket | 6 |
33 | 61538600 | Gasket | 1 |
34 | 61538300 | Spare wheel retaining belt | 1 |
35 | 61546300 | Right protectionRHD | 1 |
35 | 61546100 | Right protectionLHD | 1 |
36 | 61546200 | Left protectionLHD | 1 |
36 | 61546400 | Left protectionRHD | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
