Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

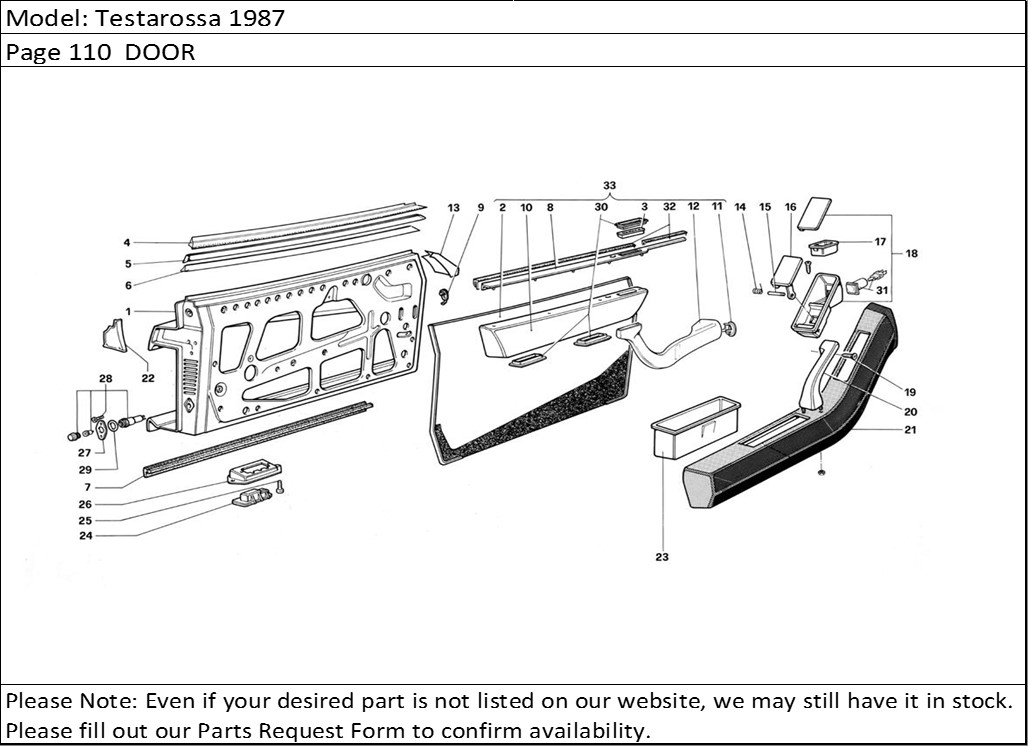

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 61540500 | Left door For US - Not for J | 1 |
1 | 61540600 | Right door For US- Not for J | 1 |
1 | 61501600 | Right door Not for US | 1 |
1 | 61501700 | Left door Not for US | 1 |
2 | 61502100 | Left panel | 1 |
2 | 61502000 | Right panel | 1 |
3 | 61502200 | Right air tube | 1 |
3 | 61502300 | Left air tube | 1 |
4 | 61543700 | Right gasket | 1 |
4 | 61543800 | Left gasket | 1 |
5 | 61539300 | Right outer moulding | 1 |
5 | 61539200 | Left outer moulding | 1 |
6 | 61543500 | RH run channel | 1 |
6 | 61543600 | LH run channel | 1 |
7 | 61539600 | Underdoor gasketUntil car no. | 2 |
7 | 61503000 | Underdoor gasketUntil car no. | 2 |
8 | 61559900 | Right inner mouldingStarting car No 67079 | 1 |
8 | 61503100 | Right inner mouldingUntil car No 67077 | 1 |
8 | 61503200 | Left inner mouldingUntil car No 67077 | 1 |
8 | 61560000 | Left inner mouldingStarting car No 67079 | 1 |
9 | 61503300 | Switch | 1 |
10 | 61503400 | Upper covering for right panel | 1 |
10 | 61503500 | Upper covering for left panel | 1 |
11 | 61503600 | Air tube ring | 2 |
12 | 61503700 | R.H. air tube | 1 |
12 | 61503800 | L.H. air tube | 1 |
13 | 61505700 | Right gasket for door front side | 1 |
13 | 61505800 | Left gasket for door front side | 1 |
14 | 61504300 | Right spring | 1 |
14 | 61504400 | Left spring | 1 |
15 | 61504500 | Pin | 2 |
16 | 61504600 | Right handle | 1 |
16 | 61504700 | Left handle | 1 |
17 | 61504800 | As tray box | 2 |
18 | 61505000 | Left ash tray | 1 |
18 | 61504900 | Right ash tray | 1 |
19 | 15672801 | Screw | 2 |
20 | 61505200 | Left inner handle | 1 |
20 | 61505100 | Right inner handle | 1 |
21 | 61505400 | Left armrest | 1 |
21 | 61505300 | Right armrest | 1 |
22 | 61505900 | Right gasket for door rear side | 1 |
22 | 61506000 | Left gasket for door rear side | 1 |
23 | 61505600 | Door glove box | 2 |
24 | 60842100 | Courtesy lamp | 2 |
25 | 17668201 | Screw | 4 |
26 | 60842000 | Frame | 2 |
27 | 61647000 | Gasket | 2 |
28 | 102248 | Open door light | 2 |
29 | 102249 | Frame | 2 |
30 | 61533100 | Frame for air outlet | 6 |
31 | 61535800 | Open door marker | 2 |
32 | 61557800 | Inner gasket | 2 |
33 | 61501800 | Right panel completeUntil car No 67077 | 1 |
33 | 61560100 | Right panel completeStarting car No 67079 | 1 |
33 | 61560200 | Left panel completeStarting car No 67079 | 1 |
33 | 61501900 | Left panel completeUntil car No 67077 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
