Home > Page 6 TIMING

Page 6 TIMING

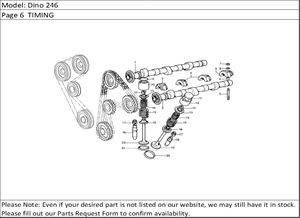

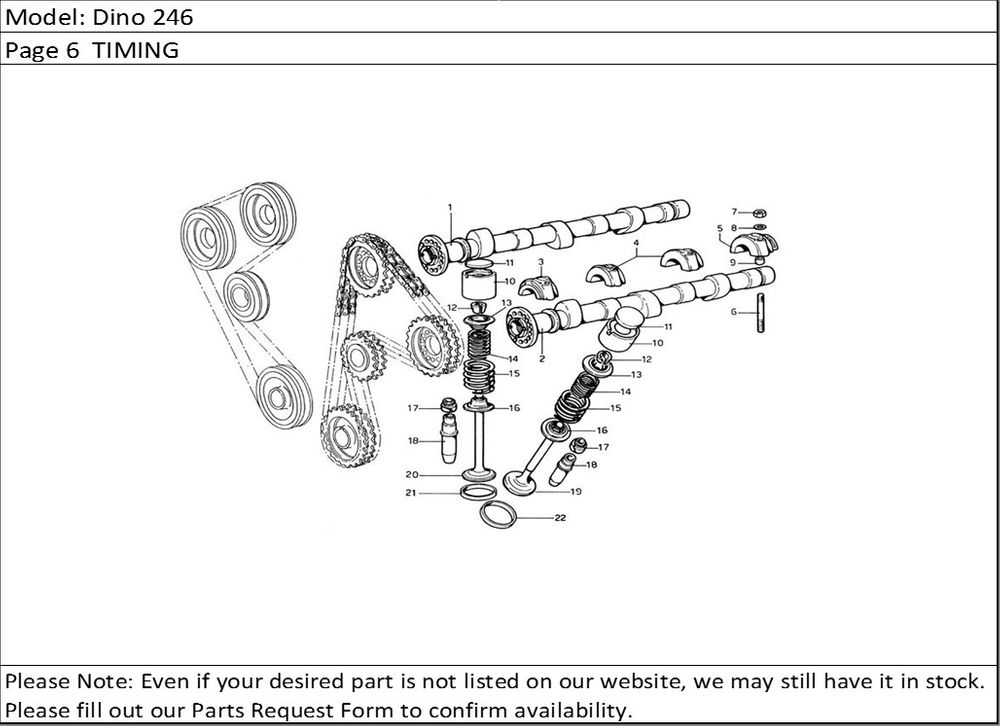

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	236E16251	Albero distribuzione aspirazione completo	1
1	236E16251	Albero distribuzione scarico completo	1
2	236E16252	Albero distribuzione aspirazione completo	1
2	236E16252	Albero distribuzione scarico completo	1
3	4146772	Cappello anteriore	4
4	4146773	Cappello intermedio	8
5	4146774	Cappello posteriore	4
6	4146790	Prigioniero per capped!	32
7	15896211	Dado EM 6x1	32
8	11197773	Rondella conica	32
9	102725	Grano di centraggio	32
10	4152447	Punteria comando valvola	12
11	102854	Idem - spessore mm. 4.55	12
11	4181807	Idem - spessore mm. 4.52	12
11	102853	Idem - spessore mm. 4.50	12
11	4181806	Idem - spessore mm. 4.47	12
11	102852	Idem - spessore mm. 4.45	12
11	4181805	Idem - spessore mm. 4.42	12
11	102851	Idem - spessore mm. 4.40	12
11	4181804	Idem - spessore mm. 4.37	12
11	102850	Idem - spessore mm. 4.35	12
11	4181803	Idem - spessore mm. 4.32	12
11	102849	Idem - spessore mm. 4.30	12
11	4181802	Idem - spessore mm. 4.27	12
11	102848	Idem - spessore mm. 4.25	12
11	4181808	Idem - spessore mm. 4.57	12
11	4162889	Idem - spessore mm. 4.60	12
11	4181809	Idem - spessore mm. 4.62	12
11	4181797	Ideta - spessore mm. 4.02	12
11	102835	Idem -spessore mm. 3.60	12
11	102836	Idem -''spessore mm. 3.65	12
11	4181817	Idem - spessore mm. 4.87	12
11	4181816	Idem - spessore mm. 4.85	12
11	4181814	Idem - spessore mm. 4.80	12
11	4181813	Idem - spessore mm. 4.77	12
11	4181812	Idem - spessore mm. 4.75	12
11	4181811	Idem - spessore mm. 4.72	12
11	4162891	Idem - spessore mm. 4.70	12
11	4181810	Idem - spessore mm. 4.67	12
11	N162890	Idem - spessore mm. 4.65	12
11	102843	Piattello per registrazione valvole spessore mm. 4	12
11	4181801	Idem - spessore mm. 4.22	12
11	4181815	Idem * spessore mm. 4.82	12
11	4181792	Idem - spessore mm. 3.77	12
11	102838	Idem - spessore mm. 3.75	12
11	4181791	Idem - spessore mm. 3.72	12
11	102837	Idem - spessore mm. 3.70	12
11	4181790	Idem - spessore mm. 3.67	12
11	102834	Idem - spessore mm. 3.55	12
11	108833	Idem - spessore mm. 3.50	12
11	4204145	Idem - spessore mm. 3.45	12
11	4204144	Idem - spessore mm. 3.40	12
11	4204142	Idem - spessore mm. 3.30	12
11	4204141	Idem - spessore mm. 3.25	12
11	4181818	Idem * spessore mm. 4.90	12
11	102839	Idem - spessore mm. 3.80	12
11	4181793	Idem - spessore mm. 3.82	12
11	102840	Idem - spessore mm. 3.85	12
11	4181800	idem - spessore mm. 4.17	12
11	102846	Idem - spessore mm. 4.15	12
11	4181799	Idem - spessore mm. 4.12	12
11	102845	Idem - spessore mm. 4.10	12
11	4181798	Idem - spessore mm. 4.07	12
11	102844	Idem - spessore mm. 4.05	12
11	4204143	Idem - spessore mm. 3.35	12
11	4181796	Idem - spessore mm. 3.97	12
11	102842	Idem - spessore mm. 3.95	12
11	4181795	Idem - spessore mm. 3.92	12
11	102841	Idem - spessore mm. 3.90	12
11	4181794	Idem - spessore mm. 3.87	12
11	102847	Idem - spessore mm. 4.20	12
12	102862	Semicono ritegno scodellino	24
13	106180	Scodellino superioreDopo esaurim. N. F41 78524	12
13	4178024	Scodellino superioreVale fino ad esaurim.	12
14	4146798	Molla interna	12
15	4146799	Molla esterna	12
16	4178525	Scodellino inferioreVale fino ad esaurim.	12
16	106181	Scodellino inferioreDopo esaurim. N. F4178525	12
17	4174355	Paraolio per vaivole	12
18	236E16253	Guida valvofe aspirazione e scaricoVale dal N. 05888	12
18	4178521	Guida vaivole aspirazione e scaricoVale fino N. 05880	12
19	4178519	Valvoia di aspirazione	6
20	106553	Valvoia di scaricoDopo esaurim. N. F4198464	12
20	4198464	Valvola di scaricoVale fino ad esaurim.	12
21	4225823	Sede valvola scarico	6
22	4225822	Sede valvola aspirazione	6
1	9688	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Leather- -Valid for	1
1	9689	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Alcantara- -Valid	1
1	9664	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid	1
1	9665	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching	1
1	9690	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather-	1
1	9691	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara-	1
1	9666	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather-	1
1	9667	L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara-	1
1	9692	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for	1
1	9693	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for	1
1	9668	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for	1
1	9669	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid	1
1	9694	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid	1
1	9695	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid	1
1	9670	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without	1
1	9671	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara-	1
1	9696	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for	1
1	9697	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for	1
1	9672	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for	1
1	9673	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for	1
1	9698	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather-	1
1	9699	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara-	1
1	9674	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather-	1
1	9675	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather-	1
1	9700	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather-	1
1	9701	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather-	1
1	9676	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel	1
1	9677	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather-	1
1	9702	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather-	1
1	9703	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather-	1
1	9678	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather-	1
1	9679	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather-	1
1	9704	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather-	1
1	9705	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching	1
1	9680	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather-	1
1	9681	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather-	1
1	9706	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather-	1
1	9707	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather-	1
1	9682	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather-	1
1	9683	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather-	1
