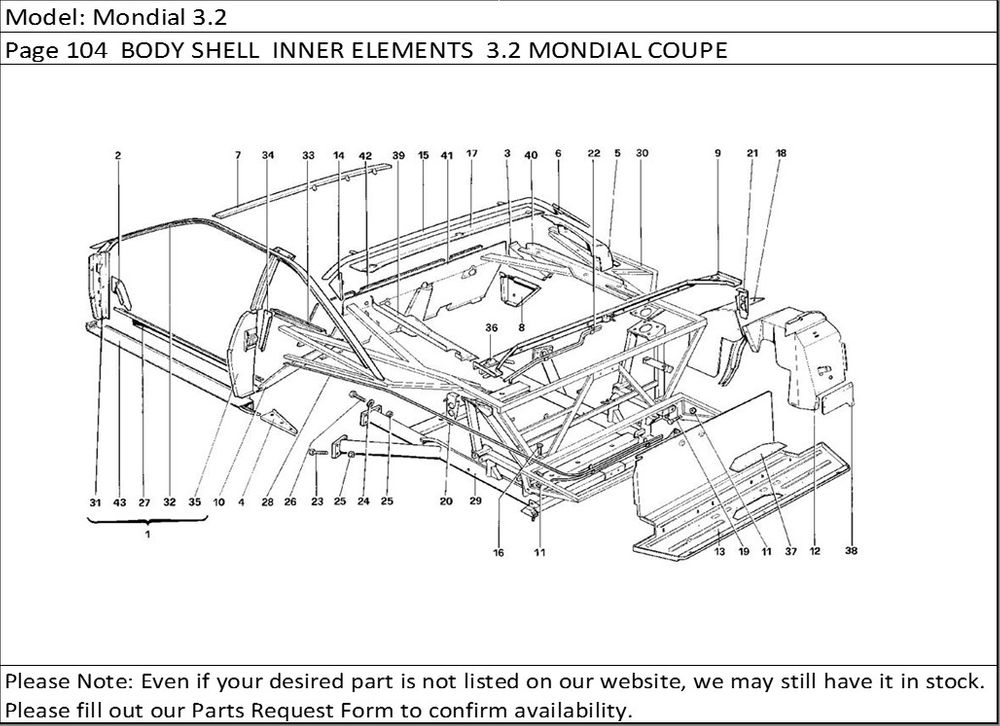

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60977800 | L.H. door opening with rail - GD | 1 |
1 | 60890600 | R.H. door opening with rail TA | 1 |
1 | 61432100 | L.H. door opening with rail - RHD - TA | 1 |
1 | 60890700 | L.H. door opening with rail - US - SA | 1 |
1 | 60983000 | L.H. door opening with rail - LHD - TANot for US - SA | 1 |
1 | 60767300 | L.H. door opening with rail - LHDNot for US -SA | 1 |
1 | 60977700 | R.H. door operning with rail | 1 |
2 | 119435 | Footrest - LHD | 1 |
3 | 60829200 | L.H. reinforcement - US - AUS - SA | 1 |
3 | 60829100 | R.H. reinforcement - US - AUS - SA | 1 |
4 | 116014 | Support for L.H. rear body side | 1 |
4 | 116013 | Support for R.H. rear body side | 1 |
5 | 60951500 | R.H. covering over rear window | 1 |
5 | 61030300 | R.H. covering over rear window T.A. | 1 |
5 | 61030400 | L.H. covering over rear window T.A. | 1 |
5 | 60951600 | L.H. covering over rear window | 1 |
6 | 60910300 | Support for rear R.H. belts T.A. | 1 |
6 | 60781000 | Support for rear R.H. belts | 1 |
7 | 60723200 | Front rib | 1 |
8 | 60622200 | L.H. bracket for front belts retractor | 1 |
8 | 60622100 | R.H. bracket for front belts retractor | 1 |
9 | 61089000 | Gasket supportNot for US - AUS - SA - C8 | 1 |
9 | 61427200 | Gasket support - US - AUS - SA | 1 |
9 | 62461400 | Gasket support - C8 | 1 |
10 | 60967900 | R.H. stiffening - US - SA | 1 |
10 | 60967800 | R.H. stiffening - US - SA | 1 |
10 | 60695400 | R.H. stiffening - Not for US -SA | 1 |
10 | 60695500 | L.H. stiffening - Not for US - SA | 1 |
11 | 12575811 | Nut | 4 |
12 | 61971800 | L.H. rear wheelhouse - AUS | 1 |
12 | 61732100 | L.H. rear wheelhouseNot for US - AUS - SA | 1 |
12 | 61893600 | L.H. rear wheelhouse - TA | 1 |
12 | 61732000 | R.H. rear wheelhouseNot for US - SA - AUS | 1 |
12 | 61794300 | R.H. rear wheelhouse - US - AUS - SA | 1 |
12 | 61738400 | L.H. rear wheelhouse - US - SA | 1 |
13 | 61721800 | Section bonnetNot for USA - S - AUS - C7 | 1 |
13 | 61742700 | Section rear bonnet - US - AUS - SA | 1 |
13 | 62349400 | Section bonnet - C7 | 1 |
14 | 60910400 | L.H. support for rear belts - TA | 1 |
14 | 60781100 | L.H. support for rear belts | 1 |
15 | 60828700 | Rear rib - TA | 1 |
15 | 61093400 | Rear rib | 1 |
16 | 11255921 | Screw | 2 |
17 | 61266000 | Botton plate for rear rib - TA | 1 |
17 | 60616400 | Botton plate for rear rib | 1 |
18 | 61158600 | R.H. front section - Not for C6 | 1 |
18 | 61800600 | L.H. front section - Not for C6 | 1 |
18 | 61980800 | L.H. front section - C6 | 1 |
18 | 61265600 | R.H. front section - C6 | 1 |
19 | 15977521 | Screw | 2 |
20 | 60695100 | L.H. bracket | 1 |
21 | 60697200 | L.H. and R.H. bracket | 2 |
22 | 60787300 | Cable duct for engine bonnet | 1 |
23 | 15540621 | Screw | 8 |
24 | 12646921 | Washer | 8 |
25 | 16105011 | Selflocking nut | 16 |
26 | 15540521 | Screw | 8 |
27 | 60602800 | Inner R.H. covering of rail | 1 |
27 | 61082600 | Inner L.H. covering of rail | 1 |
28 | 61204500 | Cable duct for trunk bonnet | 1 |
29 | 128013 | (B) Removable frame - RHD Not for AUS | 1 |
29 | 130504 | (B) Removable frame - AUS | 1 |
29 | 136470 | (A) Removable frame - US - SA | 1 |
29 | 136471 | (A) Removable frame RHD - Not for AUS | 1 |
29 | 128021 | (B) Removable frame - LHDNot for US - SA - C7 | 1 |
29 | 128024 | (B) Removable frame - US - SA - C7 | 1 |
29 | 136472 | (A) Removable frame - AUS | 1 |
29 | 135849 | Removable frame - C8 | 1 |
29 | 132568 | (A) Removable frame - Not for C8 | 1 |
30 | 128022 | Rear frameNot for AUS - US - SA - C7 - C8 | 1 |
30 | 126631 | Rear frame - US - SA - C7 - AUS - C8 | 1 |
31 | 60645500 | L.H. seat for door hingeNot for US - SA | 1 |
31 | 60645400 | R.H. seat for door hinge | 1 |
31 | 60903500 | L.H. seat for door hinge - US - SA | 1 |
32 | 60932200 | L.H. rail - LHD | 1 |
32 | 60932100 | R.H. rail - RHD | 1 |
32 | 60944300 | R.H. rail - LHD | 1 |
32 | 60998600 | L.H. rail - LHD - TA | 1 |
32 | 60998500 | R.H. rail - LHD - TA | 1 |
32 | 60945200 | L.H. rail - RHD | 1 |
33 | 60921600 | Lower stiffening for rear L.H. window | 1 |
33 | 60921700 | Lower stiffening for rear R.H. window | 1 |
34 | 60658300 | Stiffening angle piece for L.H. fender | 1 |
34 | 60658400 | Stiffening angle piece for R.H. fender | 1 |
35 | 60621300 | R.H. post. for rearfender | 1 |
35 | 60621400 | L.H. post. for rearfender | 1 |
36 | 60523700 | Fixed hinge for rear bonnet | 2 |
37 | 60810000 | Cover | 1 |
38 | 61816200 | R.H. rear gravel | 1 |
38 | 61816100 | L.H. rear gravel | 1 |
39 | 61820000 | L.H. cover | 1 |
40 | 60754500 | R.H. cover | 1 |
41 | 60841000 | Section passenger compart/engineUS - SA -C7 - AUS | 1 |
42 | 60873100 | Insulation - US - SA - C7 - AUS | 1 |
43 | 60542800 | Framework R.H. - See table 101 part. 45 | 1 |
43 | 60542900 | Framework L.H. - See table 101 part. 45 | 1 |
44 | 62433900 | R.H. cover - C8 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
