Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

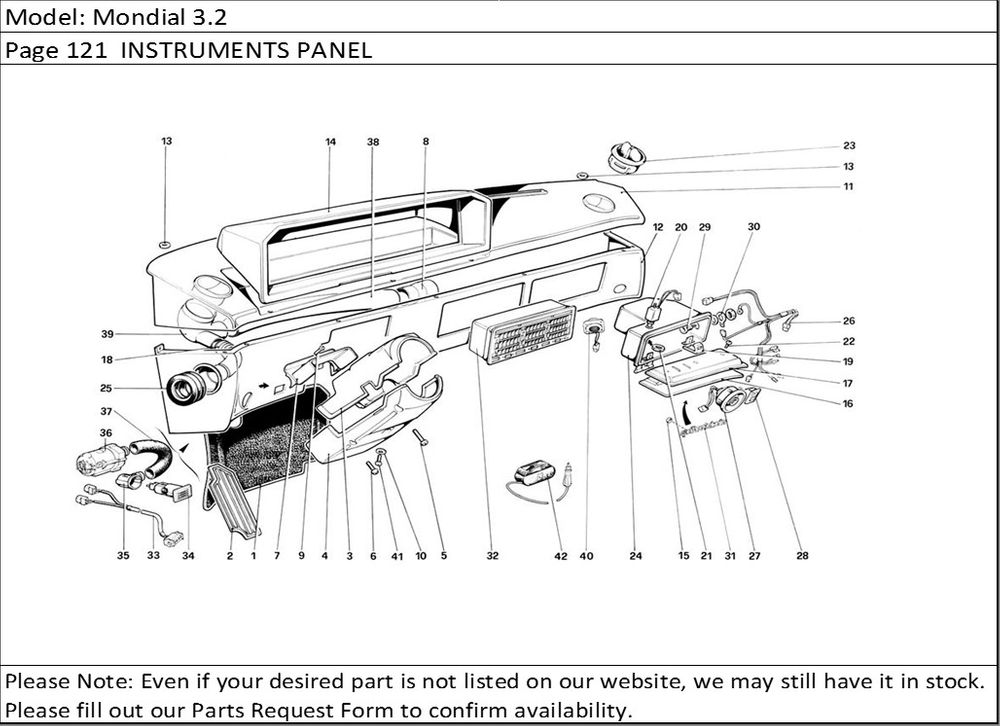

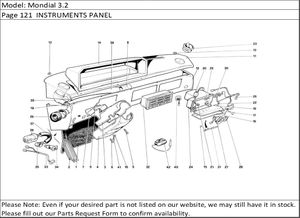

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 62381900 | Carpet - RHD | 1 |
1 | 60781600 | Carpet - LHD | 1 |
2 | 60654300 | (2) Cover for steering complete | 1 |
2 | 61158500 | Protection - RHD | 1 |
2 | 61272900 | (1) Cover for steering complete | 1 |
2 | 60723400 | Protection - LHD | 1 |
3 | 61177500 | (1) Cover | 1 |
3 | 60654400 | (2) Cover | 1 |
4 | 61272800 | (1) Cover | 1 |
4 | 60654500 | (2) Cover | 1 |
5 | 15687708 | Screw | 2 |
6 | 15688208 | Screw | 2 |
7 | 60698000 | Small cover | 1 |
8 | 61274400 | Fannel | 2 |
9 | 60698100 | Screw | 1 |
10 | 60702900 | Washer | 1 |
11 | 61829500 | (1) Dashboard - RHD | 1 |
11 | 62428000 | (2A) Dashboard - RHD | 1 |
11 | 61916000 | (2B) Dashboard - RHD | 1 |
11 | 62396300 | (2A) Dashboard - LHD | 1 |
11 | 61784700 | (2B) Dashboard - LHD | 1 |
11 | 61777000 | (1) Dashboard - LHD | 1 |
12 | 61777100 | (B) Lower dashboard - LHDUntil 30-4-87 | 1 |
12 | 61829600 | Lower dashboard - RHD | 1 |
12 | 62362700 | (A) Lower dashboard - LHD | 1 |
12 | 62362700 | (B) Lower dashboard - LHDFrom 1-5-87 | 1 |
13 | 60657600 | Rubber washer | 1 |
14 | 61776500 | Seat instruments with covering - LHD | 1 |
14 | 61829000 | Seat instruments with covering - RHD | 1 |
15 | 14183376 | Clip | 3 |
16 | 60656000 | Covering | 1 |
16 | 61131700 | Lid with covering - LHD | 1 |
16 | 61130700 | Lid with covering - RHD | 1 |
17 | 60655400 | Lid inner covering - LHD | 1 |
17 | 60734800 | Lid inner covering - RHD | 1 |
18 | 60657300 | Air pipe on door | 2 |
19 | 60675600 | Lock striker | 1 |
20 | 60868600 | Magnet | 1 |
21 | 60538800 | Ring nut | 1 |
22 | 60675900 | Screw | 4 |
23 | 60656500 | Side air outlet | 2 |
24 | 61344000 | (2) Box - LHD | 1 |
24 | 60734900 | (1) Box - RHD | 1 |
24 | 61440700 | (2) Box - RHD | 1 |
24 | 60655700 | (1) Box - LHD | 1 |
25 | 60657400 | Gasket | 2 |
26 | 119429 | Connecting cables | 1 |
27 | 60743100 | Glove box light | 1 |
28 | 60743000 | Switch | 1 |
29 | 60701500 | Socket | 1 |
30 | 60701400 | Negative terminal | 1 |
31 | 61132700 | Quattrovalvole name | 1 |
32 | 60657100 | Central air outlet | 1 |
33 | 119430 | Cables for sensor | 1 |
34 | 61079100 | Sensor | 1 |
35 | 61079200 | Housing sensor | 1 |
36 | 61079300 | Suction fanAfter exhaustion use no. 61983500 | 1 |
37 | 61089300 | Pipe suction fan - sensor | 1 |
38 | 61876600 | (1) Pipe A.C. - L.H. air outlet | 1 |
38 | 61981600 | (2) Pipe A.C. - R.H. air outlet - RHD | 1 |
38 | 61876500 | (2) Pipe A.C. - L.H. air outlet - RHD | 1 |
38 | 61876500 | (1) Pipe A.C. - R.H. air outlet | 1 |
38 | 61876500 | (2) Pipe A.C. - R.H. air outlet - LHD | 1 |
38 | 61981600 | (2) Pipe A.C. - L.H. air outlet - LHD | 1 |
39 | 60658700 | Union for R.H. air outlet - LHD | 1 |
39 | 60656800 | Union for L.H. air outlet - LHD | 1 |
39 | 60754000 | Union for L.H. air outlet - RHD | 1 |
39 | 60753900 | Union for R.H. air outlet - RHD | 1 |
40 | 62462600 | Loud speakerAfter exhaustion use no. 127296 | 2 |
40 | 127296 | Loud speakerTo exhaustion | 2 |
41 | 60702800 | Screw | 1 |
42 | 40179202 | Aid lamp | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
