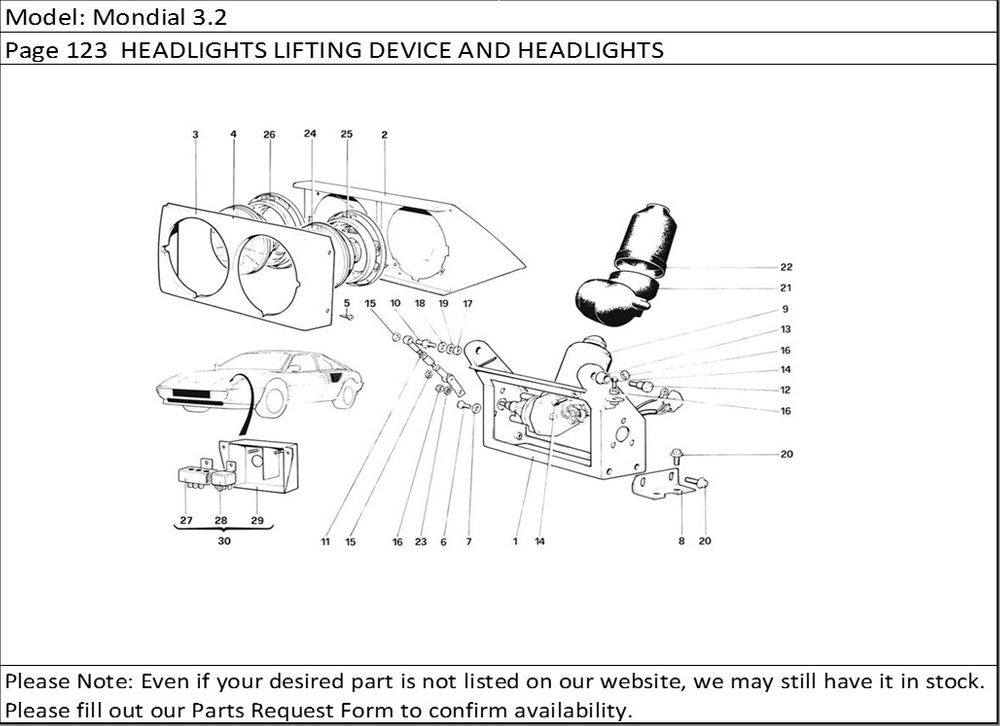

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60525500 | Support framework(R.H. only for cars with DIM - DIP) | 2 |
1 | 62342300 | Support L.H. framework - GB(Only for cars with DIM - DIP) | 1 |
2 | 60985700 | Housing for R.H. head lamp | 1 |
2 | 60985600 | Housing for L.H. head lamp | 1 |
3 | 60527400 | Head lamp frame, R.H. | 1 |
3 | 60527500 | Head lamp frame, L.H. | 1 |
4 | 61005600 | Dip beam/main beams - F | 2 |
4 | 60907400 | Dip beamsNot for US - F - RHD | 2 |
4 | 60944800 | Dip beam/main beams - RHD | 2 |
4 | 61610600 | Sealed beam dip beam/main beams - US | 2 |
5 | 15908306 | Screw | 8 |
6 | 10902111 | Screw | 6 |
7 | 10615471 | Washer | 6 |
8 | 60527600 | R.H. angle piece | 2 |
8 | 60527700 | L.H . angle piece | 2 |
9 | 60727600 | Lifting motor for L.H. headlamp | 1 |
9 | 60727500 | Lifting motor for R.H. headlamp | 1 |
10 | 60527900 | Pin for connecting rod | 2 |
11 | 61268600 | Connecting rod | 2 |
12 | 60564700 | Pin | 4 |
13 | 50070507 | Bush | 4 |
14 | 50087709 | Pin | 8 |
15 | 16160976 | Circlip | 2 |
16 | 15896211 | Nut | 10 |
17 | 12164711 | Nut | 2 |
18 | 12638621 | Washer | 2 |
19 | 10615771 | Washer | 2 |
20 | 13842411 | Screw | 16 |
21 | 60331204 | Lower protection for L.H. motor | 1 |
21 | 60331303 | Lower protection for R.H. motor | 1 |
22 | 60331402 | Upper protection for motor | 2 |
23 | 10516471 | Washer | 2 |
24 | 61610500 | Main beams - US | 2 |
24 | 60907200 | Main beamsNot for US - F | 2 |
24 | 61005400 | Main beams - F | 2 |
25 | 40198004 | L.H. housing for main beam | 1 |
25 | 40197907 | R.H. housing for main beam | 1 |
26 | 50104702 | L.H. housing for dip beam | 1 |
26 | 50104603 | R.H. housing for dip beam | 1 |
27 | 62342000 | ResistorforGB | 1 |
28 | 62342100 | Relay for GB | 1 |
29 | 62342800 | DIM - DIP box for GB | 1 |
30 | 62346400 | DIM - DIP box complete for GB | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
