Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

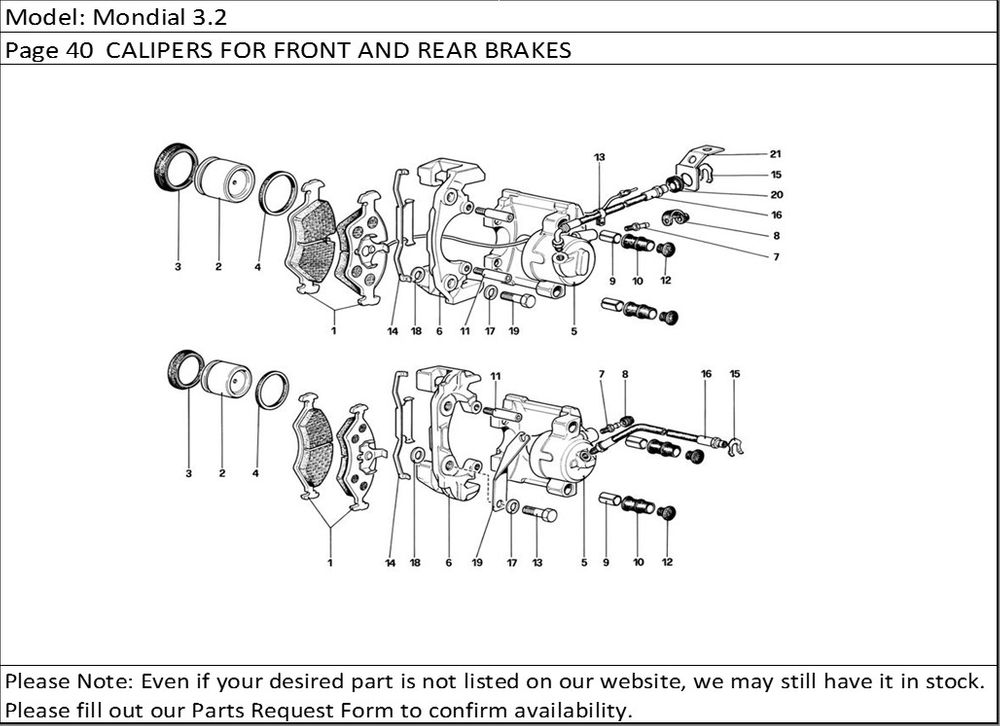

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 135705 | Set of FERODO 3416F rear padsFor Svezia - Rear Brake Calipers | 1 |
| 1 | 118589 | Set or FERIT 1/D 346GGRear Brake Calipers | 1 |
| 1 | 117182 | Right front caliper unit with pads | 1 |
| 1 | 135704 | Set of FERODO 3416 F front padsFor Svezia | 1 |
| 1 | 117184 | Right rear caliper unit with pads | 1 |
| 1 | 117183 | Left rear caliper unit with pads | 1 |
| 1 | 117181 | Left front caliper unit with pads | 1 |
| 1 | 118588 | Set of FERIT 1/D 346GG front pads | 1 |
| 2 | ATE | Brake cylinderFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 2 | - | Brake cylinderRear Brake Calipers | 2 |
| 2 | - | Brake cylinderFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 2 | ATE | Brake cylinderRear Brake Calipers | 2 |
| 3 | - | Sealing ringWith kit no. 116928 - Rear Brake Calipers | 2 |
| 3 | ATE | Sealing ringWith kit no. 116928 - Rear Brake Calipers | 2 |
| 3 | ATE | Sealing ringWith kit no. 116927 | 2 |
| 3 | - | Sealing ringWith kit no. 116927 | 2 |
| 4 | ATE | Stop ringRear Brake Calipers | 2 |
| 4 | ATE | Stop ringFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 4 | - | Stop ringRear Brake Calipers | 2 |
| 4 | - | Stop ringFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 5 | ATE | Cylinder bodyRear Brake Calipers | 2 |
| 5 | ATE | Cylinder bodyFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 5 | - | Cylinder bodyRear Brake Calipers | 2 |
| 5 | - | Cylinder bodyFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 6 | - | Support for caliperFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 6 | ATE | Support for caliperRear Brake Calipers | 2 |
| 6 | ATE | Support for caliperFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 6 | - | Support for caliperRear Brake Calipers | 2 |
| 7 | ATE | BleederRear Brake Calipers | 2 |
| 7 | - | BleederRear Brake Calipers | 2 |
| 7 | - | BleederFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 7 | ATE | BleederFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 8 | ATE | Bleeder capRear Brake Calipers | 2 |
| 8 | - | Bleeder capRear Brake Calipers | 2 |
| 8 | - | Bleeder capFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 8 | ATE | Bleeder capFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 9 | - | Guide bushWith kit no. 116928 - Rear Brake Calipers | 2 |
| 9 | 116928 | Overhaul kit rear calipers | 2 |
| 9 | ATE | Guide bushWith kit no. 116927 - Front Brake Calipers | 2 |
| 9 | ATE | Guide bushWith kit no. 116928 - Rear Brake Calipers | 2 |
| 9 | - | Guide bushWith kit no. 116927 - Front Brake Calipers | 2 |
| 9 | 116927 | Overhaul kit front calipers | 1 |
| 10 | - | Dust protection ringWith kit no . 116928 - Rear Brake Calipers | 4 |
| 10 | - | Dust protection ringWith kit no. 116927 - Front Brake Calipers | 4 |
| 10 | ATE | Dust protection ringWith kit no. 116927 - Front Brake Calipers | 4 |
| 10 | ATE | Dust protection ringWith kit no . 116928 - Rear Brake Calipers | 4 |
| 11 | 95691540 | Threaded pinFront Brake Calipers | 4 |
| 11 | 95691540 | Threaded pinRear Brake Calipers | 4 |
| 12 | - | CapWith kit no. 116927 - Front Brake Calipers | 4 |
| 12 | ATE | CapWith kit no. 116928 - Rear Brake Calipers | 4 |
| 12 | ATE | CapWith kit no. 116927 - Front Brake Calipers | 4 |
| 12 | - | CapWith kit no. 116928 - Rear Brake Calipers | 4 |
| 13 | 40135402 | Clamp for pad cableFront Brake Calipers | 8 |
| 13 | 117194 | Caliper fixing screwRear Brake Calipers | 4 |
| 14 | 95691541 | Clip for caliperFront Brake Calipers | 2 |
| 14 | 95691542 | Clip for caliperRear Brake Calipers | 2 |
| 15 | 116374 | Clamp for hoseFront Brake Calipers | 2 |
| 15 | 116374 | Clamp for hoseRear Brake Calipers | 2 |
| 16 | 118100 | HoseRear Brake Calipers | 2 |
| 16 | 118101 | HoseFront Brake Calipers | 2 |
| 17 | 11198371 | WasherRear Brake Calipers | 4 |
| 17 | 106854 | WasherFront Brake Calipers | 4 |
| 18 | 117085 | Ditto, thickness 0,3 mm.Rear Brake Calipers | 4 |
| 18 | 117086 | Ditto, thickness 0,5 mm.Rear Brake Calipers | 4 |
| 18 | 108283 | Ditto, thickness 0,4 mm.Rear Brake Calipers | 4 |
| 18 | 107835 | Ditto, thickness 1 mm.Rear Brake Calipers | 4 |
| 18 | 117084 | Shim between caliper and hub holder 0,2 mm. ThicknessRear Brake Calipers | 4 |
| 18 | 108918 | Shim between caliper and stub axle, 0,2 mm. ThicknessFront Brake Calipers | 4 |
| 19 | 131869 | (A) Right bracketRear Brake Calipers | 1 |
| 19 | 108919 | Ditto, thickness 0,3 mm.Front Brake Calipers | 4 |
| 19 | 117193 | Screw fixing caliper to stub axleFront Brake Calipers | 4 |
| 19 | 131870 | (A) Left bracketRear Brake Calipers | 1 |
| 20 | 108920 | Ditto, thickness 0,5 mm.Front Brake Calipers | 4 |
| 20 | 40134801 | Fair-leadFront Brake Calipers | 2 |
| 21 | 108921 | Ditto, thickness 0,6 mm.Front Brake Calipers | 4 |
| 21 | 118102 | Bracket for hoseFront Brake Calipers | 2 |
| 22 | 108922 | Ditto, thickness 0,7 mm.Front Brake Calipers | 4 |
| 23 | 108923 | Ditto, thickness 0,8 mm.Front Brake Calipers | 4 |
| 24 | 108924 | Ditto, thickness 1 mm.Front Brake Calipers | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
