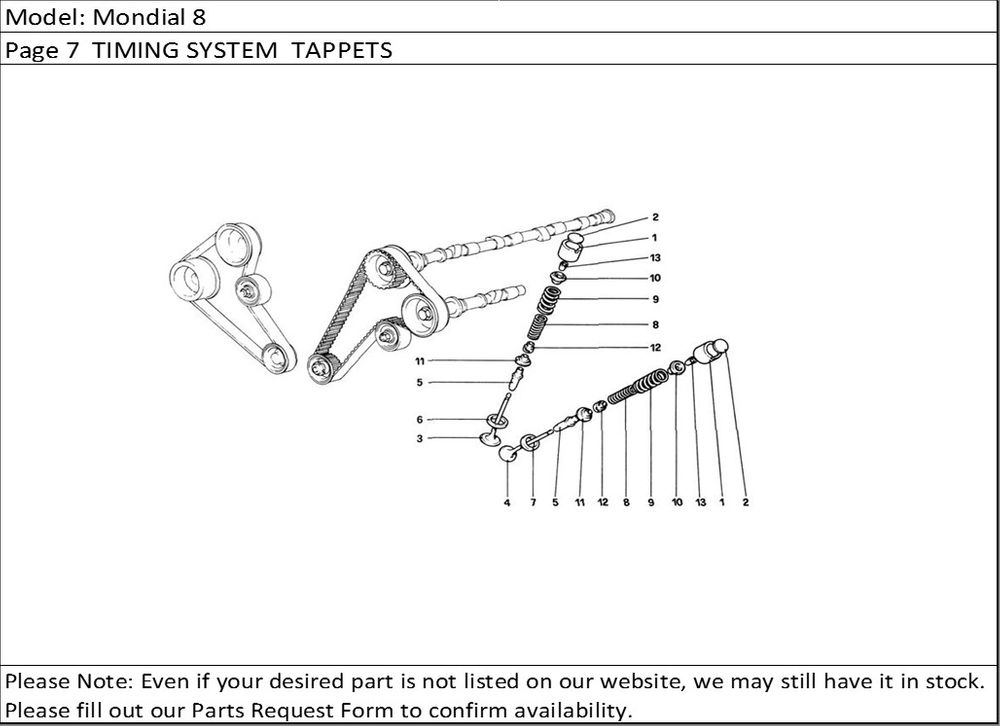

Page 7 TIMING SYSTEM TAPPETS

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	100232	Punteria comando valvola	16
2	102850	Idem spessore mm. 4,35	16
2	102834	Idem spessore mm. 3,55	16
2	108671	Idem spessore mm. 3,45	16
2	108669	Idem spessore mm. 3,35	16
2	108667	Idem spessore mm. 3,25	16
2	102848	Piattello registrazione valvole spessore mm. 3,95	16
2	102854	Idem spessore mm. 4,55	16
2	102852	Idem spessore mm. 4,45	16
2	108670	Idem spessore mm. 3,40	16
2	116105	Idem spessore mm. 3,92	16
2	102836	Idem spessore mm. 3,65	16
2	102837	Idem spessore mm. 3,70	16
2	102842	Idem spessore mm. 4,25	16
2	116110	Idem spessore mm. 4,17	16
2	102845	Idem spessore mm. 4,10	16
2	102844	Idem spessore mm. 4,05	16
2	102843	Idem spessore mm. 4,00	16
2	102841	Idem spessore mm. 3,90	16
2	102840	Idem spessore mm. 3,85	16
2	102839	Idem spessore mm. 3,80	16
2	102838	Idem spessore mm. 3,75	16
2	116104	Idem spessore mm. 3,87	16
2	116103	Idem spessore mm. 3,82	16
2	102835	Idem spessore mm. 3,60	16
2	116109	Idem spessore mm. 4,12	16
2	102849	Idem spessore mm. 4,30	16
2	102851	Idem spessore mm. 4,40	16
2	104347	Idem spessore mm. 4,60	16
2	102846	Idem spessore mm. 4, is	16
2	116106	Idem spessore mm. 3,97	16
2	102853	Idem spessore mm. 4,50	16
2	116108	Idem spessore mm. 4,07	16
2	116107	Idem spessore mm. 4,02	16
2	102847	Idem spessore mm. 4,20	16
2	116102	Idem spessore mm. 3,77	16
2	116101	Idem spessore mm. 3,72	16
2	116100	Idem spessore mm. 3,67	16
2	108668	Idem spessore mm. 3,30	16
2	102833	Idem spessore mm. 3,50	16
3	103575	Valvola di aspirazione	8
4	106553	Valvola di scarico	8
5	107026	Guida valvola maggiorata	16
5	102857	Guida valvola	16
6	105722	Sede valvola aspirazione	8
7	102859	Sede valvola scarico	8
8	100239	Molla interna richiamo valvola	16
9	100240	Molla esterna richiamo valvola	16
10	106180	Scodellino superiore tenuta molle	16
11	106181	Scodellino inferiore tenuta molle	16
12	100243	Paraolio sulla guida valvola	16
13	102862	Semicono per scodellino molla valvola	32
32	82254300	LH BRACKET
33	69129500	ROLLER
1	9664	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid	1
1	9665	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching	1
1	9690	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather-	1
1	9691	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara-	1
1	9666	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather-	1
1	9667	L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara-	1
1	9692	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for	1
1	9693	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for	1
1	9668	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for	1
1	9669	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid	1
1	9694	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid	1
1	9695	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid	1
1	9670	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without	1
1	9671	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara-	1
1	9696	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for	1
1	9697	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for	1
1	9672	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for	1
1	9673	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for	1
1	9698	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather-	1
1	9699	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara-	1
1	9674	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather-	1
1	9675	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather-	1
1	9700	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather-	1
1	9701	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather-	1
1	9676	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel	1
1	9677	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather-	1
1	9702	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather-	1
1	9703	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather-	1
1	9678	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather-	1
1	9679	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather-	1
1	9704	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather-	1
1	9705	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching	1
1	9680	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather-	1
1	9681	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather-	1
1	9706	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather-	1
1	9707	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather-	1
1	9682	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather-	1
1	9683	L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather-	1
