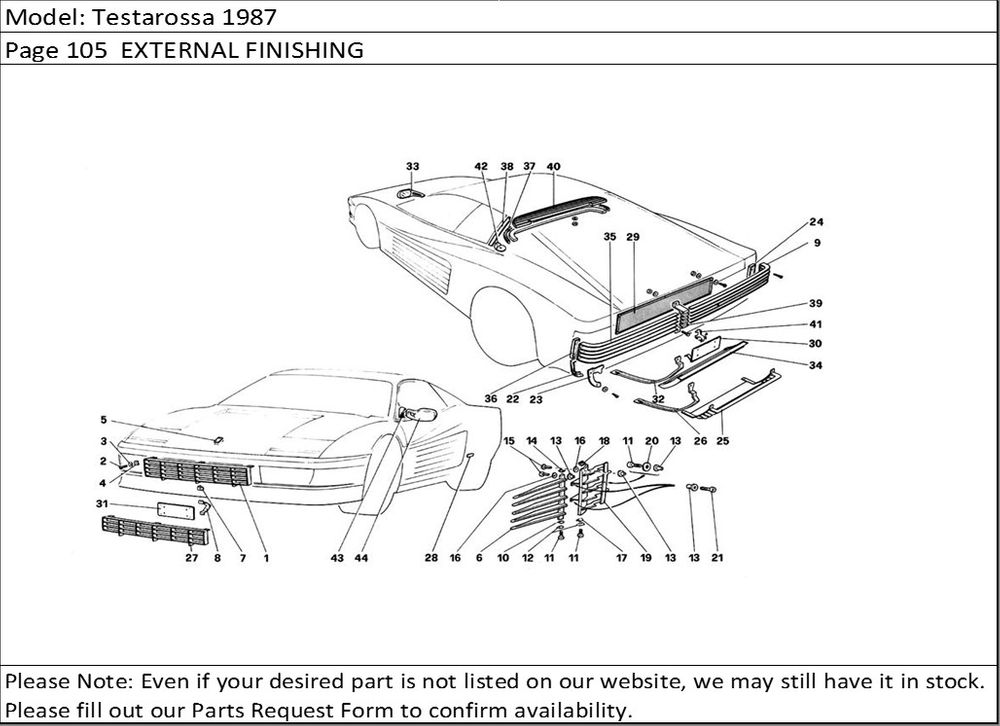

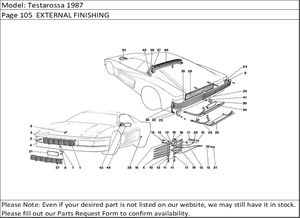

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 61488200 | Front grillNot for CDN | 1 |
2 | 15644101 | Screw | 3 |
3 | 10519301 | Washer | 3 |
4 | 14189476 | Fixing spring | 3 |
5 | 60795400 | Front ornament | 1 |
6 | 61488400 | Left door grill | 1 |
6 | 61488300 | Right door grill | 1 |
7 | 61488500 | Licence plate support bracket | 2 |
8 | 61488600 | Licence plate support bracket For F-l | 2 |
9 | 61490600 | Rear R.H. grill | 1 |
10 | 61488700 | Lower pad fixing right door grill | 1 |
10 | 61488800 | Lower pad fixing left door grill | 1 |
11 | 13310811 | Screw | 6 |
12 | 61488900 | Special washer | 4 |
13 | 15627611 | Rivet | 10 |
14 | 61489100 | Upper pad fixing right door grill | 1 |
14 | 61489000 | Upper pad fixing left door grill | 1 |
15 | 13274411 | Screw | 4 |
16 | 12624101 | Washer | 4 |
17 | 61489300 | Lower pad fixing left side grill | 1 |
17 | 61489200 | Lower pad fixing right side grill | 1 |
18 | 61489500 | Upper pad fixing left side grill | 1 |
18 | 61489400 | Upper pad fixing right side grill | 1 |
19 | 61489700 | Left side grill | 1 |
19 | 61489600 | Right side grill | 1 |
20 | 12646801 | Washer | 2 |
21 | 13311011 | Screw | 4 |
22 | 61548000 | Left pad For CDN | 1 |
22 | 61547900 | Right pad For CDN | 1 |
22 | 61489900 | Left pad Not for CDN | 1 |
22 | 61489800 | Right pad Not for CDN | 1 |
23 | 61490000 | Right plate for pad | 1 |
23 | 61490100 | Left plate for pad | 1 |
24 | 61490800 | Right gasket | 1 |
25 | 61531800 | Rear underbody grill For US - SA - C7 | 1 |
26 | 61531900 | L.H. grill bracketFor US - SA - C7 | 1 |
26 | 61532000 | R.H. grill bracketFor US - SA - C7 | 1 |
27 | 61547800 | Front grill For CDN | 1 |
28 | 61490200 | Pininfarina ornament | 2 |
29 | 61490300 | Net for engine air exhaust | 1 |
30 | 61537100 | Rear plate holder Not for US - SA | 1 |
30 | 61537200 | Rear plate holder For US - SA | 1 |
31 | 61537000 | Front plate holder CEE | 1 |
31 | 61555900 | Front plate holder CDN | 1 |
31 | 61536900 | Front plate holder Italia - F - US | 1 |
32 | 61529600 | RH grill bracketNot for US - SA - C7 | 1 |
32 | 61529700 | LH grill bracketNot for US - SA - C7 | 1 |
33 | 61490400 | Outside mirror (LHD)Until car no. 67077, not for US -SA | 1 |
33 | 61531700 | Outside mirror Until car no. 6707, for US | 1 |
33 | 61531600 | Outside mirror Until car no. 6707, for AUS | 1 |
33 | 61543100 | Outside mirror R.H. Until car no. 6707, for S6 | 1 |
33 | 61530900 | Outside mirror for (RHD)Until car no. 6707, for GB - ZA | 1 |
33 | 61543200 | Outside mirror L.H. Until car no. 6707, for S6 | 1 |
34 | 61529500 | Rear underbody grill Not for US | 1 |
35 | 61490500 | Rear L.H. grill | 1 |
36 | 61490700 | Pad for rear left grill | 1 |
37 | 61499900 | Undergrill gasket | 1 |
38 | 61491100 | Gasket | 2 |
39 | 61490900 | Grill union | 1 |
40 | 61491000 | Under rear window grill | 1 |
41 | 61766400 | Horse | 1 |
42 | 61565500 | L.H. bracket | 1 |
42 | 61565400 | R.H. bracket | 1 |
43 | 61545100 | L.H. cover for S6 | 1 |
43 | 61550000 | L.H. cover From car 67079 | 1 |
43 | 61549900 | R.H. cover Front car 67079 | 1 |
43 | 61545000 | R.H. cover for S6 | 1 |
44 | 61567700 | RH flat glass assy. For US | 1 |
44 | 61555400 | Outside mirror L.H. From car no. 67079, for AUS | 1 |
44 | 61567500 | RH curved glass assy. Not for US | 1 |
44 | 61549700 | Outside mirror R.H. From car no. 67079, for US | 1 |
44 | 61555300 | Outside mirror R.H. From car no. 67079, for AUS | 1 |
44 | 61567600 | LH curved glass assy. Not for US | 1 |
44 | 61556500 | Outside mirror R.H. From car no. 67079, for GB - ZA | 1 |
44 | 61550200 | Outside mirror L.H. - LHDFrom car no. 67079, not for US | 1 |
44 | 61550100 | Outside mirror R.H. - LHDFrom car no. 67079, not for US | 1 |
44 | 61555600 | Outside mirror L.H. From car no. 67079, for GB - ZA | 1 |
44 | 61567900 | Motor assy, for ext. mirror | 2 |
44 | 61567800 | LH flat glass assy. For US | 1 |
44 | 61549800 | Outside mirror L.H. From car no. 67079, for US | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
