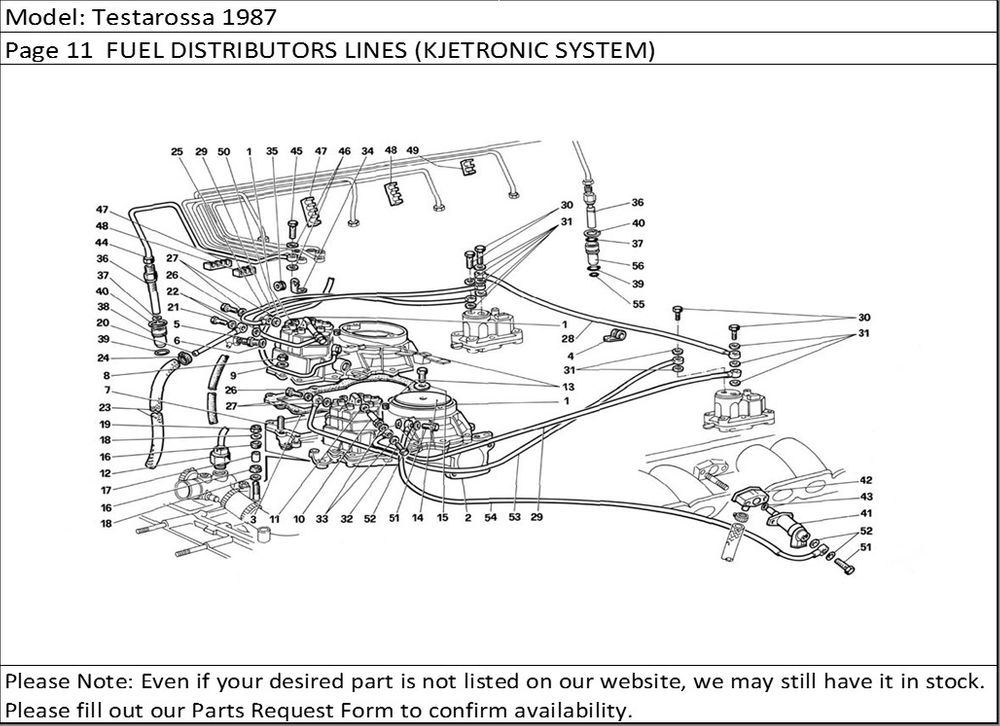

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 123611 | Metering device | 2 |
| 1 | 121461 | Support for metering devices, compl. | 1 |
| 2 | 123117 | Support for metering devices With assy. P.M. 121461 | 1 |
| 3 | 121088 | Gasket | 1 |
| 4 | 10441590 | Small bracket with sheathing | 2 |
| 5 | 115498 | Union with filter. | 2 |
| 6 | 11270160 | Gasket | 2 |
| 7 | 13541021 | Stud | 24 |
| 8 | 12574211 | Nut | 23 |
| 9 | 12601271 | Washer | 24 |
| 10 | 113660 | Union for fuel delivery to regulator | 2 |
| 11 | 14330260 | Washer | 2 |
| 12 | 113980 | Thermo-time switch | 1 |
| 13 | 115650 | Protection cap for ifling adjusting screw | 2 |
| 14 | 124408 | Air sensor plate | 2 |
| 15 | 120809 | Supporting washer | 2 |
| 16 | 123134 | Pad | 8 |
| 17 | 123135 | Distanche tube | 4 |
| 18 | 106744 | Spring washer | 8 |
| 19 | 12574211 | Nut | 4 |
| 20 | 125124 | Swinging assy, of fuel return from L.H. metering device | 1 |
| 20 | 125123 | Swinging assy, of fuel return from R.H. metering device | 1 |
| 21 | 111644 | Union | 2 |
| 22 | 113910 | Gasket | 4 |
| 23 | 116772 | L.H. return hose | 1 |
| 23 | 126800 | R.H. return hose | 1 |
| 24 | 12179490 | Clamp | 4 |
| 25 | 123728 | Shaped pipe from R.H. warm-up regulator | 1 |
| 26 | 113664 | Union | 4 |
| 27 | 14330260 | Union | 8 |
| 28 | 123736 | Shaped pipe for connection of | 1 |
| 29 | 123738 | Fuel to warm-up regulator delivery pipe | 2 |
| 30 | 114018 | Union | 2 |
| 31 | 10260160 | Gasket | 6 |
| 32 | 113664 | Union | 2 |
| 33 | 14330260 | Gasket | 4 |
| 34 | 123744 | Distributor lines supporting bracket | 2 |
| 35 | 10396580 | Wire carrier | 2 |
| 36 | 113975 | Injector | 12 |
| 37 | 113570 | Seal ring | 12 |
| 38 | 113309 | Injector holding bushUntil engine No. | 12 |
| 39 | 101031 | Garter ring | 12 |
| 40 | 103326 | Stop ring | 12 |
| 41 | 113979 | Cold start injector | 2 |
| 42 | 121056 | Injector connecting union | 2 |
| 43 | 103039 | Seal ring | 2 |
| 44 | 123753 | Shaped fuel from metering device to injector of no. 9 cylinder | 1 |
| 44 | 123750 | Shaped fuel from metering device to injector of no. 6 cylinder | 1 |
| 44 | 123755 | Shaped fuel from metering device to injector of no. 11 cylinder | 1 |
| 44 | 123748 | Shaped fuel from metering device to injector of no. 4 cylinder | 1 |
| 44 | 123746 | Shaped fuel from metering device to injector of no. 2 cylinder | 1 |
| 44 | 123745 | Shaped fuel from metering device to injector of no. 1 cylinder | 1 |
| 44 | 123751 | Shaped fuel from metering device to injector of no. 7 cylinder | 1 |
| 44 | 123747 | Shaped fuel from metering device to injector of no. 3 cylinder | 1 |
| 44 | 123756 | Shaped fuel from metering device to injector of no. 12 cylinder | 1 |
| 44 | 123754 | Shaped fuel from metering device to injector of no. 10 cylinder | 1 |
| 44 | 123749 | Shaped fuel from metering device to injector of no. 5 cylinder | 1 |
| 45 | 113664 | Union | 12 |
| 46 | 14330260 | Copper washer | 24 |
| 47 | 115595 | 4-way pipe supporting clamp | 4 |
| 48 | 113896 | 3-way pipe supporting clamp | 8 |
| 49 | 117279 | 2-way pipe supporting clamp | 2 |
| 50 | 123781 | Shaped fuel pipe for R.H. cold start | 1 |
| 51 | 113664 | Union | 4 |
| 52 | 14330260 | Gasket | 8 |
| 53 | 125225 | Shaped pipe from L.H. warm-up regulator | 1 |
| 54 | 123783 | Shaped fuel pipe from L.H. cold start | 1 |
| 55 | 101030 | Garter ring For bush PN 123936 | 12 |
| 56 | 123936 | Injector holding bush After exhaustion of bush PN 113309 | 12 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
