Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

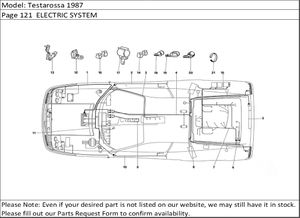

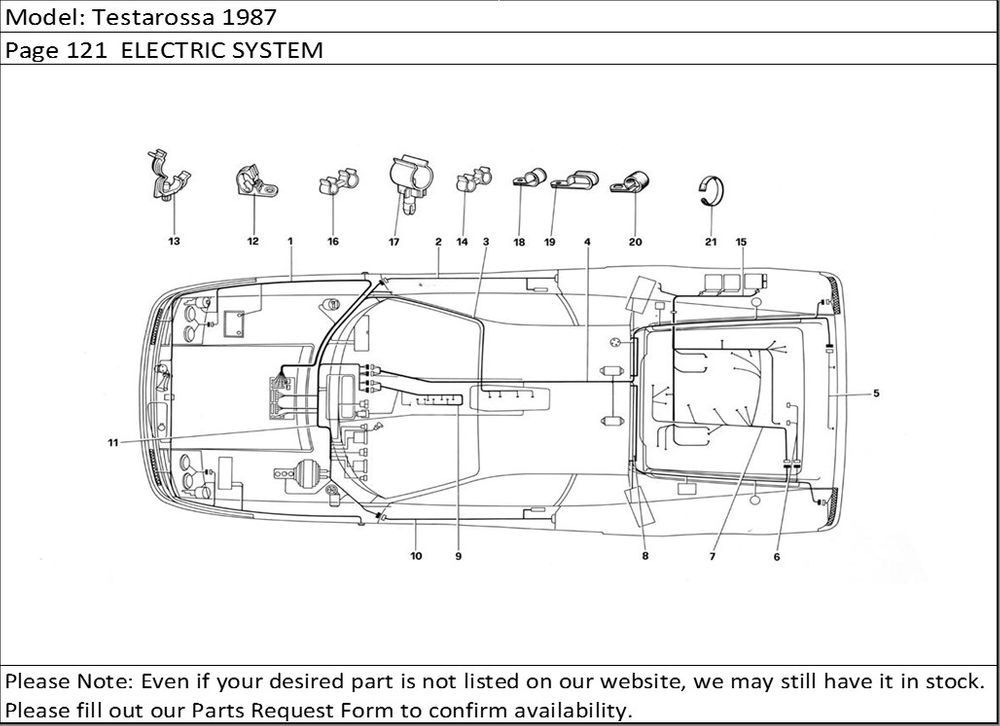

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 131527 | Front cables For U7 | 1 |
1 | 123656 | Front cables LHD Until car no. 65907 - Not for US | 1 |
1 | 124151 | Front cables RHDUntil car no. 65907 | 1 |
1 | 123668 | Front cables For U6 | 1 |
1 | 131525 | Front cables RHD Starting from car no. 65909 | 1 |
1 | 131526 | Front cables LHD Starting from car no. 65909 - Not for US | 1 |
2 | 131912 | Cables for door passenger - RHDStarting from car no. 67079 | 1 |
2 | 131481 | Cables for door passenger side Starting from car 67079 | 1 |
2 | 123665 | Cables for door passenger sideUntil car no. 67077 - Not for S6 | 1 |
2 | 129679 | Cables for doc. passenger side For S6 | 1 |
3 | 123660 | Roof cables Not for US | 1 |
3 | 123672 | Roof cables For US | 1 |
4 | 132532 | Cables for rear side and engineFor S7 | 1 |
4 | 132509 | Cables for rear side and engine For CDN and J from car no. 67079 | 1 |
4 | 132391 | Cables for rear side and engine For C7 | 1 |
4 | 132320 | Cables for rear side and engine For B1 - Starting from car no. 67547 | 1 |
4 | 131164 | Cables for rear side and engine For B1 - Until car no. 67545 | 1 |
4 | 129908 | Cables for rear side and engine For J - 86 | 1 |
4 | 127006 | Cables for rear side and engine For S6 - C6 | 1 |
4 | 123657 | Cables for rear side and engineUntil car no. 65909 Not for US - CH - SA- J | 1 |
4 | 123669 | Cables for rear side and engine For U6 | 1 |
4 | 131478 | Cables for rear side and engine For U7 | 1 |
5 | 123663 | Number plate lights cables | 1 |
6 | 123662 | Cables for sensor Until car 65907 | 1 |
6 | 131168 | Cables for sensor Starting from car no. 65909 | 1 |
7 | 131165 | Engine cables For B1 - U7 - C7 - S7 | 1 |
7 | 123658 | Engine cables For A1 | 1 |
7 | 123670 | Engine cables For U6 | 1 |
7 | 127007 | Engine cables For C6 and S6 | 1 |
8 | 61527700 | LH electrical system retaining screen | 1 |
8 | 61527600 | RH electrical system retaining screen | 1 |
9 | 129677 | Console cablesFor S6 | 1 |
9 | 123666 | Console cables For A1 - US - C6 - B1 | 1 |
9 | 131479 | Console cables For B2- U7-C7-S7- B3 | 1 |
10 | 129678 | Cables for door driver side For S6 | 1 |
10 | 131480 | Cables for door driver side (LHD)Starting from car 67079 | 1 |
10 | 123664 | Cables for door driver side Until car 67077 - Not for S6 | 1 |
10 | 131913 | Cables for door drive side (RHD)Starting from car 67079 | 1 |
11 | 123655 | Dashboard cables Until car n. 67077 - Not for RHD - US - SA | 1 |
11 | 131477 | Dashboard cables For U7 | 1 |
11 | 123667 | Dashboard cables For U6 | 1 |
11 | 131909 | Dashboard cables For B2 | 1 |
11 | 131914 | Dashboard cables For B3 | 1 |
11 | 132390 | Dashboard cablesFor C7 | 1 |
11 | 132508 | Dashboard cables For S7 - CDN 87 - J 87 | 1 |
11 | 124152 | Dashboard cables RHD Until car 67077 | 1 |
11 | 129676 | Dashboard cables For S6 | 1 |
12 | 129544 | Clip | 1 |
13 | 61681600 | Retainer spring | 11 |
13 | 61527800 | Retainer spring | 1 |
14 | 131180 | Retainer spring | 1 |
15 | 127008 | KE injection cables For C6 and S6 | 1 |
15 | 123673 | KE injection cables For U6 | 1 |
15 | 131482 | KE injection cablesFor U7 | 1 |
15 | 132393 | KE injection cables For C7 | 1 |
15 | 131170 | KE injection cables For B1 and S7 | 1 |
16 | 131179 | Retainer spring | 2 |
17 | 131181 | Retainer spring | 3 |
18 | 10418301 | Clamp (0 8 mm.) | 3 |
18 | 10418401 | Clamp (0 12mm.) | 2 |
18 | 10420301 | Clamp (04mm.) | 1 |
18 | 10418601 | Clamp (0 14 mm.) | 1 |
19 | 10416401 | Clamp (0 14 mm.) | 1 |
20 | 10450190 | Clamp (0 1 0 mm.) | 4 |
20 | 10450790 | Clamp (022 mm.) | 1 |
20 | 10450490 | Ctamp (0 16 mm.) | 1 |
21 | 110381 | Strip | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
