Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

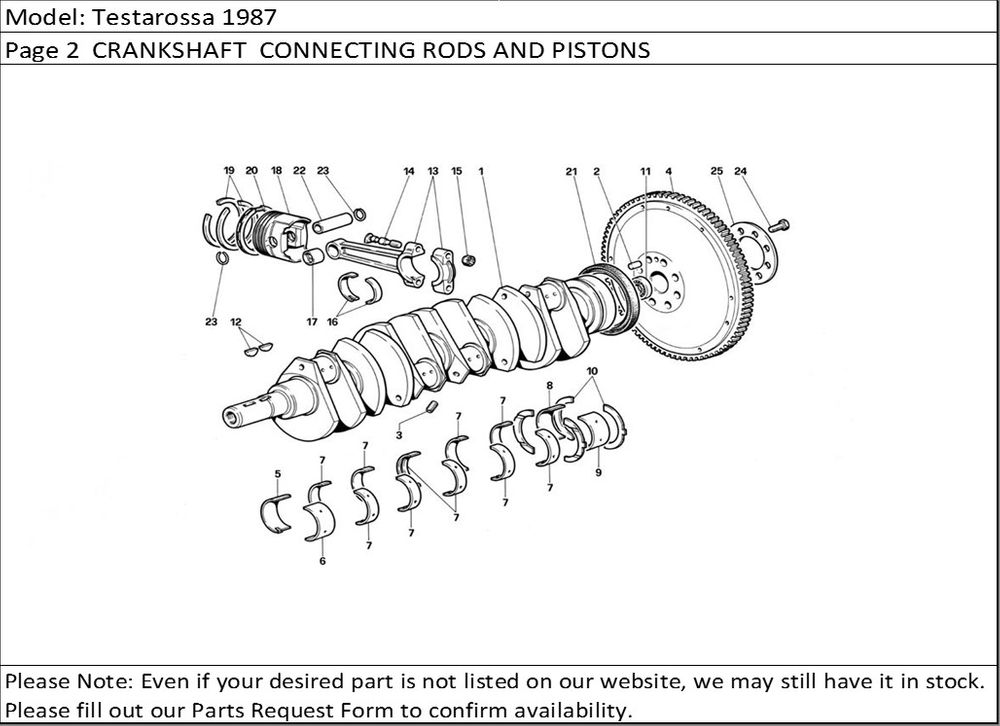

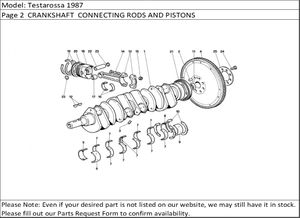

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 120902 | Crankshaft | 1 |
| 2 | 100185 | Dowel | 1 |
| 3 | 14326150 | Plug | 12 |
| 4 | 130644 | FlywheelFor B1 | 1 |
| 4 | 125780 | FlywheelFor US - CH - SA | 1 |
| 4 | 123923 | Flywheel For A1, from engine no. 258 use PN 128538 | 1 |
| 5 | 100120 | 2nd undersize 0.508 mm. on ? | 1 |
| 5 | 100118 | Right front half bearing | 1 |
| 5 | 100119 | 1st undersize 0.254 mm on ? | 1 |
| 5 | 100119 | 1st undersize 0.254 mm on ? | 1 |
| 6 | 100123 | 1st undersize 0.254 mm. on ? | 1 |
| 6 | 100124 | 2nd undersize 0.508 mm. on ? | 1 |
| 6 | 100122 | Left front half bearing | 1 |
| 6 | 100124 | 2nd undersize 0.508 mm. on ? | 1 |
| 7 | 100134 | Right and left Interm. half bearing | 10 |
| 7 | 100135 | 1st undersize 0.254 mm. on ? | 1 |
| 7 | 100135 | 1st undersize 0.254 mm. on ? | 1 |
| 7 | 100136 | 2nd undersize 0.508 mm. on ? | 1 |
| 8 | 100140 | 2nd undersize 0.508 on ? | 1 |
| 8 | 100138 | Right rear half bearing | 1 |
| 8 | 100140 | 2nd undersize 0.508 on ? | 1 |
| 8 | 100139 | 1st undersize 0.254 on ? | 1 |
| 9 | 100143 | 1st undersize 0.254 mm. on ? | 1 |
| 9 | 100143 | 1st undersize 0.254 mm. on ? | 1 |
| 9 | 100142 | Left rear half bearing | 1 |
| 9 | 100144 | 2nd undersize 0.508 mm. on ? | 1 |
| 10 | 100147 | 2nd oversize 0.25 mm. | 1 |
| 10 | 100146 | Shim for rear support | 1 |
| 10 | 113984 | 1st oversize 0.127 mm. | 1 |
| 11 | 103877 | Bearing for clutch shaft support | 1 |
| 12 | 109738 | Connecting rod, complete | 12 |
| 12 | 10206520 | Feather key on crankshaft | 2 |
| 13 | 109688 | Connecting rod and cap With assy P.N. 109738 | 12 |
| 14 | 100156 | Connecting rod tightening bolt | 24 |
| 15 | 104011 | Nut for connecting rod tightening | 24 |
| 16 | 100152 | 2nd undersize 0.508 mm. on 0 | 1 |
| 16 | 100151 | 1st undersize 0.254 mm. on 0 | 1 |
| 16 | 100150 | Connecting rod hald bearing | 24 |
| 17 | 107100 | Bush for godgeon pin | 12 |
| 18 | 120449 | Piston, complete Not for U.S. | 12 |
| 18 | 121531 | Set of segments | 1 |
| 18 | 120450 | Piston, complete Not for U.S. | 12 |
| 19 | 119850 | AC seal ring 1st and 2nd groove, with set P.N. 121531 | 24 |
| 20 | 119851 | ROF scraper ring 3rd groove with set P.N. 121531 | 12 |
| 21 | 100014 | Seal ring | 1 |
| 22 | 119537 | Gudgeon pin | 12 |
| 23 | 100174 | Ring for gudgeon pin | 24 |
| 24 | 103875 | Flywheel securing screw | 8 |
| 25 | 108662 | Safety plate | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
