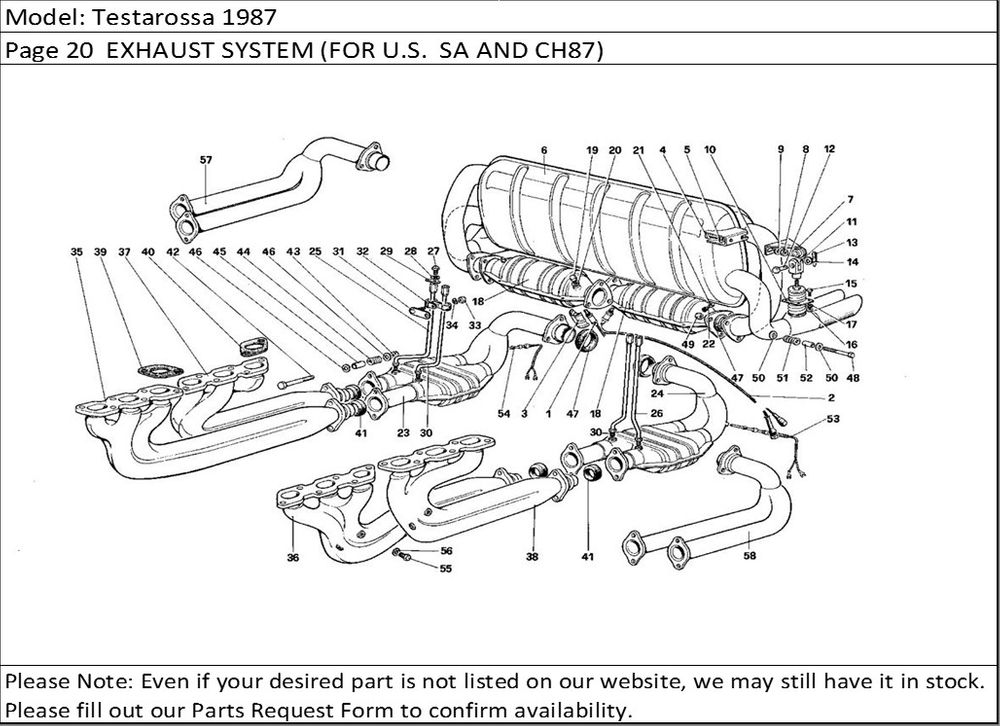

Testarossa 1987 Page 20 EXHAUST SYSTEM (FOR U.S. SA AND CH87)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 125881 | Oxygen sensor cyl. bankNot for SA | 1 |
| 2 | 121515 | Oxygen sensor cyl. bank | 1 |
| 3 | 121833 | Protection | 2 |
| 4 | 16043521 | Screw | 4 |
| 5 | 12646701 | Washer | 2 |
| 6 | 125928 | Exhaust silencer For US | 1 |
| 6 | 131043 | Ferrari Testarossa 1990 Stainless Steel Sports Exhaust For SA | 1 |
| 6 | 131524 | Exhaust silencer For C7 | 1 |
| 7 | 122689 | Bracket | 2 |
| 8 | 114748 | Nut | 4 |
| 9 | 10519601 | Washer | 4 |
| 10 | 106052 | Buffer | 2 |
| 11 | 108257 | Fork | 2 |
| 12 | 10033411 | Pin | 2 |
| 13 | 10796401 | Split pin | 2 |
| 14 | 103167 | Washer | 2 |
| 15 | 10977621 | Screw | 8 |
| 16 | 15896411 | Nut | 8 |
| 17 | 106849 | Washer | 8 |
| 18 | 121385 | Catalytic converterNot for SA | 2 |
| 19 | 110860 | PlugNot for SA | 2 |
| 20 | 10298460 | GasketNot for SA | 2 |
| 21 | 100436 | NutNot for SA | 2 |
| 22 | 125858 | BallNot for SA | 2 |
| 23 | 125906 | R.H. light-off catalystNot for SA | 1 |
| 24 | 125907 | L.H. light-off catalystNot for SA | 1 |
| 25 | 125929 | R.H. external analyzing pipeNot for SA | 1 |
| 26 | 125930 | L.H. external analyzing pipeNot for SA | 1 |
| 27 | 103748 | PlugNot for SA | 4 |
| 28 | 103749 | GasketNot for SA | 4 |
| 29 | 103587 | PlateNot for SA | 4 |
| 30 | 125899 | Analyzing pipes internalNot for SA | 2 |
| 31 | 125898 | Bracket | 2 |
| 32 | 10418101 | BracketNot for SA | 4 |
| 33 | 15896221 | NutNot for SA | 2 |
| 34 | 106850 | Washer | 2 |
| 35 | 125912 | R.H. front exhaust manifold | 1 |
| 36 | 125913 | L.H. front exhaust manifold | 1 |
| 37 | 125914 | R.H. rear exhaust manifold | 1 |
| 38 | 125915 | L.H. rear exhaust manifold | 1 |
| 39 | 124693 | Gasket R.H. front - L.H. rear | 6 |
| 40 | 124694 | Gasket L.H. front - R.H. rear | 6 |
| 41 | 125917 | Gasket | 4 |
| 42 | 125924 | Screw | 8 |
| 43 | 114748 | Nut | 8 |
| 44 | 111743 | Spring | 8 |
| 45 | 114749 | Spacer | 8 |
| 46 | 112761 | Washer | 16 |
| 47 | 121426 | Gasket | 4 |
| 48 | 123198 | ScrewAfter exhaustion use no. 121676 | 12 |
| 49 | 121677 | Nut | 12 |
| 50 | 121678 | Washer | 24 |
| 51 | 121674 | Spring | 12 |
| 52 | 121675 | Spacer | 12 |
| 53 | 61653200 | Thermocouple cylinder bank 7-12For C7 use No. 132396 | 1 |
| 54 | 61653100 | Thermocouple cylinder bank 1-6For C7 use No. 132395 | 1 |
| 55 | 110860 | Plug | 12 |
| 56 | 10298460 | Gasket | 12 |
| 57 | 128589 | Exhaust pipe from RH manifold to silencerFor SA and US car delivered at the factory | 1 |
| 58 | 128590 | Exhaust pipe from LH manifold to silencerFor SA and US car delivered at the factory | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
