Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

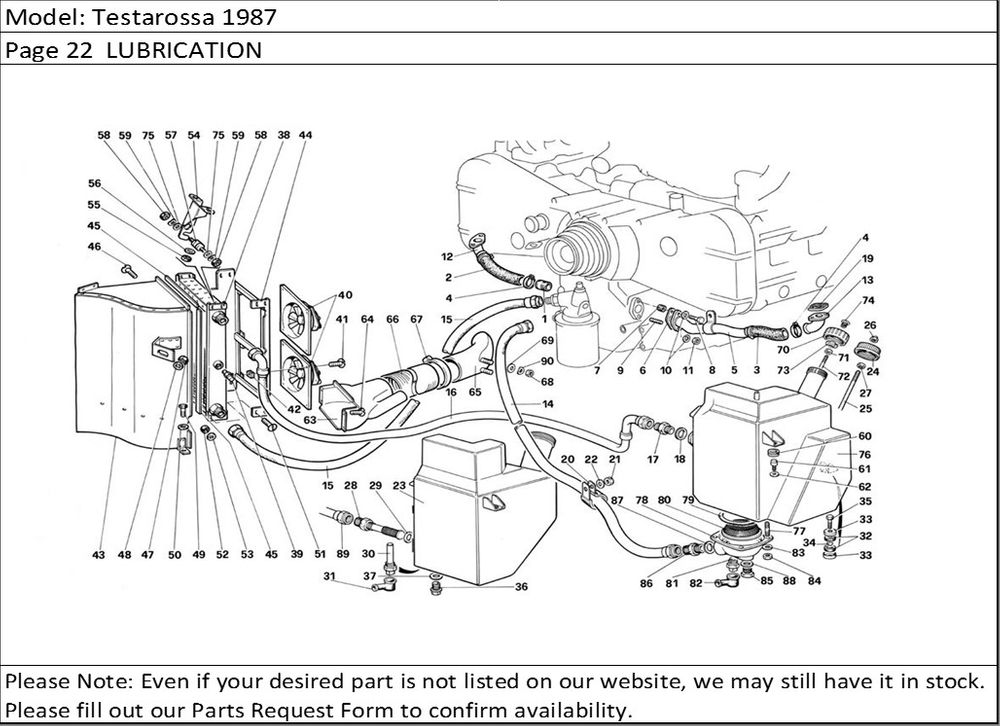

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 104561 | Union | 1 |
| 2 | 122828 | Sleeve | 1 |
| 3 | 122829 | Sleeve | 1 |
| 4 | 12173090 | Clamp | 4 |
| 5 | 125900 | L.H. cyl. head oil exhaust pipe | 1 |
| 6 | 104558 | Gasket | 1 |
| 7 | 13525570 | Heli-coil on gearbox casing | 1 |
| 8 | 10902321 | Screw | 1 |
| 9 | 11500221 | Stud | 1 |
| 10 | 10516471 | Washer | 2 |
| 11 | 15896221 | Nut | 1 |
| 12 | 122826 | R.H. cy!. head oil exhaust port | 1 |
| 13 | 122827 | L.H. cyl. head oil exhaust port | 1 |
| 14 | 124168 | Hose, from reservoir fo pump | 1 |
| 15 | 124169 | Hose from pump to radiator | 1 |
| 16 | 124170 | Hose from radiator to reservoirFor reservoir no. 122860 | 1 |
| 16 | 125903 | Hose from radiator to reservoirFor reservoir no. 125517 | 1 |
| 17 | 109371 | Union | 1 |
| 18 | 10264660 | Gasket | 1 |
| 19 | 122823 | Gasket | 2 |
| 20 | 106195 | Clamp | 2 |
| 21 | 12574211 | Nut | 1 |
| 22 | 14496401 | Washer | 1 |
| 23 | 122860 | Oil reservoir Not for US - CH - SA | 1 |
| 24 | 109719 | Oil filler cap Until exhausted | 1 |
| 25 | 124257 | Oil dip stickFor cap 109719 | 1 |
| 26 | 100044 | Cap nut For cap 109719 | 1 |
| 27 | 15896211 | NutFor cap 169719 | 1 |
| 28 | 122868 | Filter on oil intake dust | 1 |
| 29 | 109649 | Seal ring | 1 |
| 30 | 107576 | Oil thermistor | 1 |
| 31 | 107003 | Protection cap | 1 |
| 32 | 107978 | Rubber bushing | 4 |
| 33 | 107979 | Cup | 4 |
| 34 | 107980 | Distance bushing | 2 |
| 35 | 123029 | Screw | 2 |
| 36 | 10305171 | Plug | 1 |
| 37 | 10263460 | Gasket | 1 |
| 38 | 123276 | Oil radiator | 1 |
| 39 | 123277 | Thermal switch for fan | 1 |
| 40 | 122961 | Electric fanNot for B1 - U7 - C7 - S7 | 2 |
| 40 | 131510 | Electric fanPer B1 U7 - C7 - S7 | 2 |
| 41 | 15688078 | Screw | 8 |
| 42 | 60674700 | Clip | 8 |
| 43 | 124181 | Electric fan hood | 1 |
| 44 | 124180 | Air conveyor | 1 |
| 45 | 124200 | Self-adhesive gasket | 4 |
| 46 | 15888078 | Screw | 2 |
| 47 | 15896221 | Nut | 1 |
| 48 | 106850 | Washer | 1 |
| 49 | 10902321 | Screw | 1 |
| 50 | 106850 | Washer | 1 |
| 51 | 10902121 | Screw | 1 |
| 52 | 15896221 | Nut | 1 |
| 53 | 106850 | Washer | 1 |
| 54 | 123805 | Radiator fastening upper bracket | 1 |
| 55 | 12574221 | Nut | 2 |
| 56 | 12643701 | Washer | 2 |
| 57 | 102947 | Vibration-damping pad | 3 |
| 58 | 15896221 | Nut | 6 |
| 59 | 106850 | Washer | 6 |
| 60 | 10397480 | Wire carrier | 1 |
| 61 | 125708 | Pin | 1 |
| 62 | 108242 | Washer | 1 |
| 63 | 124191 | R.H. conveyor for brakes | 1 |
| 63 | 124192 | R.H. conveyor for brakes | 2 |
| 64 | 15688007 | Screw | 3 |
| 65 | 124943 | Rear conveyor | 2 |
| 66 | 124941 | L.H. hose | 1 |
| 66 | 124940 | R.H. hose | 1 |
| 67 | 12174990 | Clamp | 4 |
| 68 | 15896221 | Nut | 4 |
| 69 | 106850 | Washer | 4 |
| 70 | 126141 | Cap On exhaustion PN 109719 | 1 |
| 71 | 15896211 | Nut For cap 126141 | 1 |
| 72 | 124691 | Oil dip stick For oil reservoir 125517 | 1 |
| 72 | 126144 | Oii dip stick For cap 126141, for oil reservoir PN. 122860 | 1 |
| 73 | 101242 | Ring nut For cap 126141 | 1 |
| 74 | 126142 | Screw For cap 126141 | 1 |
| 75 | 12643701 | Washer | 8 |
| 76 | 125517 | Oil reservoir For US - CH - SA and for every car from 1 - 9 -85 | 1 |
| 77 | 11500421 | Stud | 1 |
| 78 | 125473 | Oil suction pan | 1 |
| 79 | 125521 | OR-ring | 1 |
| 80 | 100332 | Oil suction filter | 1 |
| 81 | 104628 | Oil thermistor | 1 |
| 82 | 104628 | Protection cap | 1 |
| 83 | 12601271 | Nut | 4 |
| 84 | 12574211 | Washer | 4 |
| 85 | 10300711 | Cap | 1 |
| 86 | 110203 | Nipple | 1 |
| 87 | 10303460 | Gasket | 1 |
| 88 | 10257060 | Gasket | 1 |
| 89 | 125475 | Hose from reservoir the pump | 1 |
| 90 | 12643701 | Washer | 4 |
