Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

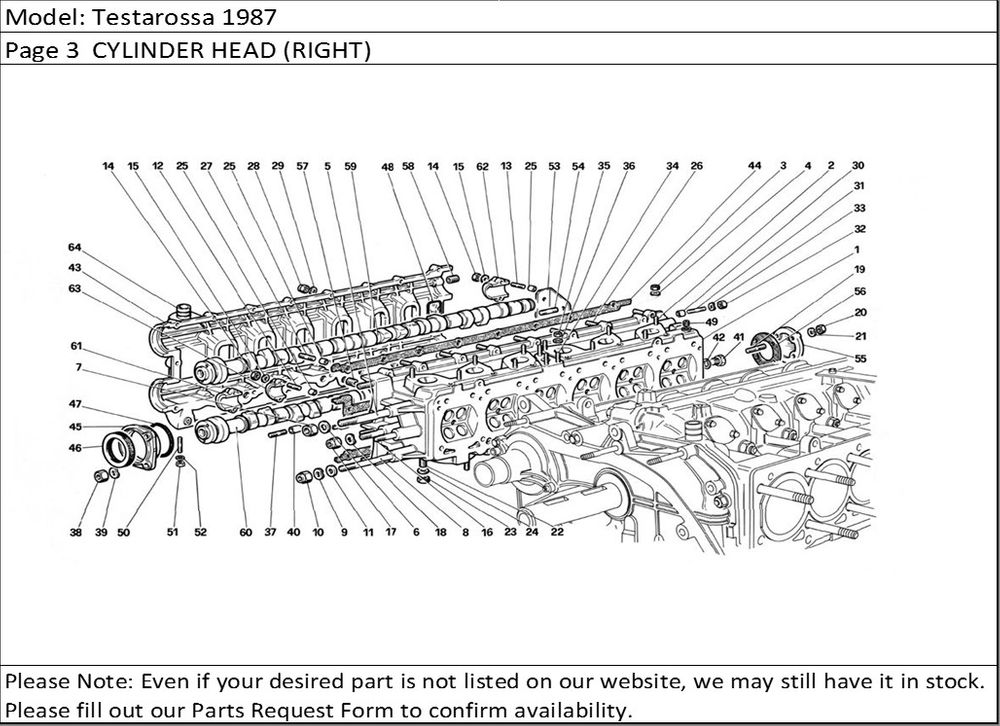

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 123054 | Right cylinder headWith complete cylinder head | 1 |
2 | 12354521 | Stud | 10 |
3 | 16100811 | Nut | 10 |
4 | 11194071 | Washer | 10 |
5 | 13953121 | Stud | 1 |
6 | 12601471 | Washer | 1 |
7 | 12575611 | Nut | 1 |
8 | 13970321 | Stud For Al - B1 | 1 |
8 | 13970421 | Stud For US - CH - SA | 1 |
9 | 12604471 | Washer | 1 |
10 | 16104411 | Nut | 1 |
11 | 112761 | Spring washer | 1 |
12 | 102735 | Stud for inner caps | 24 |
13 | 102754 | Stud for outer caps | 4 |
14 | 15896211 | Nut | 28 |
15 | 11197773 | Washer | 28 |
16 | 13543421 | Stud Belt stretcher | 2 |
17 | 101139 | Nut | 2 |
18 | 12601371 | Washer | 2 |
19 | 13541021 | Stud For B1 - US - CH - SA | 2 |
19 | 11500321 | Stud For A1 | 2 |
20 | 102741 | Nut | 3 |
21 | 12601271 | Washer | 3 |
22 | 13543521 | Stud | 12 |
23 | 105938 | Nut PN 124525 in alternative | 12 |
24 | 106852 | Washer For nut PN 105938 | 12 |
25 | 102725 | Dowel | 30 |
25 | 123064 | Right cylinder head, complete | 1 |
26 | 13541321 | Stud for covers | 16 |
27 | 13541421 | Stud on dowel | 2 |
28 | 100044 | Cap nut | 18 |
29 | 12601271 | Washer | 18 |
30 | 102725 | Dowel for distributor cap support | 2 |
31 | 13541121 | Stud | 2 |
32 | 15896211 | Nut | 2 |
33 | 11197773 | Washer | 2 |
34 | 13541021 | Stud | 3 |
35 | 102741 | Nut | 3 |
36 | 12601271 | Washer | 3 |
37 | 13541121 | Stud | 4 |
38 | 102741 | Nut | 4 |
39 | 12601271 | Washer | 4 |
40 | 102725 | Dowel | 4 |
41 | 10300740 | Water drain plug | 1 |
42 | 10257060 | Gasket | 1 |
43 | 121446 | Right cyl. head cover With cyl. head, until engine A1 (no. 391) and U6 (no.154) | 1 |
43 | 128795 | Right cyl. head cover With cyl. head, starting engine A1 no. 392 and U6 no. 155 | 1 |
44 | 121126 | GasketFor cover PN. 121446 | 1 |
44 | 127227 | GasketFor cover PN. 128795 | 1 |
45 | 121116 | Front cover | 2 |
46 | 114639 | Seal ringPN. 128260 in alternative | 2 |
47 | 117036 | Seal ring | 2 |
48 | 127649 | Seal ringFor cover PN. 128796 | 6 |
49 | 14326150 | Plug8 x 1,25 | 3 |
50 | 11500121 | Stud | 2 |
51 | 15896211 | Nut | 2 |
52 | 12601271 | Washer | 2 |
53 | 124594 | Bracket | 1 |
54 | 11500421 | Stud | 2 |
55 | 103796 | Rear cover | 1 |
56 | 104694 | Gasket | 1 |
57 | 10269750 | Plug | 3 |
58 | 13525470 | Heli-coil | 1 |
59 | 123413 | Right intake camshaft, completeFor Al, starting from engine no. 258, B1-US-CH-SA | 1 |
59 | 123101 | Right intake camshaft, completeFor A1, until engine no. 257 | 1 |
60 | 123105 | Right exhaust camshaft, complete | 1 |
61 | 114499 | Front cap With complete cylinder head | 2 |
62 | 114497 | Rear cap With complete cylinder head | 2 |
63 | 117043 | Intermediate cup With complete cylinder head, after exhaustion use no. 126811 | 10 |
64 | 102705 | Union | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
