Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

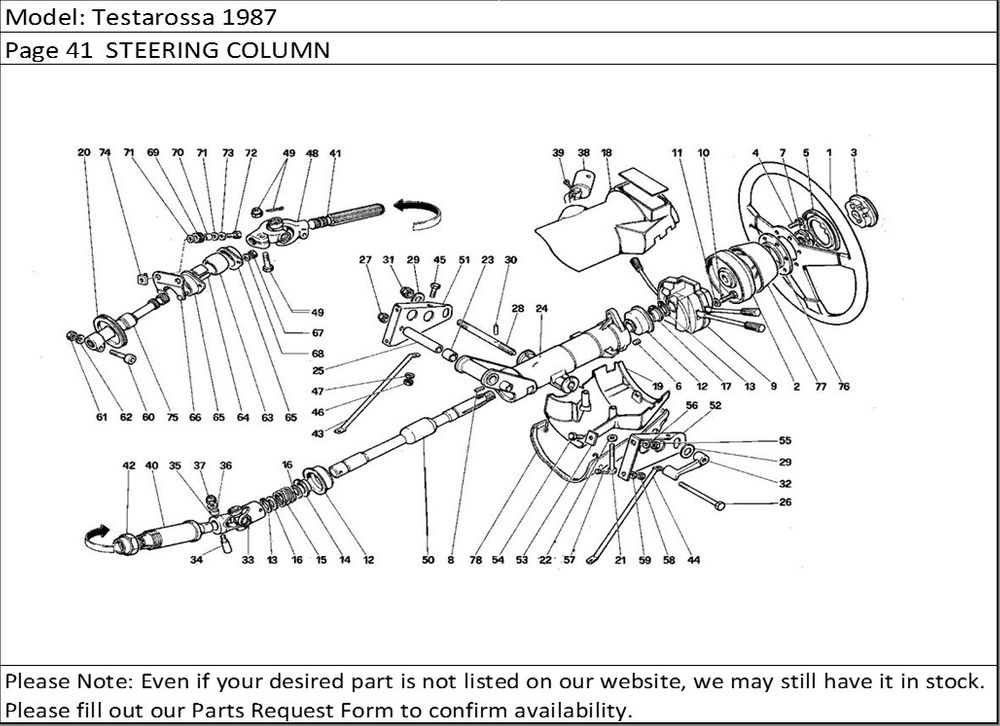

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 119036 | Steering wheel | 1 |
2 | 122244 | Steering wheel hub, complete | 1 |
3 | 101071 | Horn push button with holder | 1 |
4 | 111189 | Steering wheel securing screw | 6 |
5 | 119040 | Ring nut to cover screws | 1 |
6 | 13525170 | Heli-coil | 2 |
7 | 106082 | Upper shaft securing ring nut | 1 |
8 | 101106 | Key | 1 |
9 | 121561 | Main switching unit | 1 |
10 | 10390211 | Screw | 2 |
11 | 12601171 | Washer | 2 |
12 | 121576 | Bearing | 2 |
13 | 11066876 | Seeger ring | 2 |
14 | 121577 | Bearing retaining ring | 1 |
15 | 121578 | Bearing rataining spring | 1 |
16 | 121579 | Washer | 2 |
17 | 125361 | Bearing retaining ring | 1 |
18 | 121580 | Upper steering column cover | 1 |
19 | 121581 | Lower steering column cover | 1 |
20 | 112466 | Extension wire holder | 1 |
21 | 13275217 | Screw | 2 |
22 | 12601171 | Washer | 2 |
23 | 121588 | Bushing | 2 |
24 | 122193 | Steering columm support | 1 |
25 | 121589 | Pipe for steering wheel adjusting pivot | 1 |
26 | 16045021 | Screw | 1 |
27 | 16104411 | Nut | 1 |
28 | 120988 | Spindle for level | 1 |
29 | 114865 | Washer | 2 |
30 | 10333610 | Pin | 1 |
31 | 16105111 | Self-locking nut | 1 |
32 | 121590 | Shaft locking leverNot for U7 | 1 |
32 | 131487 | Shaft locking leverFor U7 | 1 |
33 | 112572 | Upper joint | 1 |
34 | 112573 | Taper pin | 1 |
35 | 112571 | Spacer | 2 |
36 | 10519401 | Washer | 2 |
37 | 12574221 | Nut | 2 |
38 | 121776 | Diode For parts N. 121610 - 122470 | 1 |
38 | 129115 | Anti-thelf device For US and SA, after exhaustion of P.N. 122470 | 1 |
38 | 121610 | Anti-theif device Not for US - SA, until exhausted | 1 |
38 | 122470 | Anti-thelf device For US and SA, until exhausted | 1 |
38 | 129116 | Anti-theif device Not for US - SA, after exhaustion of P,N. 121610 | 1 |
39 | 121611 | Screw | 1 |
40 | 116484 | Guide pipe | 1 |
41 | 108557 | Lower steering shaft | 1 |
42 | 106870 | Adjusting nut | 1 |
43 | 123382 | Right tie rod | 1 |
44 | 123383 | Left tie rod | 1 |
45 | 10902121 | Screw | 4 |
46 | 15896211 | Nut | 4 |
47 | 106850 | Washer | 4 |
48 | 103343 | Lower jointAs alternate use PN 108362 | 1 |
49 | 105032 | Assy For fitting of joint PN 103343 | 1 |
50 | 125359 | Upper steering shaft | 1 |
51 | 120990 | Right bracket | 1 |
52 | 120991 | Left bracket | 1 |
53 | 124826 | Safety plate | 1 |
54 | 10922121 | Screw | 2 |
55 | 15896211 | Nut | 2 |
56 | 106850 | Washer | 2 |
57 | 16043221 | Screw | 2 |
58 | 16100811 | Nut | 2 |
59 | 106852 | Washer | 2 |
60 | 125518 | Screw | 1 |
61 | 125519 | Nut | 1 |
62 | 12601271 | Washer | 1 |
63 | 103297 | Ball | 1 |
64 | 103370 | Bushing | 1 |
65 | 103292 | Flange | 2 |
66 | 123516 | Extension support | 1 |
67 | 12574211 | Nut | 2 |
68 | 10519401 | Washer | 2 |
69 | 103549 | Pad | 2 |
70 | 103550 | Bushing | 2 |
71 | 12640601 | Washer | 4 |
72 | 10902721 | Screw | 2 |
73 | 106850 | Washer | 2 |
74 | 60659100 | Caged nut | 2 |
75 | 123517 | Steering box extension | 1 |
76 | 123099 | Horn retaining plate | 1 |
77 | 123098 | Hub cover | 1 |
78 | 61535700 | Steering columm coverUntil car No. 67077 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
