Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

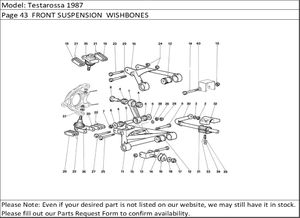

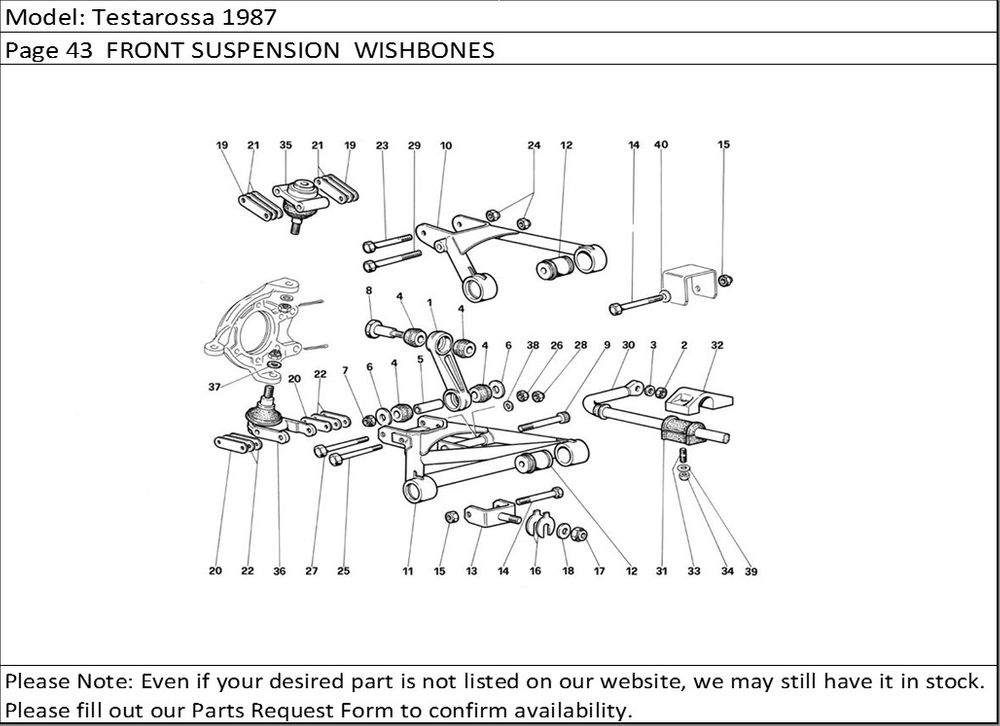

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 114691 | Rod link | 2 |
| 2 | 16103621 | Nut | 2 |
| 3 | 106854 | Washer | 2 |
| 4 | 100984 | Grcmmet | 8 |
| 5 | 100985 | Distance tube | 2 |
| 6 | 117730 | Washer | 4 |
| 7 | 16105121 | Nut | 2 |
| 8 | 121679 | Pin | 2 |
| 9 | 125396 | Screw | 2 |
| 10 | 121392 | Right upper lever | 2 |
| 10 | 121393 | Left upper lever | 2 |
| 11 | 121391 | Left lower lever | 2 |
| 11 | 121390 | Right lower lever | 2 |
| 12 | 111617 | Flamblock | 8 |
| 13 | 127639 | Lower fork | 4 |
| 14 | 106419 | Screw After exhaustion use P.N.1211693 | 8 |
| 15 | 16105121 | Nut | 8 |
| 16 | 107421 | Ditto thickness 3 mm. | 8 |
| 16 | 107418 | Ditto thickness 1.5 mm. | 8 |
| 16 | 107420 | Ditto thickness 2.5 mm. | 8 |
| 16 | 107422 | Ditto thickness 3.25 mm. | 8 |
| 16 | 107025 | Shim for lower fork, thickness 1 mm. (if required) | 8 |
| 16 | 107419 | Ditto thickness 2 mm. | 8 |
| 17 | 12575821 | Nut | 4 |
| 18 | 101041 | Washer | 4 |
| 19 | 115072 | Upper adjusting plate for caster angle (if required) | 4 |
| 20 | 124365 | Lower adjusting plate for caster angle (if required) | 4 |
| 21 | 103256 | Clearance adjusting plate, upper | 8 |
| 22 | 125397 | Clearance adjusting plate, lower | 8 |
| 23 | 109013 | Screw | 2 |
| 24 | 12574521 | Nut | 4 |
| 25 | 112441 | Screw | 2 |
| 26 | 12574521 | Nut | 2 |
| 27 | 15971621 | Screw | 2 |
| 28 | 16105121 | Nut | 2 |
| 29 | 114818 | Screw | 2 |
| 30 | 124985 | Stabilizer rod | 1 |
| 31 | 130606 | Rod retaining pad For support P.N. 133227 | 2 |
| 31 | 118120 | Rod retaining pad For support P.N. 114702 | 2 |
| 32 | 114702 | Support After exhaustion use P.N. 133227 | 2 |
| 33 | 13543121 | Stud | 4 |
| 34 | 16104411 | Nut | 4 |
| 35 | 116280 | Upper ball joint | 2 |
| 36 | 114462 | Lower ball joint | 2 |
| 37 | 101445 | Washer | 2 |
| 38 | 106616 | Washer | 2 |
| 39 | 102683 | Washer | 4 |
| 40 | 106426 | Washer For screw P.N. 106419 | 8 |
