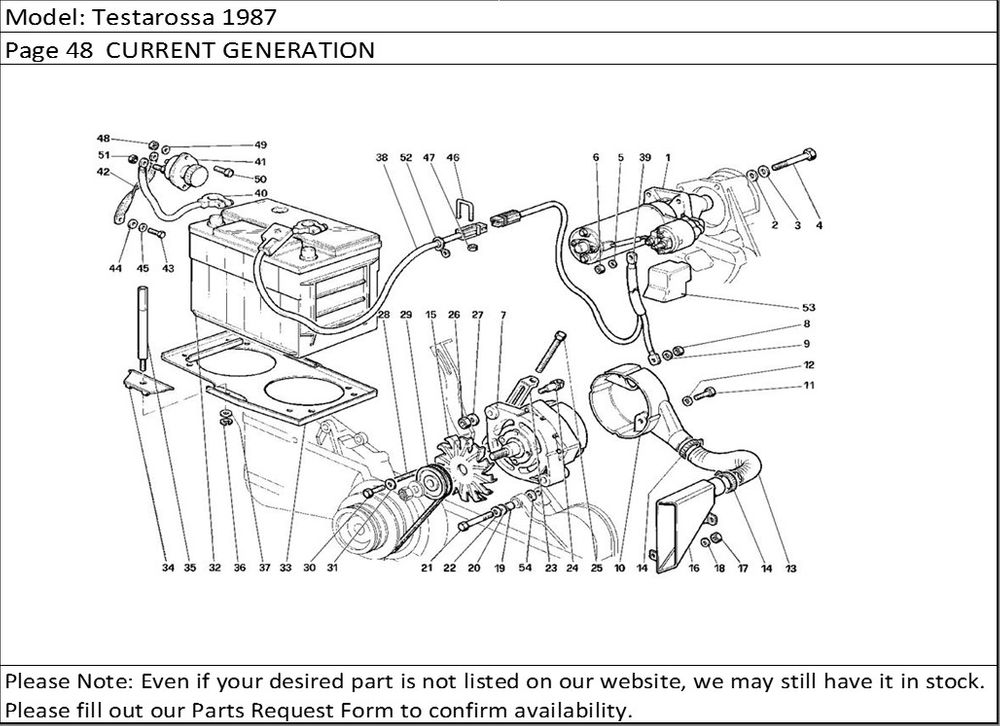

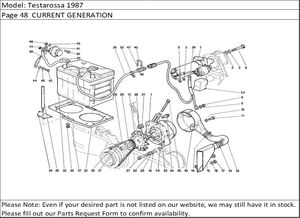

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 120967 | Starter motor | 1 |
| 2 | 104189 | Starter securing screw | 3 |
| 3 | 11198071 | Washer | 3 |
| 4 | 10519621 | Flat washer | 3 |
| 5 | 102683 | Spacer | 1 |
| 6 | - | Nut | 1 |
| 7 | 121281 | Alternator 108A For A1 until exhausted | 1 |
| 7 | 125891 | Alternator 120A For US-CH-SA - B1 and after exhaustion of PN 121281 | 1 |
| 8 | 10725911 | Alternator cables securing nut | 1 |
| 9 | 12601271 | Washer | 1 |
| 10 | 125574 | Air conveyorFor alternator PN. 125891 | 1 |
| 10 | 123278 | Air conveyorFor alternator PN. 121281 | 1 |
| 11 | 123295 | Screw | 1 |
| 12 | 12601471 | Washer | 1 |
| 13 | 123296 | Conveyor flexible hose | 1 |
| 14 | 12177090 | Clamp | 2 |
| 15 | 121282 | Fan | 1 |
| 16 | 124178 | Air-delivery hose | 1 |
| 17 | 12575411 | Nut | 1 |
| 18 | 10615476 | Washer | 1 |
| 19 | 123172 | Bushing on R.H. crankcase cover | 1 |
| 20 | 12638601 | Washer | 1 |
| 21 | 15971821 | Screw | 1 |
| 22 | 106853 | Washer | 1 |
| 23 | 123173 | Alternator bracket | 1 |
| 24 | 123193 | Threaded pin | 1 |
| 25 | 125668 | Voltage regulating screw | 1 |
| 26 | 16104111 | Self-locking nut | 1 |
| 27 | 14496501 | Washer | 1 |
| 28 | 127132 | Alternator control belt Continental | 1 |
| 29 | 121260 | Pulley For A1 (Up to engine No. 100) | 1 |
| 29 | 125910 | PulleyFor A1 (From engine No 101), B1-US-CH-SA | 1 |
| 30 | 15970921 | Braket securing screw | 1 |
| 31 | 106853 | Washer | 1 |
| 32 | 118060 | 1 2 V - 66 Ah - 300 A battery | 1 |
| 33 | 125333 | Battery support plate | 1 |
| 34 | 100839 | Battery securing braket | 1 |
| 35 | 125330 | Pin | 1 |
| 36 | 11065676 | Seeger ring | 1 |
| 37 | 12642721 | Washer | 1 |
| 38 | 123674 | Battery positive cable | 1 |
| 39 | 123675 | Starter and alternator positive cableNot for B1 and U7 | 1 |
| 39 | 131162 | Starter and alternator positive cableFor B1 and U7 | 1 |
| 40 | 123676 | Plait from battery to switch | 1 |
| 41 | 123677 | Battery disconnecting switch | 1 |
| 42 | 123678 | Earthing plait for batt. disconn. | 1 |
| 43 | 16043121 | Screw | 1 |
| 44 | 10519601 | Washer | 1 |
| 45 | 10615679 | Tab washer | 1 |
| 46 | 116591 | Pos. cable fastening U bolt | 1 |
| 47 | 12574011 | Nut | 2 |
| 48 | 12574011 | Nut securing batt. disconn. switch | 2 |
| 49 | 14497701 | Washer | 2 |
| 50 | 14476078 | Nut | 2 |
| 51 | 12575411 | Nut | 1 |
| 52 | 10441490 | Cable support bracket | 2 |
| 53 | 126505 | Protection | 1 |
| 54 | 121678 | Washer | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
