Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

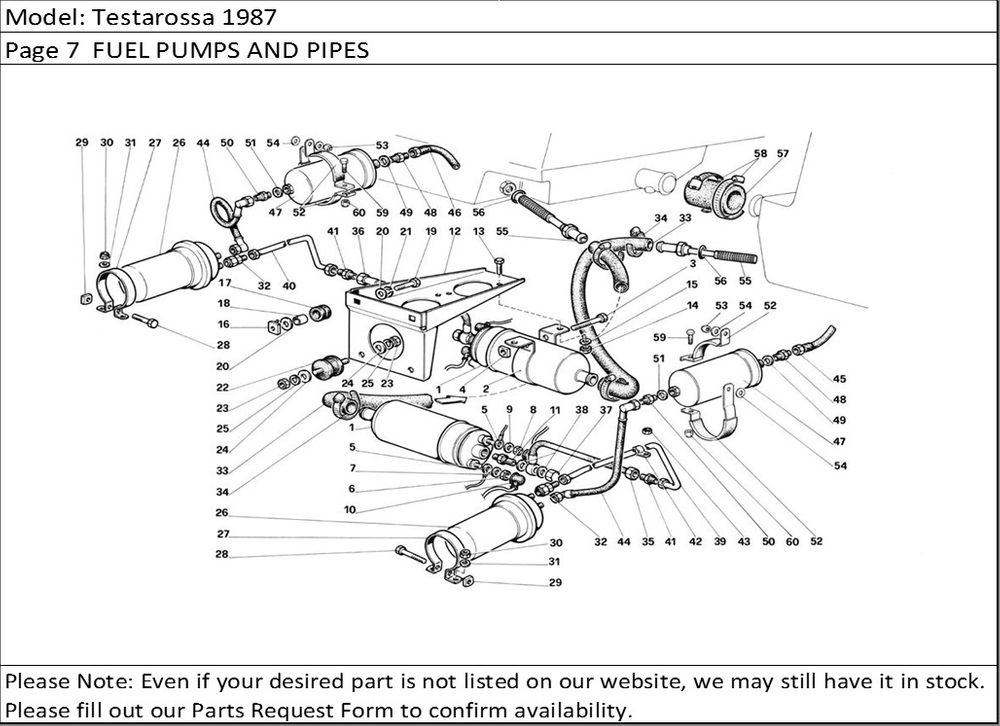

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 121727 | Fuel pump | 2 |
| 2 | 113673 | Pump retaining clamp | 2 |
| 3 | 10377311 | Screw | 2 |
| 4 | 14089311 | Nut | 1 |
| 5 | 125694 | Earth cable | 2 |
| 6 | 15896411 | Nut | 2 |
| 7 | 106849 | Washer | 2 |
| 8 | 10794011 | Nut | 2 |
| 9 | 106848 | Spring washer | 2 |
| 10 | 107003 | Cap | 4 |
| 11 | 120098 | No return valve | 2 |
| 12 | 122735 | Support for pumps | 1 |
| 13 | 10902221 | Screw | 4 |
| 14 | 12574211 | Nut | 4 |
| 15 | 10519421 | Washer | 4 |
| 16 | 60659100 | Nut | 2 |
| 17 | 103549 | Rubber bushing | 2 |
| 18 | 103550 | Spacer | 2 |
| 19 | 10902421 | Screw | 2 |
| 20 | 106850 | Washer | 2 |
| 21 | 12643701 | Spring washer | 2 |
| 22 | 102947 | Pad | 2 |
| 23 | 15896211 | Nut | 4 |
| 24 | 106850 | Washer | 4 |
| 25 | 12643701 | Spring washer | 4 |
| 26 | 125135 | Accumulator Not for A1 | 2 |
| 26 | 113978 | Accumulator For A1 | 2 |
| 27 | 122846 | Accumulator retaining clamp Not for A1 | 2 |
| 27 | 113674 | Accumulator retaining clampFor A1 | 2 |
| 28 | 10376111 | Screw | 2 |
| 29 | 14089311 | Square nut | 2 |
| 30 | 12574211 | Nut | 4 |
| 31 | 10519421 | Washer | 4 |
| 32 | 125216 | Accumulator union For A1 | 2 |
| 32 | 125217 | Accumulator union Not for A1 | 2 |
| 33 | 122736 | Pump tank connecting sleeve | 2 |
| 34 | 12179590 | Clamp | 4 |
| 35 | 123785 | Right hose | 1 |
| 36 | 124155 | Left hose | 1 |
| 37 | 10183217 | Drain plug | 1 |
| 38 | 11270160 | Gasket | 4 |
| 39 | 123790 | Pump to right accumulator conn. pipe | 1 |
| 40 | 123791 | Pump to left accumulator conn. pipe | 1 |
| 41 | 125215 | Union | 2 |
| 42 | 10441190 | Clamp | 8 |
| 43 | 12574211 | Nut | 8 |
| 44 | 123789 | Accumulator to filter conn. pipeFor A1 | 2 |
| 44 | 125199 | Accumulator to filter conn, pipeNot for A1 | 2 |
| 45 | 123792 | Pipe connecting filter to right metering device For A1 | 1 |
| 45 | 125784 | Pipe connecting filter to right metering device Not for A1 | 1 |
| 46 | 123793 | Pipe connecting filter to left metering device For A1 | 1 |
| 46 | 125785 | Pipe connecting filter to left metering device Not for A1 | 1 |
| 47 | 113977 | Fuel filter For A1 | 2 |
| 47 | 117792 | Fuel filter Not for A1 | 2 |
| 48 | 109797 | Union on delivery side | 2 |
| 49 | 113910 | Gasket | 2 |
| 50 | 109889 | Union on feeding side | 2 |
| 51 | 10280060 | Gasket | 2 |
| 52 | 126352 | Clamp Not for A1 | 2 |
| 52 | 113909 | ClampFor A1 | 2 |
| 53 | 16104121 | Nut For A1 | 2 |
| 53 | 12574521 | NutNot for A1 | 2 |
| 54 | 13550401 | WasherNot for A1 | 2 |
| 54 | 12646721 | Washer For A1 | 2 |
| 55 | 122790 | Filter on tank | 2 |
| 56 | 122791 | Garter spring | 2 |
| 57 | 116270 | Tanks connecting sleeve | 1 |
| 58 | 108785 | ClampAfter exhaustion use no. 12173890 | 2 |
| 59 | 10902321 | Screw Not for A1 | 2 |
| 60 | 12575411 | Nut Not for A1 | 2 |
