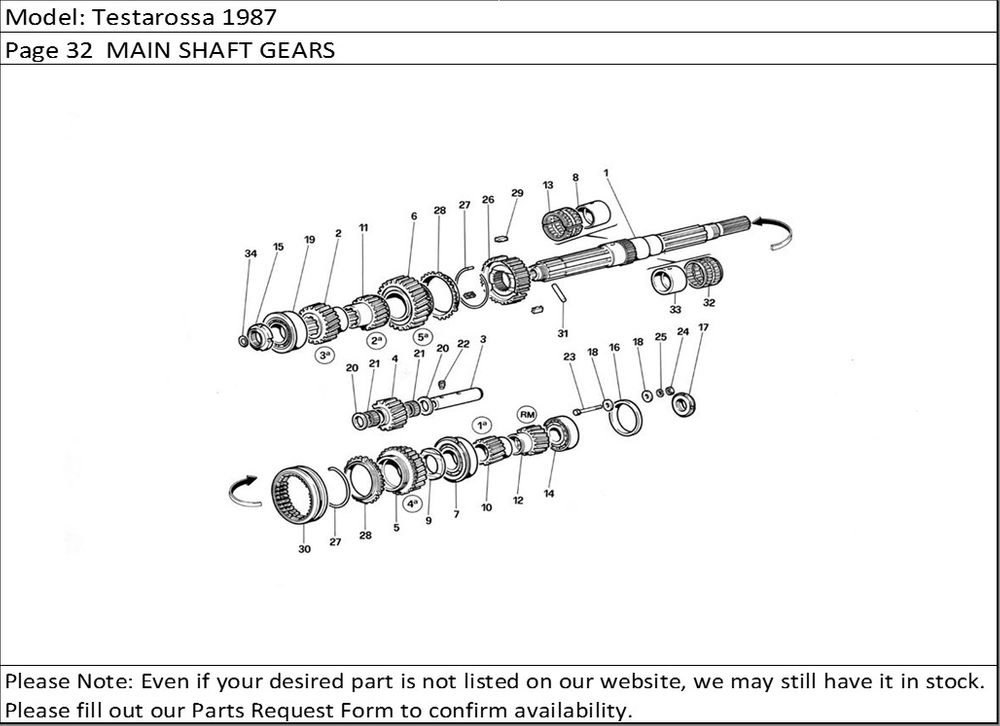

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 109716 | Main shaftModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 1 | 109716 | Main shaftModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 2 | 123120 | 3rd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
| 2 | 123120 | 3rd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
| 3 | 109768 | Pin for reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 3 | 109768 | Pin for reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 4 | 119804 | Reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 4 | 119804 | Reverse idle gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 5 | 123127 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 5 | 123127 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included.Until gearbox no. 1466 | 1 |
| 5 | 132146 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting from gearbox no. 1467 | 1 |
| 5 | 132146 | 4th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 6 | 132154 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 6 | 123128 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 6 | 132154 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting gearbox no. 1467 | 1 |
| 6 | 123128 | 5th speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Until gearbox no. 1466 | 1 |
| 7 | 103030 | Center roller bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 7 | 103030 | Center roller bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 8 | 107499 | 5th speed straight raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 8 | 107499 | 5th speed straight raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 9 | 110173 | SpacerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 9 | 110173 | SpacerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 10 | 119792 | 1st speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 10 | 119792 | 1st speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 11 | 119793 | 2nd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 11 | 119793 | 2nd speed gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 12 | 119797 | Reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 12 | 119797 | Reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 13 | 109002 | Double row roller cage for 5th gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 13 | 109002 | Double row roller cage for 5th gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 14 | 126234 | Bearing axle sideModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. To exhaustion use no. 103990 | 1 |
| 14 | 126234 | Bearing axle sideModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 15 | 104713 | Front ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 15 | 104713 | Front ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 16 | 105765 | Bearing stop ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 16 | 105765 | Bearing stop ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 17 | 105764 | Rear ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 17 | 105764 | Rear ring nutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 18 | 104731 | Bearing lock washerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
| 18 | 104731 | Bearing lock washerModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
| 19 | 103042 | Front bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 19 | 103042 | Front bearingModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 20 | 100703 | ShimModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
| 20 | 100703 | ShimModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
| 21 | 104734 | Roller cage for reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
| 21 | 104734 | Roller cage for reverse gearModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
| 22 | 103035 | Grub screwModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 22 | 103035 | Grub screwModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 23 | 10903221 | BoltModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 23 | 10903221 | BoltModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 24 | 15896221 | NutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 24 | 15896221 | NutModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 25 | 106850 | WasherModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 25 | 106850 | WasherModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 26 | 106046 | Syncronizer bodyModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 26 | 106046 | Syncronizer bodyModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 27 | 108363 | Spring ring for insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
| 27 | 108363 | Spring ring for insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 2 |
| 28 | 131799 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 28 | 106048 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 2 |
| 28 | 106048 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Until gearbox no. 1466 | 2 |
| 28 | 131799 | Synchromesh ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting from gearbox no. 1467 | 1 |
| 29 | 126201 | Synchronizer insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 3 |
| 29 | 126201 | Synchronizer insertModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 3 |
| 30 | 131801 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Starting from gearbox no. 1467 | 1 |
| 30 | 106051 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included. Until gearbox no. 1466 | 1 |
| 30 | 106051 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 30 | 131801 | Synchronizer sleeveModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 31 | 109725 | Paralell pinModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 31 | 109725 | Paralell pinModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 32 | 107525 | 4th speed roller cageModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 32 | 107525 | 4th speed roller cageModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 33 | 107524 | 4th speed roller raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 33 | 107524 | 4th speed roller raceModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 34 | 109724 | Seal ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, an | 1 |
| 34 | 109724 | Seal ringModified from gearbox no. 1467 and previously used in these gearboxes: from no. 1222 to no. 1235, and from no. 1328 to no. 1332 included | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
