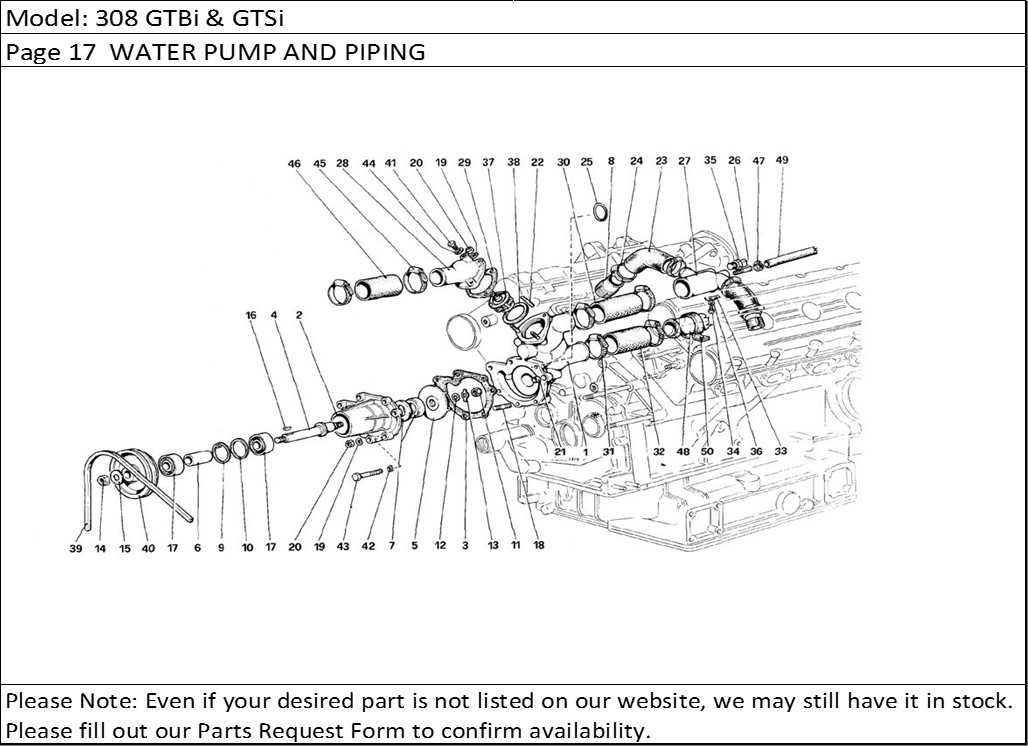

308 GTBi & GTSi Page 17 WATER PUMP AND PIPING
Product Description
308 GTBi & GTSi Page 17 WATER PUMP AND PIPING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 115470 | Corpo pojnpa acquaCol complessivo n. 115471 | 1 |
| 1 | 121255 | Water Pump Complete Front Cover | 1 |
| 1 | 115472 | Pompa acqua completa | 1 |
| 1 | 116173 | Pompa acqua completa (parte ant.) | 1 |
| 1 | 115471 | Corpo pompa acqua complete | 1 |
| 2 | 116156 | Coperchio pompa | 1 |
| 3 | 103952 | Guarnizione | 1 |
| 4 | 103795 | Alberino per puleggia | 1 |
| 5 | 103806 | Girante | 1 |
| 6 | 116157 | Distanziale | 1 |
| 7 | 100433 | Anello di tenutaIn alternative n. 114410 | 1 |
| 8 | 115246 | Raccordo | 2 |
| 9 | 11060076 | Anello seeger | 1 |
| 10 | 116158 | Rondella | 1 |
| 11 | 100436 | Dado cieco | 1 |
| 12 | 10730301 | Rondella | 1 |
| 13 | 100434 | Piastrina | 1 |
| 14 | 16101521 | Dado | 1 |
| 15 | 11198671 | Rondella conica | 1 |
| 16 | 10205820 | Linguetta | 1 |
| 17 | 116159 | Cuscinetto a tenuta | 2 |
| 18 | 11500721 | THREADED STUD | 3 |
| 19 | 12601271 | Rondella ondulata | 6 |
| 20 | 12574211 | Dado | 6 |
| 21 | 102704 | Grano | 2 |
| 22 | 11500421 | THREADED STUD | 3 |
| 23 | 115247 | Manicotto | 2 |
| 24 | 102958 | Fascetta | 4 |
| 25 | 105196 | Anello di tenuta | 1 |
| 26 | 106241 | Raccordo | 1 |
| 27 | 115248 | Raccordo uscita acqua dalle teste | 1 |
| 28 | 105165 | Bocchettone uscita acqua | 1 |
| 29 | 105189 | Guarnizione | 1 |
| 30 | 115936 | Manicotto | 1 |
| 31 | 102958 | Fascetta | 4 |
| 32 | 102957 | Manicotto | 1 |
| 33 | 115600 | Linguetta | 1 |
| 34 | 10374701 | Vite | 1 |
| 35 | 104628 | Termistore acqua | 1 |
| 36 | 10569071 | Rondella | 1 |
| 37 | 109671 | Termostato | 1 |
| 38 | 105192 | Guarnizione | 1 |
| 39 | 117435 | Cinghia comando pompa acqua e alternatore | 1 |
| 40 | 105166 | Puleggia | 1 |
| 41 | 16042940 | Vite | 1 |
| 42 | 12601371 | Rondella | 4 |
| 43 | 16044421 | Vite fissaggio corpo pompa | 4 |
| 44 | 10260060 | Guarnizione | 1 |
| 45 | 12174090 | Fascetta | 2 |
| 46 | 102957 | Manicotto | 1 |
| 47 | 104879 | Fascetta | 2 |
| 48 | 115136 | Tubo | 1 |
| 49 | 115636 | Tubo sfiato collegamento motore nourrice | 1 |
| 50 | 107002 | Fascetta sostegno tubo | 1 |
