308 GTBi & GTSi Page 18 CLUTCH AND CONTROLS
Product Description

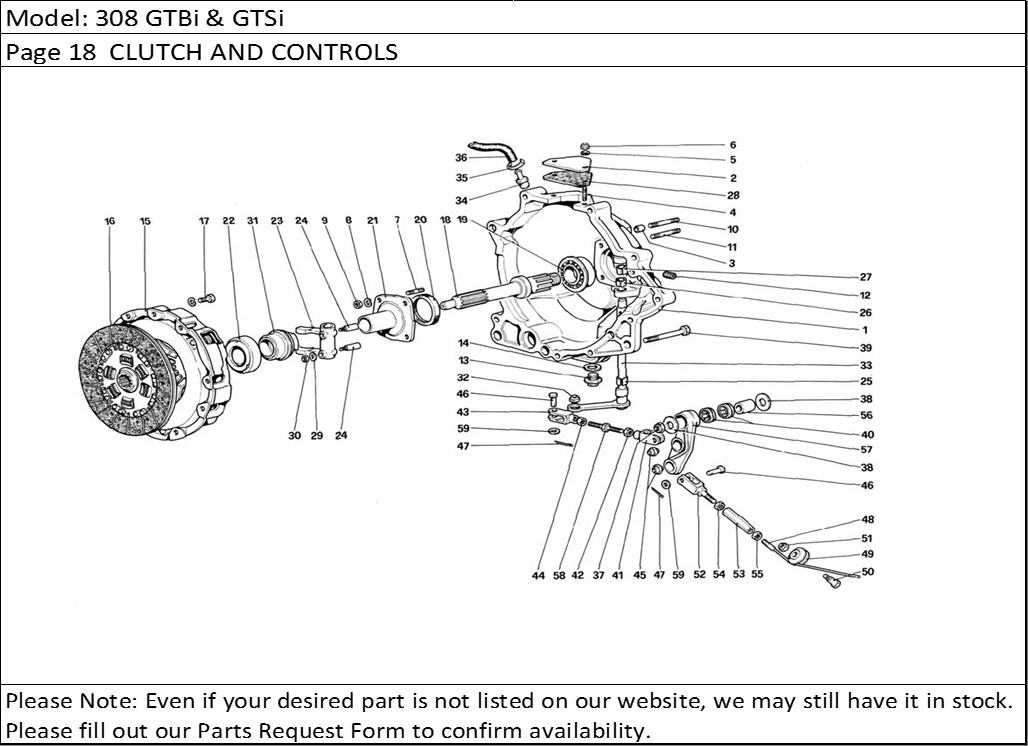

308 GTBi & GTSi Page 18 CLUTCH AND CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 116801 | Campana frizione completa | 1 |
| 1 | 116377 | Campana frizioneCol complessivo N. 116801 | 1 |
| 2 | 109404 | Coperchio ispezione | 1 |
| 3 | 102704 | Grano di centraggio coperchio | 2 |
| 4 | 13539021 | Prigion''rero | 2 |
| 5 | 12601171 | Rondella | 2 |
| 6 | 15896411 | Dado | 2 |
| 7 | 13516521 | THREADED STUD | 4 |
| 8 | 106852 | Rondella . | 4 |
| 9 | 16102311 | Dado | 4 |
| 10 | 13517621 | THREADED STUD | 2 |
| 11 | 13517521 | THREADED STUD | 8 |
| 12 | 14326150 | Tappo | 1 |
| 13 | 14326540 | Tappo scarico olio | 1 |
| 14 | 10279560 | Guarnizione | 1 |
| 15 | 115451 | Spingidisco frizione | 1 |
| 15 | 115452 | Frizione 9" 1/2 (Non a ricambio ) | 1 |
| 16 | 110296 | Disco frizione | 1 |
| 17 | 13825821 | Bullone | 6 |
| 18 | 109400 | Albero frizione | 1 |
| 19 | 103042 | Cuscinetto | 1 |
| 20 | 110314 | Anello paraolio | 1 |
| 21 | 105136 | Flangia con manicotto | 1 |
| 22 | 100849 | Cuscinetto reggispinta | 1 |
| 23 | 108428 | Leva comando frizioneCon I''assieme n. 116327 | 1 |
| 24 | 108429 | Spina | 2 |
| 25 | 103226 | Boccola esterna | 1 |
| 26 | 103227 | Boccola interna | 1 |
| 27 | 106500 | Boccola interna | 1 |
| 28 | 109405 | Guarnizione per coperchietto | 1 |
| 29 | 108430 | Rondella | 2 |
| 30 | 12574121 | Dado | 2 |
| 31 | 116326 | Boccola porta cuscinetto | 1 |
| 32 | 100860 | Snodo sferico | 1 |
| 33 | 116327 | Assieme leva e alberino comando frizione | 1 |
| 34 | 115463 | Raccordo per sfiato | 1 |
| 35 | 102604 | Fascetta | 1 |
| 36 | 115366 | Tubo sfiato | 1 |
| 37 | 16105121 | Dado | 1 |
| 38 | 108939 | Distanziale per lave rinvio | 2 |
| 39 | 15541121 | Vite | 1 |
| 40 | 103223 | Gabbia a rullini | 2 |
| 41 | 100855 | Forcella filesso Sx. | 1 |
| 42 | 100862 | Dado filetto Sx. | 1 |
| 43 | 103238 | Forcella | 1 |
| 44 | 100861 | Controdado | 2 |
| 45 | 100860 | Snnodo sferico | 2 |
| 46 | 103218 | Perno | 3 |
| 47 | 10734201 | Copiglia | 3 |
| 48 | 106745 | Cavo comando frizione | 1 |
| 49 | 105665 | Carrucola | 1 |
| 50 | 10902621 | Bullone | 1 |
| 51 | 12575411 | Dado | 1 |
| 52 | 106579 | Forcellino | 1 |
| 53 | 10091011 | Manicotto di registro | 1 |
| 54 | 10725911 | Controdado | 1 |
| 55 | 10727311 | Controdado (filetto Sx.) | 1 |
| 56 | 107437 | Boccola per leva rinvio | 1 |
| 57 | 116472 | Leva rinvio comando frizione | 1 |
| 58 | 116329 | Tirante registro | 1 |
| 59 | 12639701 | Rondella | 3 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
