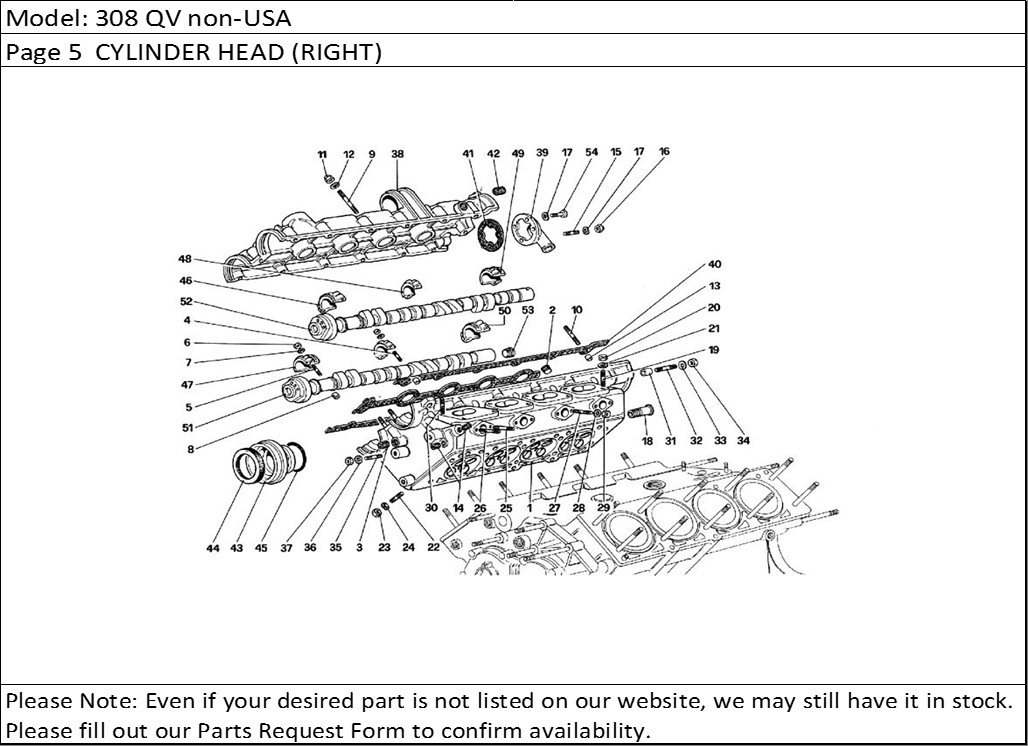

308 QV non-USA Page 5 CYLINDER HEAD (RIGHT)
Product Description
308 QV non-USA Page 5 CYLINDER HEAD (RIGHT)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 111917 | Right cylinder head complete | 1 |
| 1 | 117749 | Right cylinder head With assembly no.111917 | 1 |
| 2 | 127635 | Plug | 5 |
| 3 | 13526070 | Heli - coil | 1 |
| 4 | 102735 | Stud for intermediate caps | 12 |
| 5 | 102754 | Stud for outer caps | 8 |
| 6 | 15896211 | Nut | 20 |
| 7 | 11197773 | Washer | 20 |
| 8 | 102725 | Dowel | 20 |
| 9 | 13541621 | Stud | 12 |
| 10 | 13541721 | Stud | 2 |
| 11 | 100044 | Selflocking nut | 14 |
| 12 | 11197771 | Washer | 14 |
| 13 | 102725 | Dowel | 2 |
| 14 | 14326610 | Plug | 3 |
| 15 | 11500521 | Stud | 2 |
| 16 | 12575411 | Nut | 2 |
| 17 | 12601271 | Washer | 4 |
| 18 | 106227 | Nipple for heater | 1 |
| 19 | 13543321 | Stud | 8 |
| 20 | 16100811 | NutIn alternative no.124525 | 10 |
| 21 | 11198071 | WasherFor part no. 105938 | 10 |
| 22 | 12354521 | Stud Securing exhaust manifold | 8 |
| 23 | 105938 | Nut | 8 |
| 24 | 10516671 | Washer | 8 |
| 25 | 13541621 | Short stud | 3 |
| 26 | 13541721 | Long stud | 4 |
| 27 | 13541821 | Stud for water manifold | 1 |
| 28 | 11197773 | Washer | 8 |
| 29 | 15896211 | Nut | 8 |
| 30 | 13543521 | Stud for fixing suction manifold (front part) | 2 |
| 31 | 102725 | Dowel | 2 |
| 32 | 11500521 | Stud for fixing calotte support | 2 |
| 33 | 11197773 | Washer | 2 |
| 34 | 15896211 | Nut | 2 |
| 35 | 13543321 | Stud | 3 |
| 36 | 12601371 | Washer | 3 |
| 37 | 16104411 | Nut | 3 |
| 38 | 111564 | Head cover, completeWith complete cylinder | 1 |
| 38 | 117220 | Right head coverWith complete cover | 1 |
| 39 | 103808 | End cover with blow - by inlet | 1 |
| 40 | 117263 | Gasket | 1 |
| 41 | 103809 | GasketOn exhaustion no. 119067 | 1 |
| 42 | 13525470 | Heli - coil | 3 |
| 43 | 117257 | Front cover | 1 |
| 44 | 105389 | Sealing ring | 2 |
| 45 | 117275 | Sealing ring | 2 |
| 46 | 117039 | Front cap inlet side | 1 |
| 47 | 117040 | Front cap exhaustion sideWith complete cylinder head | 1 |
| 48 | 117043 | Intermediate capWith complete cylinder head | 6 |
| 49 | 117044 | Rear cap inlet sideWith complete cylinder head | 1 |
| 50 | 117045 | Rear cap exhaust sideWith complete cylinder head | 1 |
| 51 | 117125 | Right exhaust camshaftWith assembly no.117235 | 1 |
| 51 | 117235 | Right exhaust camshaft, complete | 1 |
| 52 | 117932 | Right intake camshaftWith assembly no. 117933 | 1 |
| 52 | 117933 | Right intake camshaft, complete | 1 |
| 53 | 10269750 | Plug | 1 |
| 54 | 10902221 | Screw | 2 |
