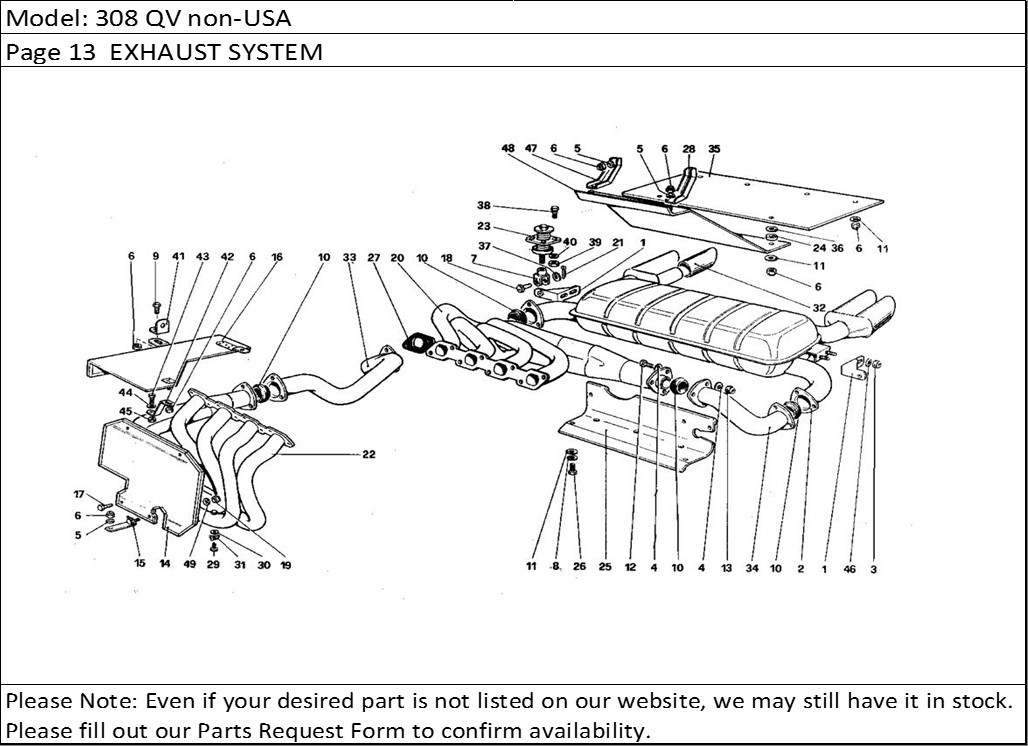

308 QV non-USA Page 13 EXHAUST SYSTEM
Product Description
308 QV non-USA Page 13 EXHAUST SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 108290 | Bracket | 2 |
| 2 | 118353 | Exhaust silencerFor CH use no. 120703 | 1 |
| 3 | 114748 | Nut | 4 |
| 4 | 10519601 | Washer | 24 |
| 5 | 12643701 | Washer | 10 |
| 6 | 116416 | Nut | 10 |
| 7 | 108257 | Fork on buffer | 2 |
| 8 | 106850 | Washer | 14 |
| 9 | 10902121 | Screw | 3 |
| 10 | ------ | Gasket | 4 |
| 11 | 106744 | Washer | 10 |
| 12 | 119632 | Screw | 12 |
| 13 | 114748 | Nut | 12 |
| 14 | 118632 | Protection plate | 1 |
| 15 | 118786 | Bracket | 1 |
| 16 | 118612 | Protection plate | 1 |
| 17 | 10902121 | Screw | 1 |
| 18 | 10033411 | Pin | 2 |
| 19 | 15896211 | Nut | 7 |
| 20 | 118156 | Rear exhaust manifoldFor CH use no. 120640 | 1 |
| 21 | 10796401 | Split | 2 |
| 22 | 118155 | Front exhaust manifoldFor CH use no. 120639 | 1 |
| 23 | 106052 | Buffer for supporting silencer | 2 |
| 24 | 119201 | Spacer | 2 |
| 25 | 118773 | Lower conveyor for air to manifold | 1 |
| 26 | 10902021 | Screw | 4 |
| 27 | 111532 | Gasket | 8 |
| 28 | 118603 | Bracket | 1 |
| 29 | 110860 | Plug | 8 |
| 30 | 10298460 | Washer | 8 |
| 31 | 14198901 | Plate | 8 |
| 32 | 118774 | Terminal | 4 |
| 33 | 118157 | Intermediate pipe from front manifold to muffler | 1 |
| 34 | 118158 | Intermediate pipe from rear manifold to muffler | 1 |
| 35 | 119200 | Protection plate | 1 |
| 36 | 105924 | Washer spacer | 2 |
| 37 | 103167 | Washer | 2 |
| 38 | 10977621 | Screw | 8 |
| 39 | 15896411 | Nut | 8 |
| 40 | 106849 | Washer | 8 |
| 41 | 118618 | Bracket | 1 |
| 42 | 118619 | Bracket | 1 |
| 43 | 16043421 | Bolt | 1 |
| 44 | 106852 | Washer | 1 |
| 45 | 16100811 | Nut | 1 |
| 46 | 10519601 | Washer | 4 |
| 47 | 118602 | Bracket | 2 |
| 48 | 118495 | Protection plate | 1 |
| 49 | 12643701 | Washer | 4 |
