308 QV non-USA Page 16 COOLING SYSTEM
Product Description

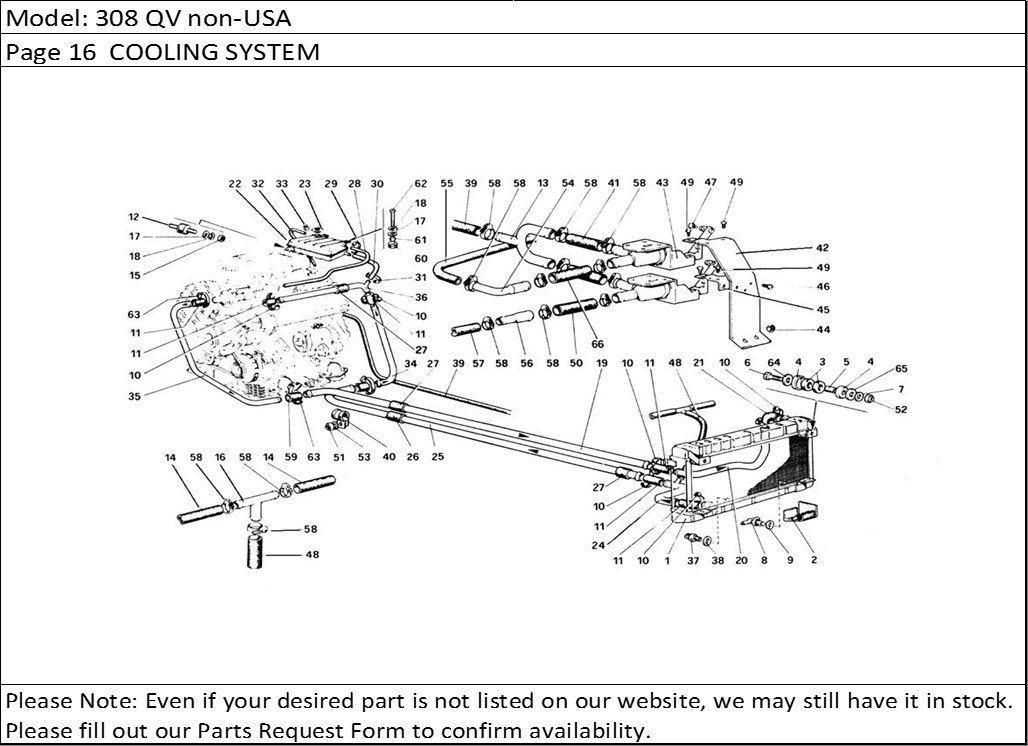

308 QV non-USA Page 16 COOLING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 116286 | Water radiator | 1 |
| 2 | 107782 | Rubber shim, vibration damping | 2 |
| 4 | 107979 | Cup | 4 |
| 5 | 107980 | Spacer | 2 |
| 6 | 16043821 | Bolt | 2 |
| 7 | 112761 | Washer | 2 |
| 8 | 101488 | Water drain cock | 1 |
| 9 | 101496 | Gasket | 1 |
| 10 | 12177090 | Clamp | 18 |
| 11 | 102957 | Sleeve | 6 |
| 12 | 102947 | Vibration damping support | 1 |
| 13 | 116319 | 3 - way union | 1 |
| 14 | 122224 | Pipe, heaters to 3 - way union | 1 |
| 15 | 15896211 | Nut | 1 |
| 16 | 104303 | 3 - way unionFor GD vale no. 116713 | 1 |
| 17 | 12643701 | Washer | 3 |
| 18 | 106850 | Washer | 3 |
| 19 | 108081 | Central pipe delivery to radiatorFor GD use no. 108082 | 2 |
| 20 | 109369 | Front pipe delivery to radiatorFor GD use no. 109503 | 1 |
| 21 | 102956 | Sleeve | 1 |
| 22 | 116589 | Expansion tankFrom chassis no. 44159 GS - 43961 GD, use no. 120273 | 1 |
| 23 | 101499 | Plug for tank | 1 |
| 24 | 109370 | Return pipeFront | 1 |
| 25 | 108082 | Return pipeCentral | 1 |
| 26 | 107465 | Vibration damping sleeve | 1 |
| 27 | 105385 | Vibration damping sleeve | 3 |
| 28 | 122218 | Breather pipeEngine to water reservoir | 1 |
| 29 | 12179490 | Clamp | 2 |
| 30 | 122221 | Feeding pipeExpansion tank to engine | 1 |
| 31 | 12179990 | Clamp | 2 |
| 32 | 126292 | Breather pipe | 1 |
| 33 | 13423379 | Strap | 1 |
| 34 | 118795 | Rear pipe LHFor GD use no. 120497 | 1 |
| 35 | 108053 | Rear pipe RH | 1 |
| 35 | 108042 | Rear pipe RHFor GD use no. 108053 | 1 |
| 36 | 115136 | Pipe between heads | 1 |
| 37 | 101507 | Temperature sensitie switch | 1 |
| 38 | 101508 | Gasket | 1 |
| 39 | 106699 | PipeEngine to 3 - way union | 1 |
| 40 | 107002 | Strap | 1 |
| 41 | 116680 | SleeveFor GD use no. 117989 | 2 |
| 42 | 116320 | Bracket for upper valveFor GD use no. 116708 | 1 |
| 43 | 110066 | Water valve for heater | 2 |
| 44 | 12574211 | Nut | 2 |
| 45 | 116321 | Bracket for lower valve | 1 |
| 46 | 110105 | Screw | 2 |
| 47 | 110105 | Screw | 2 |
| 48 | 109755 | Pipe3 - way union to return pipe | 1 |
| 49 | 110105 | Screw | 4 |
| 50 | 110277 | SleeveFor GD use no. 116680 | 1 |
| 51 | 12574221 | Nut | 1 |
| 52 | 16104411 | Nut | 2 |
| 53 | 12643701 | Washer | 1 |
| 54 | 116322 | Pipe 90? | 1 |
| 55 | 122225 | Pipe to left heater | 1 |
| 56 | 116323 | Pipe | 1 |
| 57 | 122234 | Pipe to right heater | 1 |
| 58 | 12179590 | Strap | 20 |
| 59 | 105190 | Sleeve | 1 |
| 60 | 103549 | Vibration damping bushing | 2 |
| 61 | 103550 | Spacer | 2 |
| 62 | 10902421 | Screw | 2 |
| 63 | 12177090 | Strap | 4 |
| 64 | 108292 | Washer | 2 |
| 65 | 112761 | Washer | 2 |
| 66 | 110277 | SleeveFor GD use no. 117989 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
