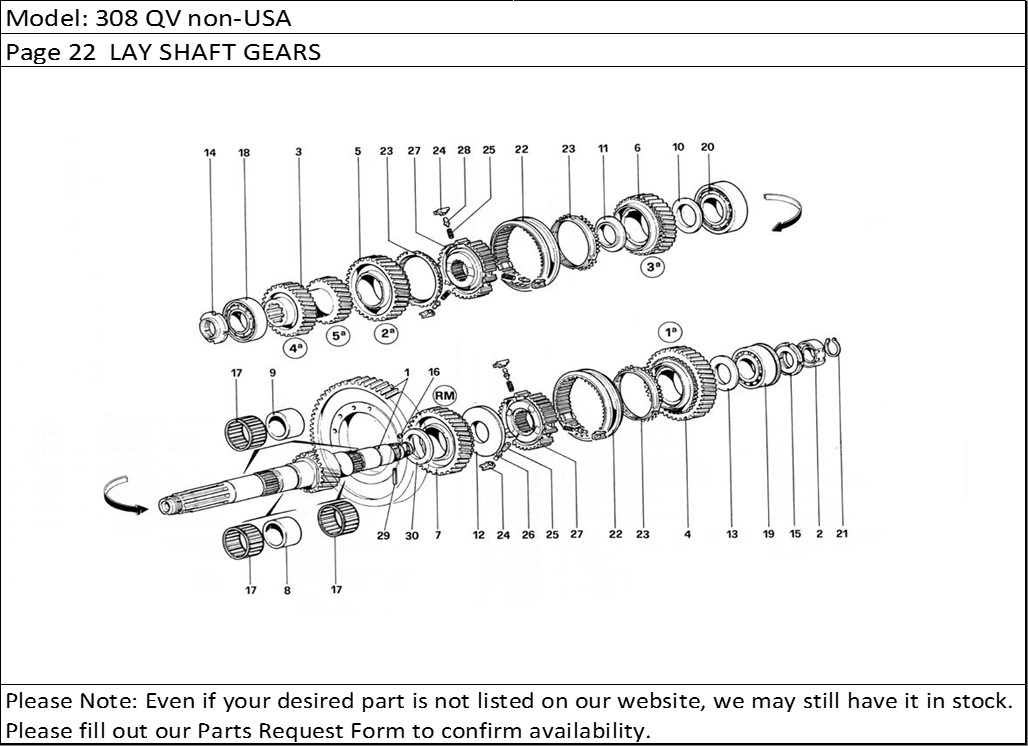

308 QV non-USA Page 22 LAY SHAFT GEARS
Product Description
308 QV non-USA Page 22 LAY SHAFT GEARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 119741 | LayshaftWith assembly no. 119748 | 1 |
| 1 | 119761 | LayshaftWith assembly no. 119763 | 1 |
| 1 | 119763 | Crown and pinion , completeCH excluded | 1 |
| 1 | 119748 | Crown and pinion , completeCH only | 1 |
| 2 | 116352 | Disc for pulse generator | 1 |
| 3 | 119742 | Gear, 4th - 5th speedsCH only | 1 |
| 3 | 119707 | Gear, 4th ? 5th speedsCH excluded | 1 |
| 4 | 119715 | Gear, 1st speedCH excluded | 1 |
| 4 | 119745 | Gear, 1st speedCH only | 1 |
| 5 | 119716 | Gear, 2nd speed | 1 |
| 6 | 119717 | Gear, 3rd speed | 1 |
| 7 | 119720 | Gear, reverse | 1 |
| 8 | 113083 | Bearing race, 3rd speed | 1 |
| 9 | 113084 | Bearing race, 1st - 2nd speeds | 2 |
| 10 | 104245 | Spacer | 1 |
| 11 | 104246 | Spacer | 1 |
| 12 | 104247 | Spacer | 1 |
| 13 | 104248 | Spacer | 1 |
| 14 | 104252 | Ring nut | 1 |
| 15 | 104253 | Ring nut | 1 |
| 16 | 101611 | Ball for worm screw | 1 |
| 17 | 104254 | Roller cage for 1st, 2nd, 3rd speeds and reserve | 4 |
| 18 | 108656 | Bearing, clutch side | 1 |
| 19 | 103042 | Bearing | 1 |
| 20 | 108657 | Central bearing | 1 |
| 21 | 11067376 | Spring ring | 1 |
| 22 | 106038 | Sleeve for synchronizer | 2 |
| 23 | 106040 | Synchromesh ring | 3 |
| 24 | 106042 | Pad | 6 |
| 25 | 106043 | Spring | 6 |
| 26 | 106044 | Pin | 3 |
| 27 | 106050 | Synchronizer body | 2 |
| 28 | 113412 | Pin | 3 |
| 29 | 13907570 | Pin | 1 |
