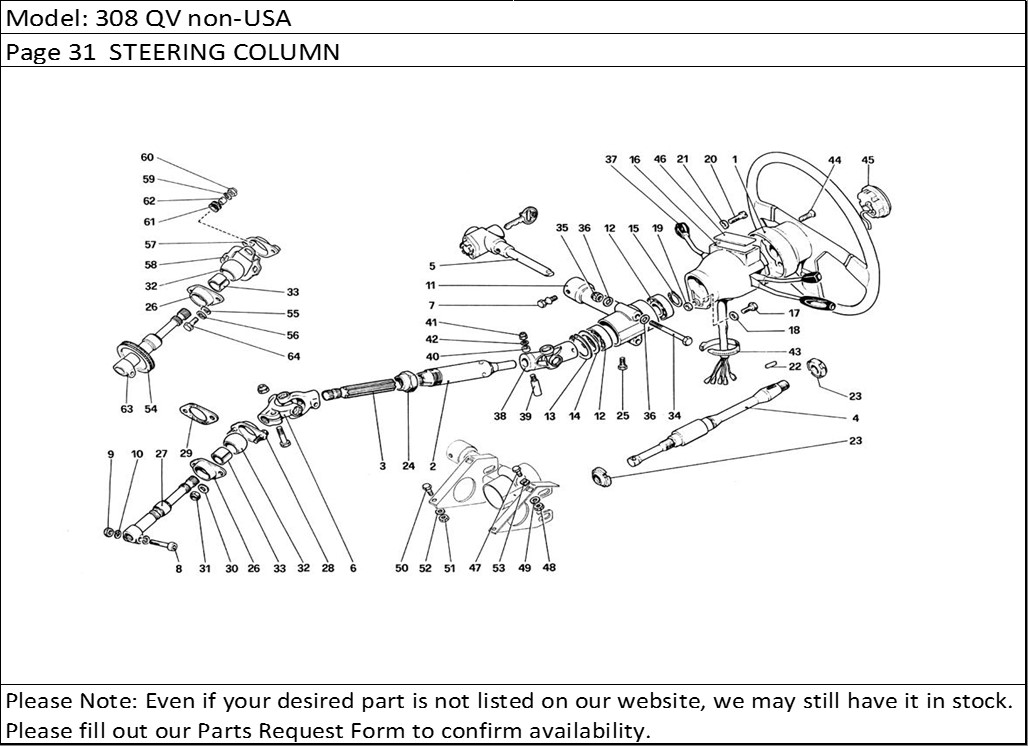

308 QV non-USA Page 31 STEERING COLUMN
Product Description
308 QV non-USA Page 31 STEERING COLUMN
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 119023 | Steering wheel | 1 |
| 2 | 108735 | Guide tubeOn exhaustion use no, ,117379 | 1 |
| 3 | 108737 | Steering shaft | 1 |
| 4 | 108413 | Upper shaft | 1 |
| 5 | 106614 | Anti-theft device | 1 |
| 6 | 108362 | Universal jointOptional n. 103343 | 1 |
| 7 | 106615 | Bolt | 1 |
| 8 | 125518 | Bolt | 1 |
| 9 | 125519 | Nut | 1 |
| 10 | 12601271 | Washer | 2 |
| 11 | 106611 | Support steering column and anti - theft device | 1 |
| 12 | 101104 | Bearing | 2 |
| 13 | 11060576 | Seeger ring | 1 |
| 14 | 101101 | Shim, thickness 0,5 mmPossible fitting | 1 |
| 14 | 107488 | Shim, thickness 0,4 mmPossible fitting | 1 |
| 14 | 107489 | Shim, thickness 0,3 mmPossible fitting | 1 |
| 14 | 107490 | Shim, thickness 0,2 mm.Possible fitting | 1 |
| 15 | 11067376 | Seeger ring | 1 |
| 16 | 120429 | Commutator housing | 1 |
| 17 | 10902221 | Bolt | 1 |
| 18 | 12601271 | Washer | 1 |
| 19 | 12639701 | Spacer | 1 |
| 20 | 10389901 | Screw | 2 |
| 21 | 12544171 | Spring washer | 2 |
| 22 | 101106 | Key | 1 |
| 23 | 106610 | Ring nut | 2 |
| 24 | 106870 | Adjust nut | 1 |
| 25 | 10979421 | Bolt | 1 |
| 26 | 103292 | Lower flangeUp to chassis no. | 1 |
| 27 | 107308 | Pinion extensionUp to chassis no. | 1 |
| 28 | 105667 | Flange for upper ball jointUp to chassis no. | 1 |
| 29 | 109173 | GasketUp to chassis no. | 1 |
| 30 | 16104121 | NutUp to chassis no. | 2 |
| 31 | 10519621 | WasherUp to chassis no. | 2 |
| 32 | 103297 | Ball joint | 1 |
| 33 | 103370 | Bushing | 1 |
| 34 | 103576 | Bolt | 2 |
| 35 | 16104421 | Nut | 2 |
| 36 | 10519621 | Washer | 4 |
| 37 | 118303 | Mainswitch | 1 |
| 38 | 112572 | Universal joint | 1 |
| 39 | 112573 | Pin | 2 |
| 40 | 112571 | Spacer | 2 |
| 41 | 12574221 | Nut | 2 |
| 42 | 10519401 | Washer | 2 |
| 43 | 103755 | Strap | 1 |
| 44 | 111189 | Screw | 6 |
| 45 | 101071 | Horn button and retainer | 1 |
| 46 | 120434 | Car identification plateFor GTSno. 120435 | 1 |
| 47 | 10902121 | Screw | 2 |
| 48 | 15896211 | Nut | 2 |
| 49 | 106850 | Washer | 2 |
| 50 | 16043221 | Screw | 2 |
| 51 | 16100811 | Nut | 2 |
| 52 | 106852 | Washer | 2 |
| 53 | 106425 | Plate | 2 |
| 54 | 112466 | Guilding bushFrom chassis no. | 1 |
| 55 | 106850 | WasherFrom chassis no. | 2 |
| 56 | 10519401 | WasherFrom chassis no. | 2 |
| 57 | 123683 | Upper flangFrom chassis no. | 1 |
| 58 | 123682 | Mounting for jointFrom chassis no. | 1 |
| 59 | 12643701 | WasherFrom chassis no. | 2 |
| 60 | 12574211 | NutFrom chassis no. | 2 |
| 61 | 103549 | Anti-vibration rubberFrom chassis no. | 2 |
| 62 | 103550 | BushFrom chassis no. | 2 |
| 63 | 123522 | Pinion extensionFrom chassis no. | 1 |
| 64 | 10902321 | BoltFrom chassis no. | 2 |
