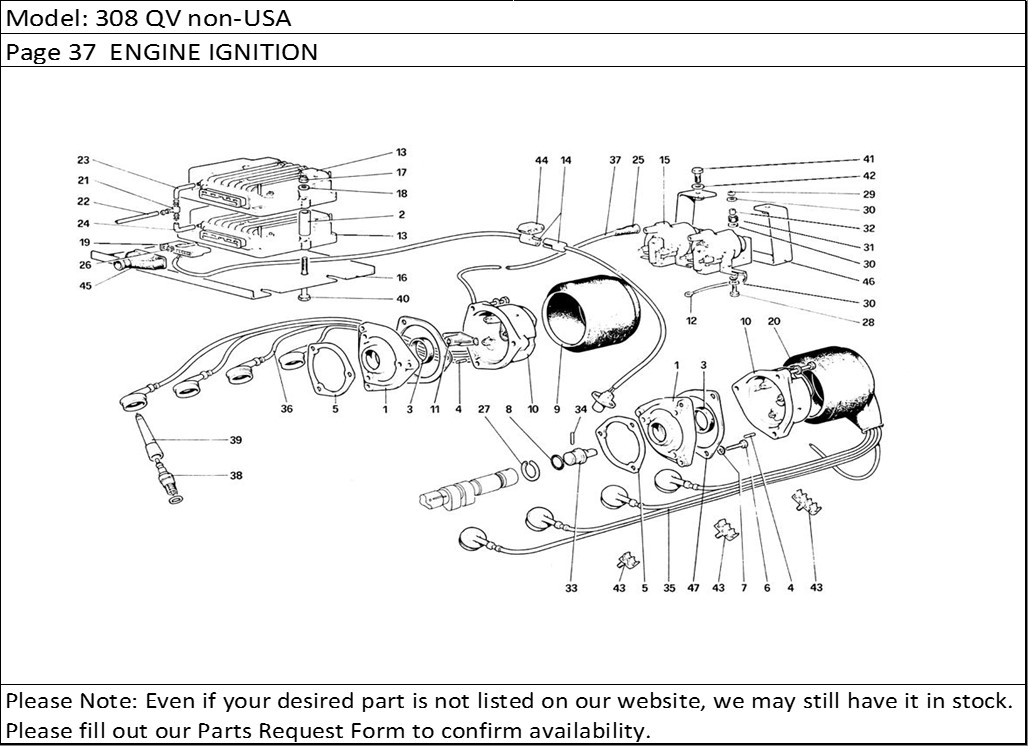

308 QV non-USA Page 37 ENGINE IGNITION
Product Description
308 QV non-USA Page 37 ENGINE IGNITION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | HT021 | Complete HT Leads Set | 1 |
| 1 | 119399 | Cap distributor support | 1 |
| 3 | 117293 | Sealing ring | 2 |
| 4 | 10331111 | Dowel | 2 |
| 5 | 117261 | Gasket | 2 |
| 6 | 10902321 | Screw | 2 |
| 7 | 11197771 | Washer | 2 |
| 8 | 109478 | Sealing ring | 2 |
| 9 | 112043 | R.H. distributor boot | 1 |
| 10 | 115518 | Distributor cap | 2 |
| 11 | 124288 | Rotor arm | 2 |
| 12 | 115648 | Copper braid for ignition coil earth | 1 |
| 13 | 118451 | Electronic ignition moduleFor CH use no. 113961 | 2 |
| 14 | 119052 | Electromagnetic sensorTo engine no. 863 use no. 115019 | 3 |
| 15 | 115013 | Coils | 2 |
| 16 | 117555 | Plate | 1 |
| 17 | 12574211 | Nut | 6 |
| 18 | 12601271 | Washer | 6 |
| 19 | 115598 | 1 1 way block | 2 |
| 20 | 110626 | L.H. distributor boot | 1 |
| 21 | 107440 | 3 way union | 1 |
| 22 | 115665 | Tube from 3 way union to air delivery body | 1 |
| 23 | 117934 | Coupling | 2 |
| 23 | 115866 | Rubber hose | 1 |
| 24 | 115149 | Rubber hose | 1 |
| 25 | 12056986 | Boot | 2 |
| 26 | 60909700 | Small clip of security | 2 |
| 27 | 119484 | Centrifuger ring | 2 |
| 28 | 10302621 | Screw | 3 |
| 29 | 12575411 | Nut | 3 |
| 30 | 12643701 | Washer | 9 |
| 31 | 103549 | Bush, vibration damping | 2 |
| 32 | 103550 | Spacer | 3 |
| 34 | 13899970 | Pin | 2 |
| 35 | 118826 | Cables, left spark plugs | 1 |
| 36 | 118827 | Cables, right spark plugs | 1 |
| 37 | 119356 | Cable, distributor - coil | 2 |
| 38 | 119492 | Spark plugCHAMPION NB GY | 8 |
| 38 | 117599 | Spark plugBOSCH W 6 DS (In alternative) | 8 |
| 39 | 115647 | Extension | 8 |
| 40 | 11032321 | Bolt | 3 |
| 41 | 16043121 | Bolt | 2 |
| 42 | 10615671 | Washer | 2 |
| 43 | 119403 | Small clip for cables supportUp to exhaustion | 2 |
| 43 | 121790 | Small clip for cables supportOn exhaustion no. 119404 | 2 |
| 43 | 121789 | Small clip for cables supportOn exhaustion no. 119403 | 2 |
| 43 | 121788 | Small clip for cables supportOn exhaustion no. 119402 | 5 |
| 43 | 119404 | Small clip for cables supportUp to exhaustion | 2 |
| 43 | 119402 | Small clip for cables supportUp to exhaustion | 4 |
| 44 | 117430 | Cover (white) for sensorP.M. 1-4 | 1 |
| 44 | 117429 | Cover (red) for sensorP.M. 5 - 8 | 1 |
| 45 | 115550 | Protection cover for small block | 2 |
| 46 | 115646 | Backet for coil | 1 |
| 47 | 119409 | Gasket | 2 |
