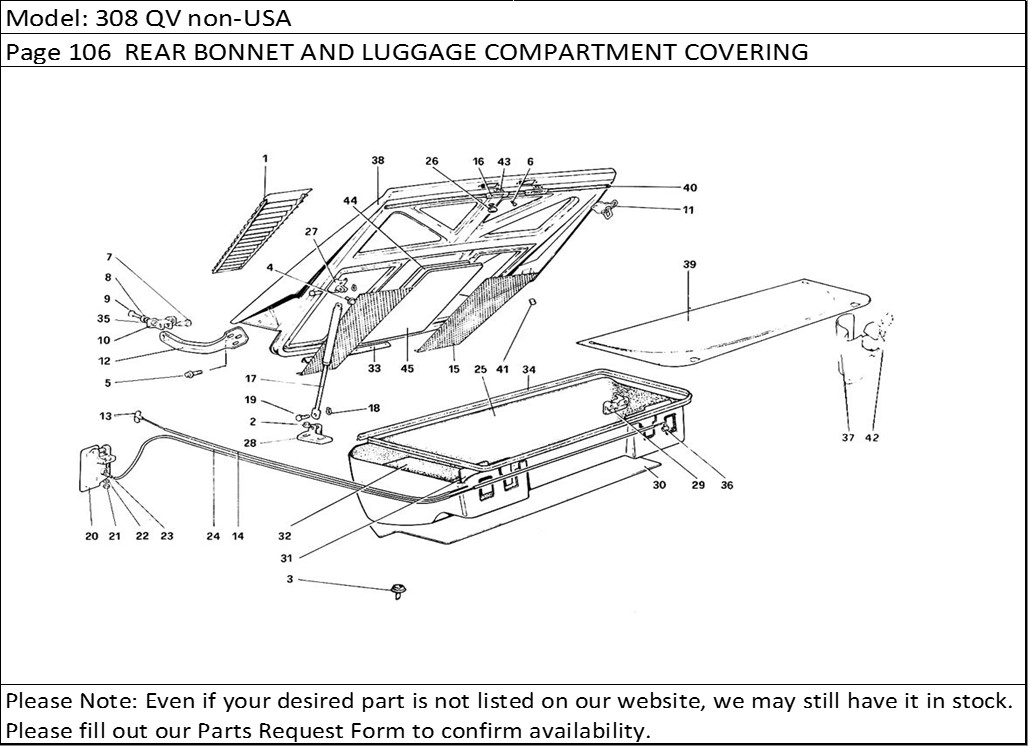

308 QV non-USA Page 106 REAR BONNET AND LUGGAGE COMPARTMENT COVERING
Product Description
308 QV non-USA Page 106 REAR BONNET AND LUGGAGE COMPARTMENT COVERING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60861200 | L.H. grillD oniy | 1 |
| 1 | 60788700 | L.H. grillD excluded | 1 |
| 1 | 60789600 | R.H. grillD excluded | 1 |
| 1 | 60861100 | R.H. grill D only | 1 |
| 2 | 13832101 | Nut | 4 |
| 3 | 60731300 | Plug | 2 |
| 4 | 13835871 | Screw | 4 |
| 5 | 13838971 | Screw | 6 |
| 6 | 20297800 | Screw | 4 |
| 7 | 60017506 | Pin | 2 |
| 8 | 12616701 | Washer | 4 |
| 9 | 16043321 | Screw | 4 |
| 10 | 60257805 | LH. fixed hinge | 1 |
| 10 | 60257706 | R.H. fixed hinge | 1 |
| 11 | 60891000 | Pin | 2 |
| 12 | 60256807 | R.H. mobile hinge | 1 |
| 12 | 60256906 | L.H. mobile hinge | 1 |
| 13 | 60510500 | Safety cable | 1 |
| 14 | 60024502 | Sheath, safety cable | 1 |
| 15 | 60788800 | R.H. net under the grill | 1 |
| 15 | 60788900 | L.H. net under the grill | 1 |
| 16 | 60041906 | Number plate lamps | 2 |
| 17 | 60592800 | Support | 2 |
| 18 | 11087876 | Seeger | 4 |
| 19 | 60599500 | Pin | 4 |
| 20 | 60086105 | Bonnet handle | 1 |
| 21 | 60024601 | Sheath bonnet cable RHD | 1 |
| 21 | 60191509 | Sheath bonnet cable LHD | 1 |
| 21 | 15896411 | Nut | 1 |
| 22 | 10615371 | Washer | 1 |
| 23 | 60277001 | Cable | 1 |
| 25 | 61188900 | Carpet | 1 |
| 26 | 40134108 | Plug | 1 |
| 27 | 60597800 | L.H. bracket | 1 |
| 27 | 60597700 | R.H. bracket | 1 |
| 28 | 60597900 | R.H. brachel | 1 |
| 28 | 60598000 | L.H. bracket | 1 |
| 29 | 60277407 | Lock | 2 |
| 30 | 60131307 | Insulation | 1 |
| 31 | 61138000 | L.H. carpet | 1 |
| 31 | 61137900 | R.H. carpet | 1 |
| 32 | 60778100 | Carpet | 1 |
| 33 | 60218906 | Drip : | 1 |
| 34 | 60286200 | Gasket | 1 |
| 35 | 10615671 | Washer | 4 |
| 36 | 60276607 | Clamp | 2 |
| 37 | 61021000 | Protection | 1 |
| 38 | 60788400 | Bonnet | 1 |
| 39 | 60114808 | Trunk covering | 1 |
| 40 | 60564600 | Gasket | 1 |
| 41 | 60568000 | Rubber piece | 2 |
| 42 | 61020900 | Radio aerial | 1 |
| 43 | 101524 | Lamp | 2 |
| 44 | 61287200 | Upper insulationCH only | 1 |
| 45 | 61287300 | Lower insulationCH only | 1 |
